Bently Nevada 3300 XL 11mm Proximity Sensor – 1m Cable Model 330709-000-230-10-11-05 for Sale

Precision Machinery Protection

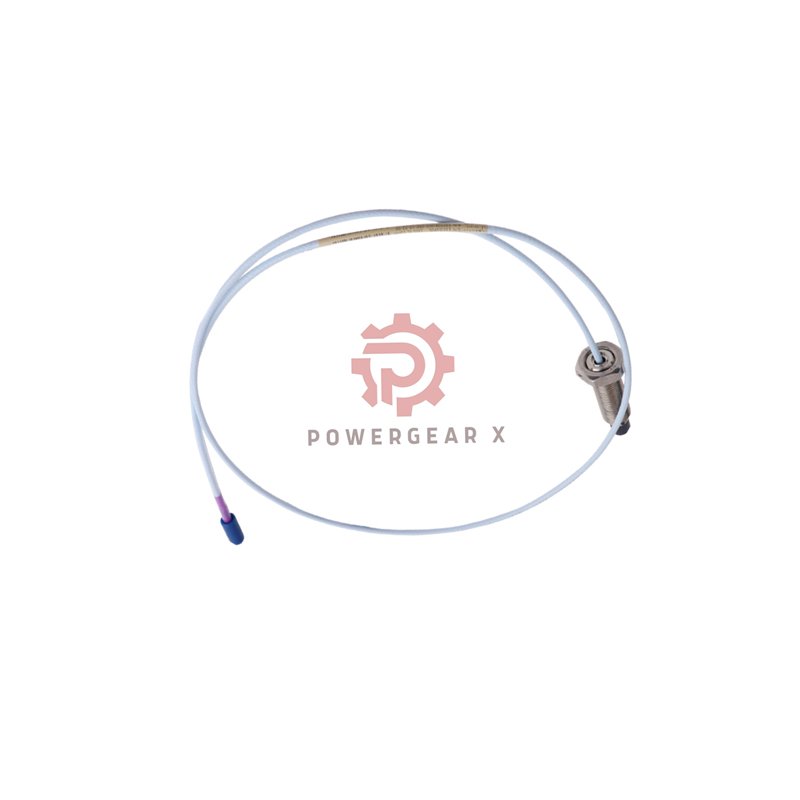

This is the Bently Nevada 330709-000-230-10-11-05. It is a professional 11mm proximity probe from the 3300 XL series. Made in the USA, it delivers exact vibration and position data. This helps protect expensive rotating equipment from damage.

Core Features At a Glance

• Short & Versatile: 1.0-meter cable ideal for compact spaces.
• Fully Protected: Connector protector guards against physical damage.
• Industrial Tough: Stainless steel case and PPS tip resist wear and chemicals.
• Wide Temperature Operation: Works from -52°C to +177°C.
• Globally Certified: Meets multiple international safety standards.

Detailed Technical Specifications

• Brand: Bently Nevada
• Product Type: 3300 XL 11 mm Proximity Probe
• Complete Model Number: 330709-000-230-10-11-05
  • 330709 – Base Model: 11mm Probe, M16x1.5 thread
  • 000 – Unthreaded Length: 0 mm
  • 230 – Case Length: 230 mm
  • 10 – Cable Length: 1.0 metre
  • 11 – Connector: Mini ClickLoc with Protector
  • 05 – Approvals: Multiple Agencies
• Electrical & Signal Data
  • Probe Resistance (1m cable): 5.9 ± 0.5 Ohms
  • Cable Specification: 75 Ω Triaxial, FEP insulation
  • Minimum Target Size: 30.5 mm flat surface
  • Recommended Shaft Size: 152 mm diameter or more
• Physical Build
  • Case Material: AISI 304 Stainless Steel
  • Tip Material: Polyphenylene Sulfide (PPS)
  • Mounting Thread: M16 x 1.5
  • Installation Torque: 21.1 N•m (Recommended)
  • Max Connector Torque: 0.565 N•m (Finger tight)
  • Minimum Cable Bend: 25.4 mm radius
• Environmental Ratings
  • Operating Temperature: -52°C to +177°C
  • Seal Warning: Avoid long periods below -34°C.
  • Safety Standards: Complies with EPL Ga, Gc, and Dc requirements.

Simple Installation Steps

• Clean the mounting hole threads thoroughly.
• Screw in the probe and tighten to 21.1 N•m.
• Attach the cable connector by hand until snug.
• Route the cable without sharp bends.
• Ensure the measured surface is clean and large enough.

Compatibility & Use

This sensor pairs with Bently Nevada 3300 XL monitor systems. It is perfect for tight spaces due to its 1-meter cable. Need an 8mm probe for smaller targets? See our 3300 XL 8mm Proximity Probe.

Ordering & Support Information

• Certifications: Ships with multiple agency approvals.
• Package Includes: One probe with connector protector.
• Quality Promise: Full 12-month product warranty.
• Fast Delivery: We ship worldwide via FedEx, UPS, and DHL.

Professional FAQs

Technical Specifications

• Why is the probe resistance different for a 1m cable?
  A shorter cable has less internal wire length. This lowers the total electrical resistance measured.
• What is the ‘connector protector’ for?
  It is a physical cover. It protects the delicate electrical pins from damage during handling or in dirty areas.

Application & Selection

• Should I choose a 1m, 5m, or 9m cable?
  Pick the shortest cable that reaches your monitor. A 1m cable, like this 330709-000-230-10-11-05, reduces clutter and signal noise in compact panels.
• Can this probe measure axial shaft position?
  No. This model measures radial vibration. You need a different sensor setup for exact axial thrust position.

Purchasing & Service

• What if the probe is damaged during shipping?
  Contact us immediately. We arrange replacements for any items damaged in transit. Our 12-month warranty also covers defects.

Get Your Probe Today

Need the Bently Nevada 330709-000-230-10-11-05 probe? Contact us for pricing and stock.
