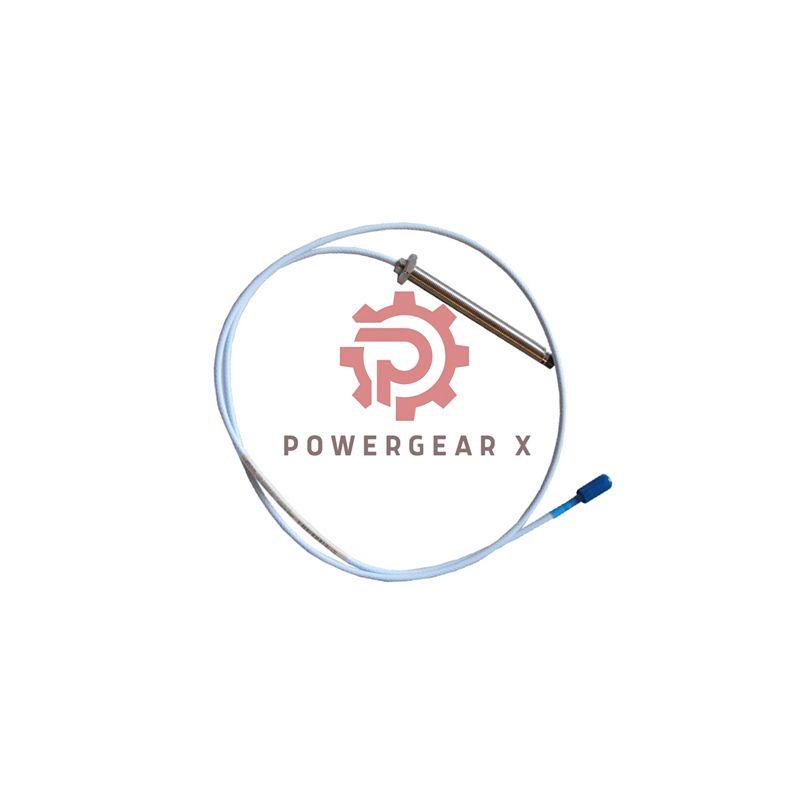

Bently Nevada 3300 XL 8 mm Proximity Probe 330103-00-14-50-02-00

Overview

The 330103-00-14-50-02-00 from Bently Nevada delivers accurate shaft displacement readings in demanding industrial systems.
This 3300 XL 8 mm probe offers stable output and strong durability in harsh environments.

Key Features

• Model: 330103-00-14-50-02-00 uses an 8 mm tip and M10x1 thread for easy mounting.
• Total Length: 5.0 m cable supports long-distance proximitor installation.
• Connector: Miniature ClickLoc ensures tight locking and signal reliability.
• Tip Material: PPS thermoplastic provides heat and chemical resistance.
• Case Material: AISI 303/304 stainless steel resists corrosion in tough conditions.

Technical Specifications

• Brand and Series: Bently Nevada 3300 XL 8 mm Proximity Probe, model 330103-00-14-50-02-00.
• Linear Range: 0.25 to 2.3 mm supports stable measurement near rotating shafts.
• Recommended Gap: -9 Vdc equals ~1.27 mm for radial vibration readings.
• Probe Resistance: 8.73 ± 0.50 Ω for 5 m configuration.
• Wiring: 0.2–1.5 mm² (16–24 AWG) with shielded triad recommended for noise reduction.
• Max Wiring Length: 305 m (1,000 ft) between proximitor and monitor.
• Temperature Range: -52°C to +177°C standard, extended-range options support higher limits.
• Seal System: Viton O-ring protects internal components from pressure differential.
• Probe Mass: 323 g per meter simplifies routing and mounting.

Installation Guide

• Mount with M10x1 thread and limit thread depth to fifteen millimeters.
• Route triad shielded cable away from high current lines to reduce noise.
• Lock the ClickLoc connector firmly before powering up the system.
• Adjust the proximitor gap near -9 Vdc for standard vibration analysis.

Tree: Suffix Breakdown

330103-00-14-50-02-00
 ├─ 00 = Standard configuration, no agency approval
 ├─ 14 = 140 mm case length
 ├─ 50 = 5.0 m probe length for 5 m Proximitor
 └─ 02 = Miniature coaxial ClickLoc connector

Packaging & Shipping

• Package includes one 330103-00-14-50-02-00 probe and a protective cap.
• We ship using FedEx, UPS, or DHL with full tracking.
• Package includes wiring instructions for smooth installation.

FAQ

• Q: How do I confirm a correct ClickLoc connection?
  A: Tighten the connector fully and pull gently to check secure locking.
• Q: Can long field wiring affect readings?
  A: Yes, verify frequency response when wiring exceeds standard distances.
• Q: What maintenance improves long-term stability?
  A: Clean the probe tip regularly and re-check the gap annually.
• Q: Which monitoring unit works best?
  A: Pair with a 3300 XL proximitor for accurate vibration measurement.
• Q: How do I measure probe resistance?
  A: Remove the probe and measure between conductors using a calibrated meter.
