Bently Nevada 3300 XL 8 mm Probe 330103-00-06-05-11-05 Vibration

Product Brief  Bently Nevada 3300 XL Proximity Probe

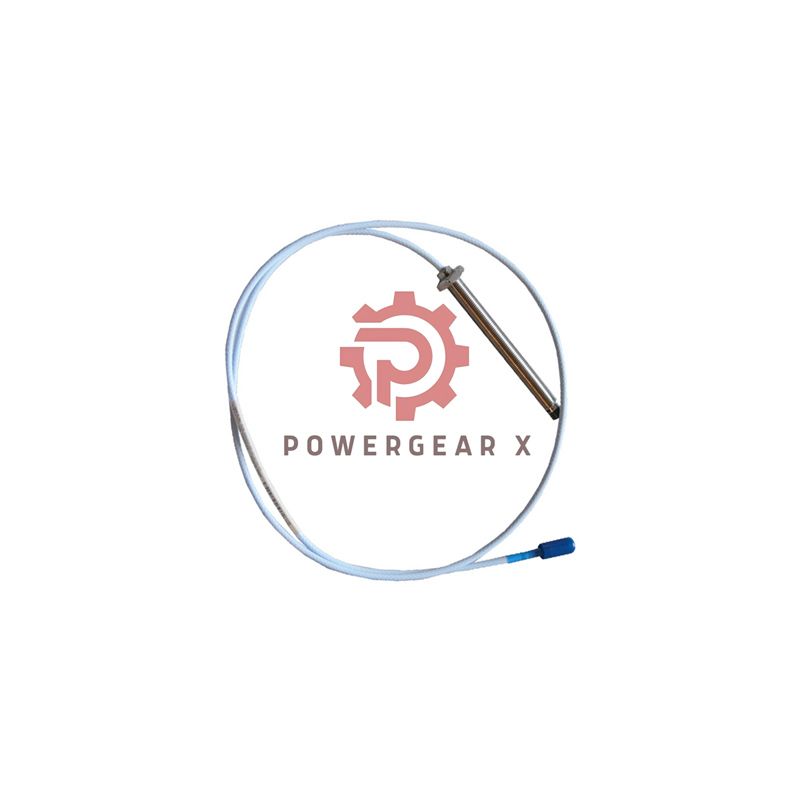

Precision 3300 XL 8 mm Proximity Probe from Bently Nevada, metric configuration with M10 x 1 thread. Engineered for continuous vibration and position monitoring in critical rotating machinery. This 330103-00-06-05-11-05 model combines a durable stainless steel case with a PPS tip, delivering reliable performance in harsh industrial environments. Suitable for radial vibration and thrust position measurements.

Technical Specifications

• Brand & Series Bently Nevada 3300 XL
• Product Number 330103-00-06-05-11-05
• Probe Type 3300 XL 8 mm, metric thread M10x1
• Case & Tip Material AISI 303/304 stainless steel case, PPS tip
• Overall Case Length 60 mm
• Total Length 0.5 meter (1.6 feet) FluidLoc cable
• Connector Miniature coaxial ClickLoc with connector protector
• Linear Range 2 mm (80 mils) from 0.25 to 2.3 mm gap
• Output Slope Nominal 7.87 V/mm (200 mV/mil)
• DC Resistance (RPROBE) 7.45 Ω ±0.50 at 0.5 m length
• Recommended Gap -9 Vdc (approx. 1.27 mm / 50 mils)
• Temperature Range Standard -52°C to +177°C; extended tip up to +218°C
• Pressure Seal Viton O‑ring design; differential pressure sealing
• Humidity Tolerance Less than 3% ASF change after 56 days at 93% humidity

Installation & Wiring

• Field Wiring 0.2 to 1.5 mm² (16‑24 AWG) three‑conductor shielded triad. Maximum cable length 305 m (1000 ft) to Proximitor.
• Thread Engagement Max 15 mm thread engagement depth. Probe case thread M10x1.
• Mounting Torque Hand tighten plus 1/8 turn using a 14 mm wrench; do not overtighten.
• Gap Setting Set to -9 Vdc for radial vibration; use oscilloscope or voltmeter for precise adjustment.
• Target Material Ferromagnetic steel with smooth surface; observe minimum target diameter 16 mm.

Compatibility & System Integration

• Works with 3300 XL Proximitor Sensors (5/8 mm and 8 mm systems).
• Compatible with all Bently Nevada monitors: 3500, 3300, and Trendmaster systems.
• Use with extension cables and standard Proximitor drivers for continuous online monitoring.
• Frequency response graphs available for long cable runs; signal roll‑off at high frequencies must be considered.

Diagnostic Capabilities & Typical Applications

• Radial Vibration Detect shaft relative vibration in turbines, compressors, pumps.
• Axial Position Monitor thrust bearing wear and rotor position.
• Speed & Phase Keyphasor applications for synchronous analysis.
• Eccentricity Measure shaft bow during slow roll.
• Case Expansion Differential expansion monitoring.

Approvals & Certifications

• Agency Approvals CSA, ATEX, IECEx (option code 05).
• Intrinsic Safety Class I, Zone 0: AEx/Ex ia IIC T5…T1 Ga; Class I Groups A,B,C,D; Class II Groups E,F,G; Class III.
• Non‑Incendive Class I, Zone 2: AEx/Ex nA IIC T5…T1 Gc; Class I Div 2 Groups A,B,C,D.
• Temperature Class T1 to T5 depending on ambient (see temperature schedule).

Environmental & Mechanical Data

• Operating Temperature Standard probe -52°C to +177°C. Extended cable/connector up to +260°C.
• Storage Temperature Same as operating; avoid exposure below -34°C to preserve pressure seal.
• Humidity Withstand Tested per IEC 68‑2‑3; average scale factor change <3% after 56 days at 93% RH.
• Weight 323 g/m (approx. 11.4 oz per meter).
• Vibration & Shock Designed for heavy industrial machinery; no performance degradation within specified limits.

Package Contents

• 1x 330103-00-06-05-11-05 probe with 0.5 m integrated FluidLoc cable
• 1x miniature coaxial ClickLoc connector with protector (factory assembled)
• Installation instruction sheet (reference Bently Nevada manual 141452)
• Original packaging with anti‑static protection

Warranty & Shipping

• Warranty 12 months from delivery against defects in materials and workmanship.
• Shipping Fast worldwide delivery via FedEx, UPS, DHL – calculated at checkout.
• Tracking number provided within 24 hours of dispatch.

Frequently Asked Questions (FAQ)

• What is the exact linear range of this probe?Linear range is 2 mm (80 mils), starting at 0.25 mm (10 mils) from target up to 2.3 mm (90 mils). Output approximately -1 to -17 Vdc.
• Can I use this probe with my existing 3300 system?Yes. It is fully compatible with 3300 XL Proximitors and all Bently Nevada monitors that accept 8 mm probe inputs.
• What does the suffix 330103-00-06-05-11-05 mean?330103=M10x1 thread without armor, 00=0 mm unthreaded length, 06=60 mm case length, 05=0.5 m total length, 11=ClickLoc connector with FluidLoc cable, 05=CSA/ATEX/IECEx approvals.
• Is the probe pressure tested before shipment?Factory does not pressure test standard probes. For applications requiring a tested pressure seal, contact our custom design department.
• Which gap voltage should I set for radial vibration?Recommended static gap is -9 Vdc (approximately 1.27 mm / 50 mils) to center the probe in its linear range.
• What if my application requires high temperature up to 218°C?Standard probe handles +177°C. For extended tip temperature +218°C, you need the extended temperature range option; check with our sales team.

Selection & Experience Guide

• For machines with high surface speeds, ensure target material and finish meet Bently Nevada specs to avoid electrical runout.
• If cable length exceeds 0.5 m, order a probe with longer cable or use extension cables with ClickLoc connectors – max system length 305 m.
• In areas with strong electromagnetic interference, always use shielded triad wiring and ground properly.
• When installing in hazardous zones, verify barrier or isolator compatibility per drawing 141092 (ia) or 140979 (nA/ec).
• Need help selecting the correct probe? Contact us with your machine type, thread size, and cable length requirement.
