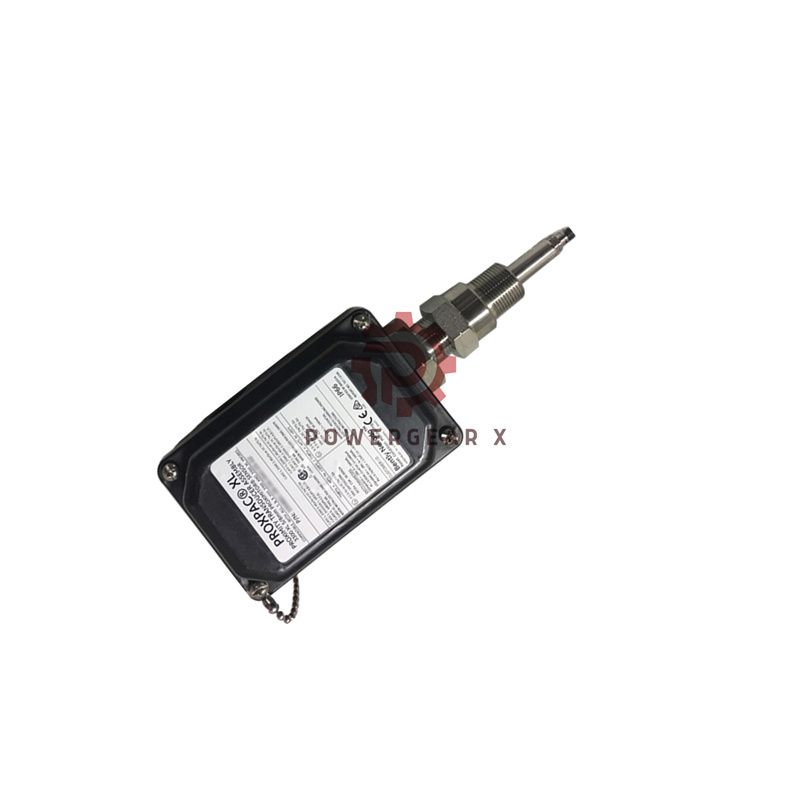

- Bently Nevada 32000-16-05-04-135-03-02 – Metric Proximity Probe Housing, made in USA.
- Designed for 3300 XL 8 mm probe systems. Provides robust protection in hazardous areas.
- Type 4X (CSA) and IP66 (CENELEC EN50014) certified. Withstands extreme temperature -51°C to +105°C.
- Glass‑reinforced PPS (conductive) housing, stainless steel sleeves and chain.
- Integrated 0.5 m probe cable, 40 mm standoff, 135 mm penetration. Supplied with M20 fitting, plugs, and cable seal grip for armored cable.
- Mounting thread: 3/4‑14 NPT. Weight 1.2 kg.
🔧 Technical Specifications
- Brand / Model : Bently Nevada 32000-16-05-04-135-03-02
- Probe compatibility : 3300 XL 8 mm probe with connector (option 16)
- Cable length : 0.5 m (20 in) integrated
- Standoff adapter : 40 mm (option 04)
- Probe penetration : 135 mm (option 135)
- Fittings supplied : two plugs, one M20 fitting, cable seal grip (armored cable)
- Mounting thread : 3/4-14 NPT (option 02)
- Temperature range : -51°C to +105°C (-60°F to +221°F)
- Protection class : Type 4X (CSA), IP66 (test report SC115582-1), EN50014 antistatic
- Housing material : conductive glass‑reinforced PPS
- Sleeve / chain : AISI 304 & 303 stainless steel, Neoprene® O‑ring
- Impact strength : 4 J at -39°C & +115°C (BASEEFA), 7 J at room temp (CSA)
- Weight : 1.2 kg
📦 Model Number Decoder – 32000-16-05-04-135-03-02
- 32000 – Metric probe housing series
- 16 – Probe option: 3300 XL 8 mm probe with connector
- 05 – Probe cable length: 0.5 m (20 in)
- 04 – Standoff adapter: 40 mm
- 135 – Probe penetration: 135 mm
- 03 – Fittings option: two plugs, one M20 fitting + cable seal grip for armored probe cable
- 02 – Mounting thread: 3/4-14 NPT (required for standoff adapter)
⚙️ Installation & Mounting
- Standard 3/4‑14 NPT thread for direct installation.
- Supplied with M20 adapter and sealing plugs for conduit or cable gland.
- Armored probe cable grip with grommets ensures liquid‑tight seal.
- Standoff adapter 40 mm maintains correct probe tip clearance.
- Stainless steel retaining chain prevents cap loss during maintenance.
🛠️ Debug & Maintenance Convenience
- Easy cap removal: integrated chain keeps cap attached to housing.
- External screws (AISI 303) resist corrosion – frequent access no issue.
- O‑ring seal (Neoprene®) simplifies inspection; no special tools needed.
- Color‑coded markings for quick probe penetration verification.
🔌 Compatibility & System Integration
- Direct fit with Bently Nevada 3300 XL 8 mm probe (part of 3300 family).
- Works with all 3300/3500 monitoring systems.
- Armored probe cable compatible – use supplied seal grip.
- Fits standard metric mounting holes (40 mm standoff).
✅ Certifications & Environmental Resistance
- CSA Type 4X – watertight, dusttight, corrosion resistant.
- IP66 (verified by SC115582-1) – powerful water jets, heavy seas.
- CENELEC EN50014 – antistatic plastic for hazardous zones.
- BASEEFA impact tested: 4 Joule at -39°C and +115°C.
- CSA 7 Joule impact at ambient.
- EMI/RFI immune via conductive PPS housing.
📦 Package List & Warranty
- 1x Bently Nevada 32000 probe housing (fully assembled as per suffix)
- 1x M20 fitting & two blank plugs
- 1x armored cable seal grip with grommets
- Stainless steel mounting hardware included
- 📄 12‑month warranty against material/assembly defects.
- Shipping: FedEx, UPS, DHL – worldwide express.
🏭 Typical Applications & Diagnostics
- Radial vibration & axial position monitoring on turbines, compressors, pumps.
- Hazardous areas (refineries, chemical plants) due to EN50014 rating.
- Diagnostic ability: continuous proximity measurement, shaft gap, eccentricity.
- Compatible with Bently Nevada keyphasor and diagnostic software.
- Ideal for API 670 machine protection systems.
❓ FAQ – Experience & Selection Guide
- Q: Can I use this housing with a 5 mm probe?No, it’s specifically designed for 3300 XL 8 mm probe (option 16).
- Q: What if my penetration need is 100 mm, not 135 mm?Order with custom penetration code (consult factory). 135 mm is standard for most turbomachinery.
- Q: Does the housing fit existing 3/4‑14 NPT ports?Yes, option 02 is exactly 3/4‑14 NPT. If you need metric thread, choose different suffix.
- Q: Is the cable seal grip suitable for unarmored cable?It includes grommets for armored probe cable. For unarmored, use the M20 fitting with plugs.
- Q: How do I verify correct probe installation depth?135 mm penetration mark is preset; use a depth micrometer to confirm gap voltage.
- Q: Which environments demand the IP66 rating?Outdoor, wash‑down areas, or coastal installations. IP66 + Type 4X give full protection.
- Purchase Guide / Selection tip:For high‑temperature zones (>105°C), consider optional heat‑resistant extension cables. If you need longer probe cable, choose higher suffix (e.g., 05=0.5m, 10=1.0m). Always match standoff (40 mm) to your machine’s thread depth.
