Allen-Bradley 1762-OA8 Triac Output Module for MicroLogix

Allen-Bradley 1762-OA8 Solid-State Output Module

The Allen-Bradley 1762-OA8 delivers reliable AC output control for industrial applications. This 8-point module works with MicroLogix control systems.

Technical Specifications

• Brand: Allen-Bradley
• Model: 1762-OA8 (Complete Suffix)
• Function: Solid-State Output Module
• Output Type: 8 AC Triac Points
• Operating Voltage: 85-265V AC
• Input Power: 100-240V AC
• Operating Frequency: 47-63 Hz
• Heat Dissipation: 2.9 Watts
• Commons: 2
• Voltage Drop: 1.5V at 0.5A
• Minimum Current: 10 mA
• Dimensions: 3.54 x 1.59 x 3.43 inches
• Weight: 0.5 pounds

Environmental Ratings

• Operating Temperature: 32° to 131°F (0° to 55°C)
• Non-Operating Temperature: -40° to 185°F (-40° to 85°C)
• Compliance: NEMA ICS 2-230, EN50081-2 Class A
• Immunity: IEC1000-4-2, IEC1000-4-3

Packaging Contents

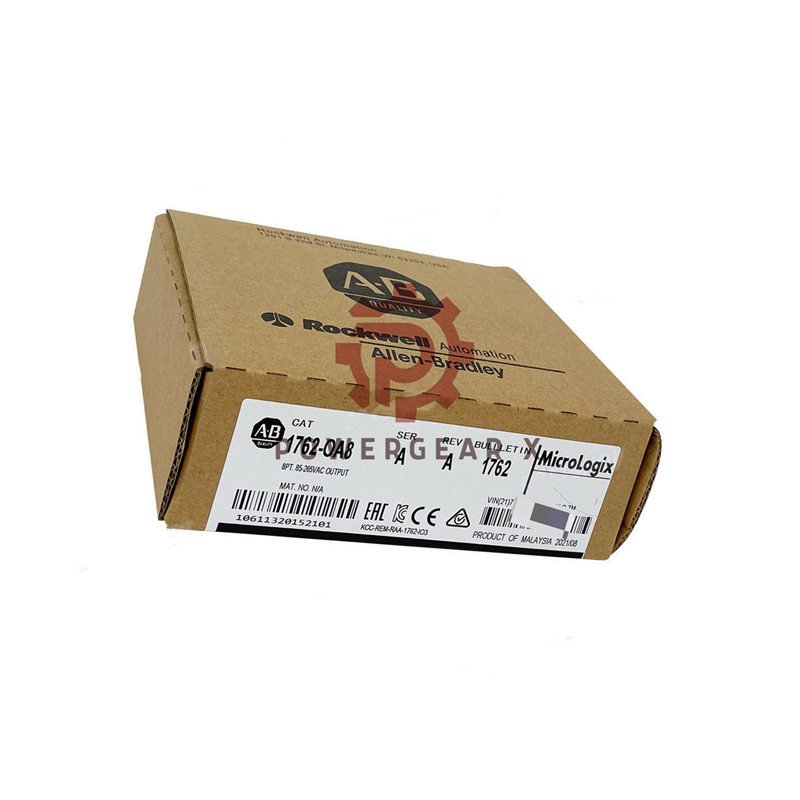

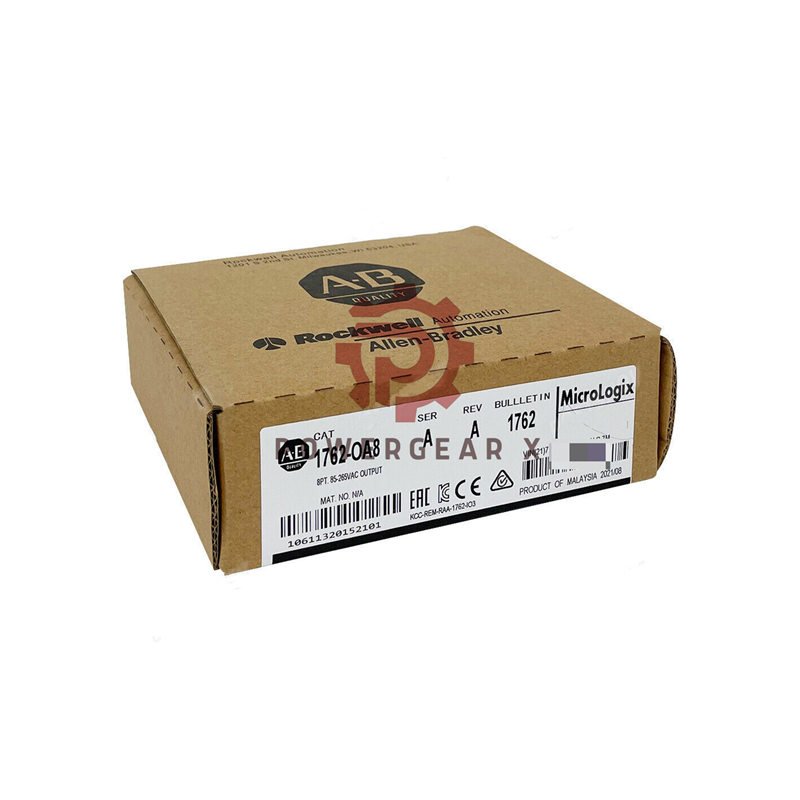

• 1762-OA8 Output Module
• Installation Documentation
• Shipping Options: FedEx, UPS, or DHL

Frequently Asked Questions

• What controllers work with the 1762-OA8 module?
  It works with MicroLogix 1100, 1200, and 1400 controllers.
• What is the output type of this module?
  It provides eight AC triac outputs for switching AC loads.
• What voltage range can this module handle?
  It operates from 85 to 265V AC for worldwide use.
• How many commons does the module have?
  It has two commons for output grouping flexibility.
• What safety standards does it meet?
  It meets NEMA and European emissions standards.

This product includes a 12-month warranty. We ship via FedEx, UPS, or DHL.
