Product details

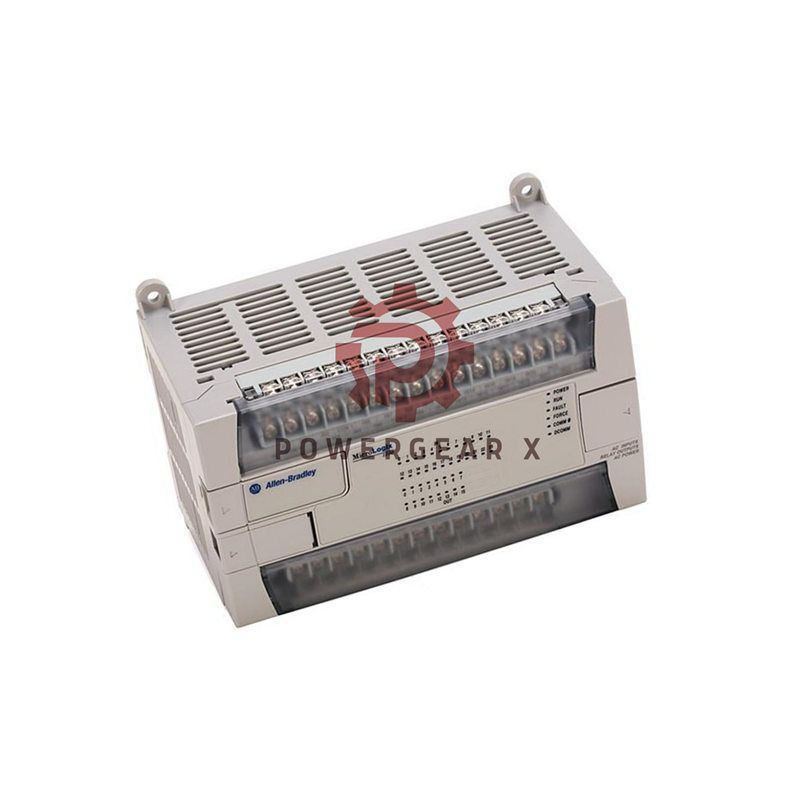

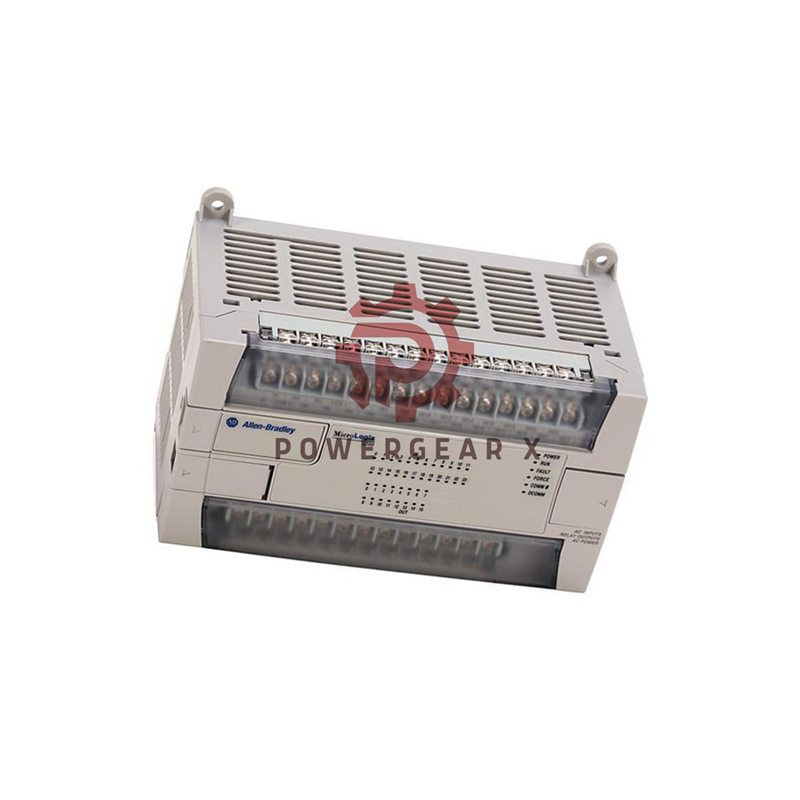

Introducing the Allen-Bradley 1762-L40BXBR MicroLogix 1200 Controller
The Allen-Bradley 1762-L40BXBR delivers advanced control in a compact package. This powerful PLC offers flexible I/O configurations and robust communication capabilities. It provides reliable performance for industrial automation applications.
Technical Specifications
- Brand: Allen-Bradley
- Model: 1762-L40BXBR (MicroLogix 1200 Series)
- Input Power: 24VDC
- Input Channels: 20 standard + 4 high-speed 24VDC
- Output Configuration: 8 relay + 7 FET + 1 high-speed FET
- Contact Rating: 24-125VDC; 120-240VAC
- Mechanical Life: 20,000,000 cycles
- Load Current: 10A minimum per output
- Operating Temperature: 0 to 55°C (32 to 131°F)
- Communication Ports: 8-pin mini-DIN RS232
- Supported Protocols: DF1, DH-485, ASCII, MODBUS
- Isolation Voltage: 75VDC input-to-backplane
- Vibration Resistance: 5G at 10-500 Hz
- Shock Resistance: 30G operational
- Dimensions: 90H x 160W x 87D mm
- Weight: 2.4 pounds (1.1 kg)
Package Contents
- One 1762-L40BXBR Controller Unit
- Installation and Programming Manual
- DIN Rail Mounting Accessories
- Warranty: 12 Months
- Shipping Options: FedEx, UPS, DHL
Frequently Asked Questions
- What expansion capabilities does this controller have?
It supports connection of up to six 1762 series expansion modules. - Can I use both relay and FET outputs simultaneously?
Yes, all outputs can operate concurrently for different load types. - What communication protocols are supported?
It supports DF1, DH-485, ASCII, and MODBUS protocols. - What is the isolation rating between groups?
75VDC isolation between input groups and backplane. - How many high-speed inputs are available?
Four dedicated high-speed 24VDC inputs.
