Allen-Bradley 1762-OB16 MicroLogix Output Module | 16-Point

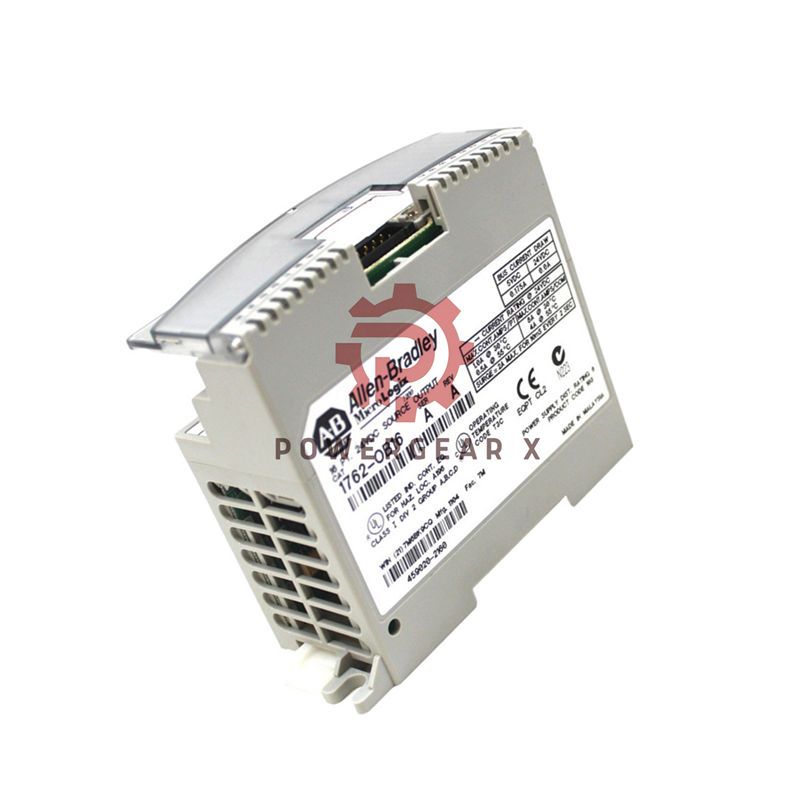

Allen-Bradley 1762-OB16: High-Density 24V DC Sourcing Output Module

The 1762-OB16 from Allen-Bradley (Rockwell Automation) is a MicroLogix expansion I/O module. It adds sixteen solid-state sourcing outputs to your MicroLogix 1100, 1200, or 1400 controller. This module provides a compact and efficient solution for extending your system’s control capabilities.

Complete Technical Specifications

• Brand & Manufacturer: Allen-Bradley (Rockwell Automation)
• Full Model Number: 1762-OB16
• Product Type: Discrete 24V DC Sourcing Output Module
• Number of Outputs: 16
• Output Type: Solid-State, Sourcing
• Operating Voltage Range: 20.4 – 26.4V DC
• Point Current Rating: 0.5A @ 55°C / 1.0A @ 30°C
• Module Current Rating: 4.0A @ 55°C / 8.0A @ 30°C
• Surge Current: 2.0A for 10ms (repeatable every 2s @ 55°C)
• Switching Speed: On Delay: 0.1 ms; Off Delay: 1.0 ms
• Bus Current Draw: 175 mA @ 5V DC (0.88W)
• Compatible Controllers: MicroLogix 1100, 1200, 1400
• Max Installation Count: 4 (1100), 6 (1200), 7 (1400)
• Operating Altitude: Up to 2000 meters (6561 feet)

Packaging & Shipping

• One (1) Allen-Bradley 1762-OB16 Output Module
• One (1) Set of Installation Documentation
• This item ships via FedEx, UPS, or DHL worldwide.

Frequently Asked Questions (FAQ)

• What devices can I control with this module?
  It can control solenoids, pilot lamps, relays, motor starters, buzzers, and other 24V DC devices.
• What does “sourcing” output mean?
  It means the module provides the positive voltage (24V DC) to the connected load.
• How many modules can I connect to my controller?
  It depends on your controller: MicroLogix 1100 (4), 1200 (6), or 1400 (7).
• Can I mix this module with other I/O types?
  Yes, you can create a mix of input and output modules in your expansion system.
• What is the maximum wire distance for outputs?
  Keep wire runs as short as possible to minimize voltage drop, especially at higher currents.
