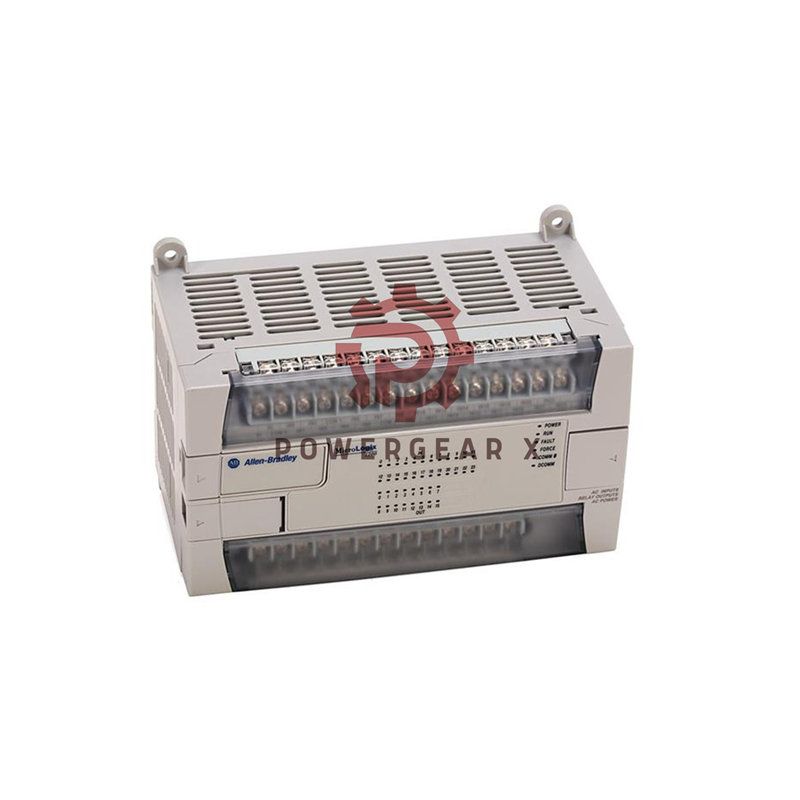

Allen-Bradley 1762-L40BXB MicroLogix 1200 Logic Controller

Allen-Bradley 1762-L40BXB MicroLogix 1200 Programmable Controller

The Allen-Bradley 1762-L40BXB delivers high-performance control in a compact design. This Rockwell Automation MicroLogix 1200 series PLC offers a powerful blend of I/O flexibility and communication features. It handles complex automation tasks with reliable operation.

Detailed Technical Specifications

• Brand: Allen-Bradley / Rockwell Automation
• Model: 1762-L40BXB (Full Catalog Number: 1762-L40BXB)
• Input Power: 100-240V AC (47-63 Hz)
• Inputs: 20 x 24V DC; 4 x Fast 24V DC
• Outputs: 8 x Relay; 7 x 24V DC FET; 1 x High-Speed 24V DC FET
• Relay Contact Rating: 24-125V DC / 120-240V AC
• Operating Frequency: 0 to 20 kHz (inputs 0-3)
• Communication Port: 8-pin mini-DIN RS-232
• Protocols: DF1, DH-485, ASCII, MODBUS
• Operating Temperature: 0 to 55 °C (32 to 131 °F)
• Dimensions (HxWxD): 90 x 160 x 87 mm (3.5 x 6.3 x 3.4 in)
• Weight: 2.4 lbs (1.1 kg)

Packaging List

• One (1) Allen-Bradley 1762-L40BXB MicroLogix 1200 Controller Unit
• Mounting hardware and installation documentation
• We ship via reliable carriers: FedEx, UPS, or DHL worldwide

Frequently Asked Questions (FAQ)

• What is the input frequency capability?
  Inputs 0-3 handle 0-20 kHz; other inputs support 0-1 kHz operation.
• Can I add real-time clock functionality?
  Yes, the optional 1762-RTC module adds time stamping capabilities.
• What communication protocols are supported?
  The controller supports DF1, DH-485, ASCII and MODBUS protocols.

The Allen-Bradley 1762-L40BXB provides reliable control for industrial applications. Rockwell Automation designed this MicroLogix controller for easy installation and long-term performance.
