ABB FCAN-01 CANopen Adapter Module for Drives

FCAN-01 CANopen Adapter Module for ABB Drives

FCAN-01 adds a CANopen link to ABB drives. It plugs into the drive option slot. The board is conformal coated for tough plant conditions. The bus interface stays isolated from the drive. This keeps communication clean and safe.

Need a quote? Write to sales@powergearx.com or chat on +86 18030005825.

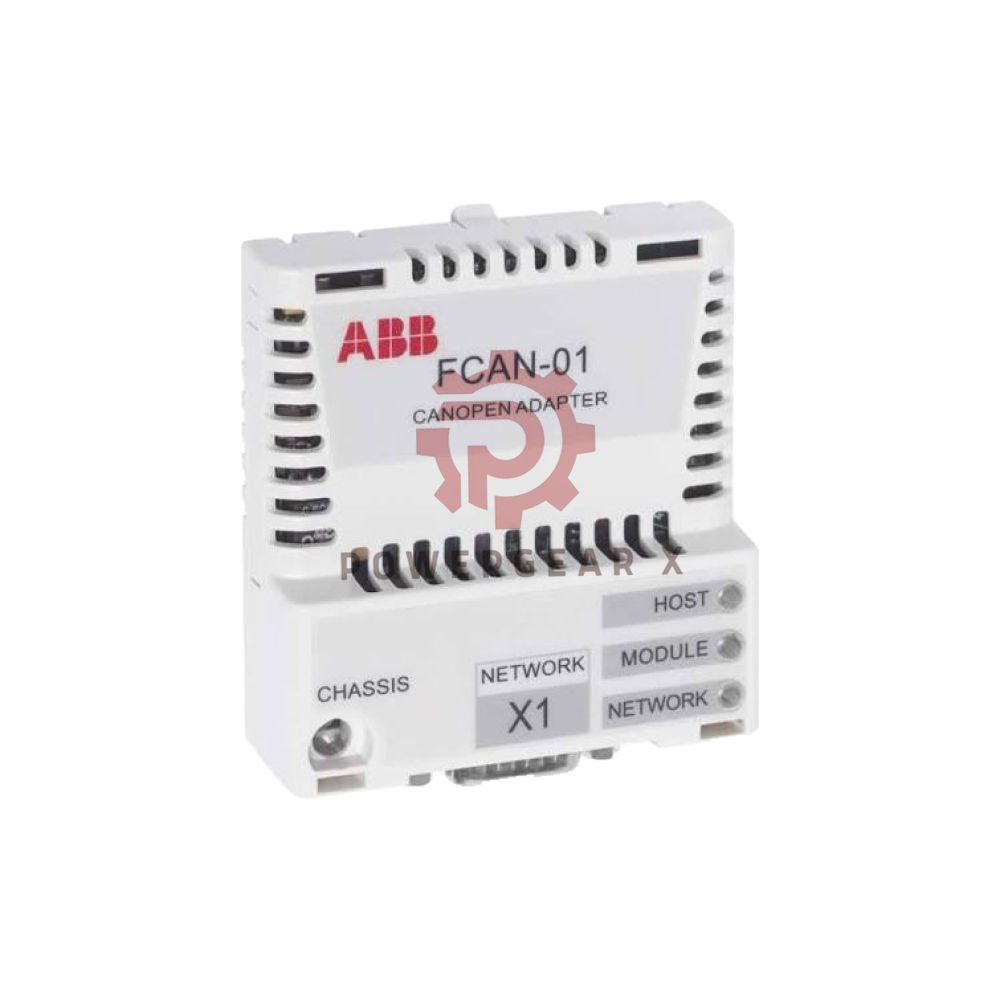

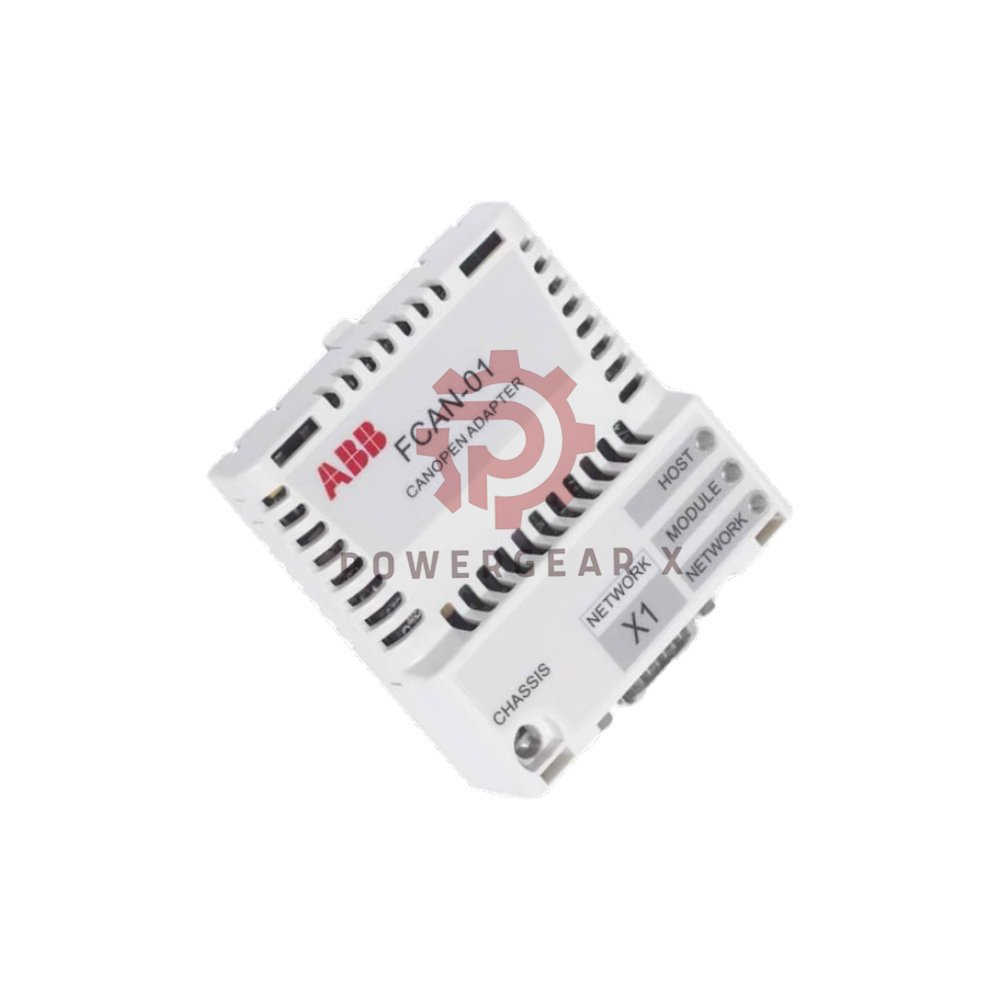

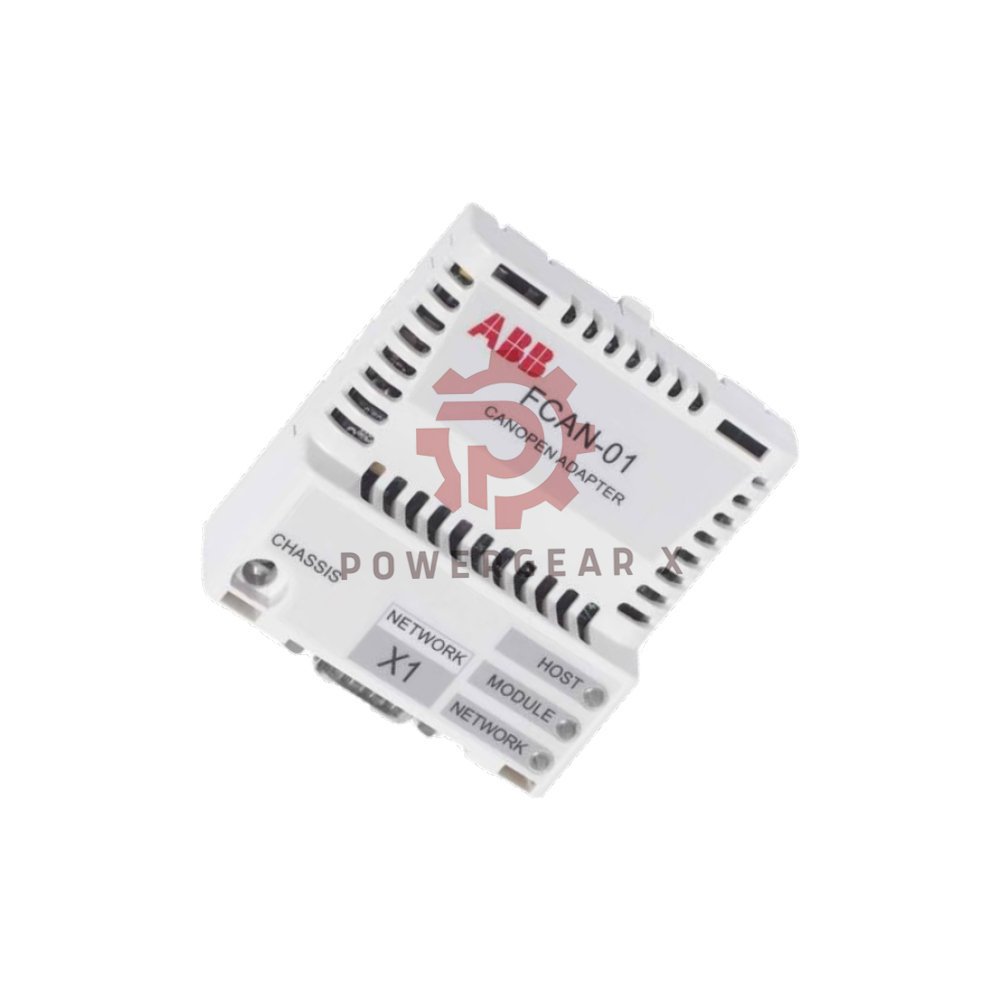

Module Layout

• Brand: ABB
• Model: FCAN-01
• Type: CANopen Adapter Module
• Mounting
  • Fits the option slot on the drive
• Protection
  • Degree of protection IP20
  • Ambient limits follow the drive manuals
• Indicators
  • Three bicolor LEDs: HOST, MODULE, NETWORK
• Connectors
  • 20-pin connector to drive (X2)
  • 9-pin male D-SUB connector to bus (X1)
• Power Supply
  • +3.3 V ±5%, max. 300 mA, supplied by the drive
• General
  • Meets EMC standard EN 61800-3:2004
  • Bus interface is functionally isolated from the drive
  • Printed circuit board is conformal coated

CANopen Link

• Compatible devices
  • All CANopen-compliant devices
• Medium
  • Shielded twisted pair, nominal impedance 120 ohms
  • CANopen-approved cable recommended
• Termination
  • 120 ohms, or active termination at each end of the trunk cable
  • Termination is not built into the module
• Transfer Rate
  • Max. 1 Mbit/s
  • 1 Mbit/s; 500 kbit/s; 250 kbit/s; 125 kbit/s; 100 kbit/s; 50 kbit/s
• Serial Communication
  • Asynchronous, half-duplex, CAN
• Protocol
  • CANopen
• Maximum Bus Length
  • 1 Mbit/s: 25 m
  • 500 kbit/s: 100 m
  • 250 kbit/s: 250 m
  • 125 kbit/s: 500 m
  • 50 kbit/s: 1000 m

Expert Review

The FCAN-01 brings CANopen into ABB drive systems with little setup work. Conformal coating and bus isolation add real value in dusty or noisy plants. Three LEDs make faults easy to spot. Users must add external termination, so plan the trunk cable ends early.

Manager’s Insight

This module suits plants that standardize on CANopen. It keeps one network across drives and devices. Stock a few units to cover quick swaps. Orders ship in 12 to 24 hours by FedEx, UPS, and DHL. All units carry a 12-month warranty.

Best-Fit Equipment and Applications

• ABB drives with a free option slot
• Conveyor and packaging lines
• Material handling systems
• Machine cells on a CANopen network
• Factory automation retrofits
• Water and pump stations

FAQ

Q: Does the module include bus termination?

A: No. Add 120 ohm termination at each end of the trunk cable.

Q: How do I know if the module works?

A: Watch the three LEDs. HOST, MODULE, and NETWORK show link state.

Q: What cable should I buy?

A: Use shielded twisted pair with 120 ohm impedance. Pick a CANopen-approved cable.

Q: Will a long cable reduce speed?

A: Yes. Longer lines need lower bit rates. Check the bus length table first.

Q: How do I pick the right adapter for my drive?

A: Check the drive manual for option slot support. Then confirm you need CANopen, not another fieldbus.

Order Notes

• Lead time: 12 to 24 hours dispatch
• Couriers: FedEx, UPS, DHL
• Warranty: 12 months
• Questions: sales@powergearx.com or +86 18030005825
