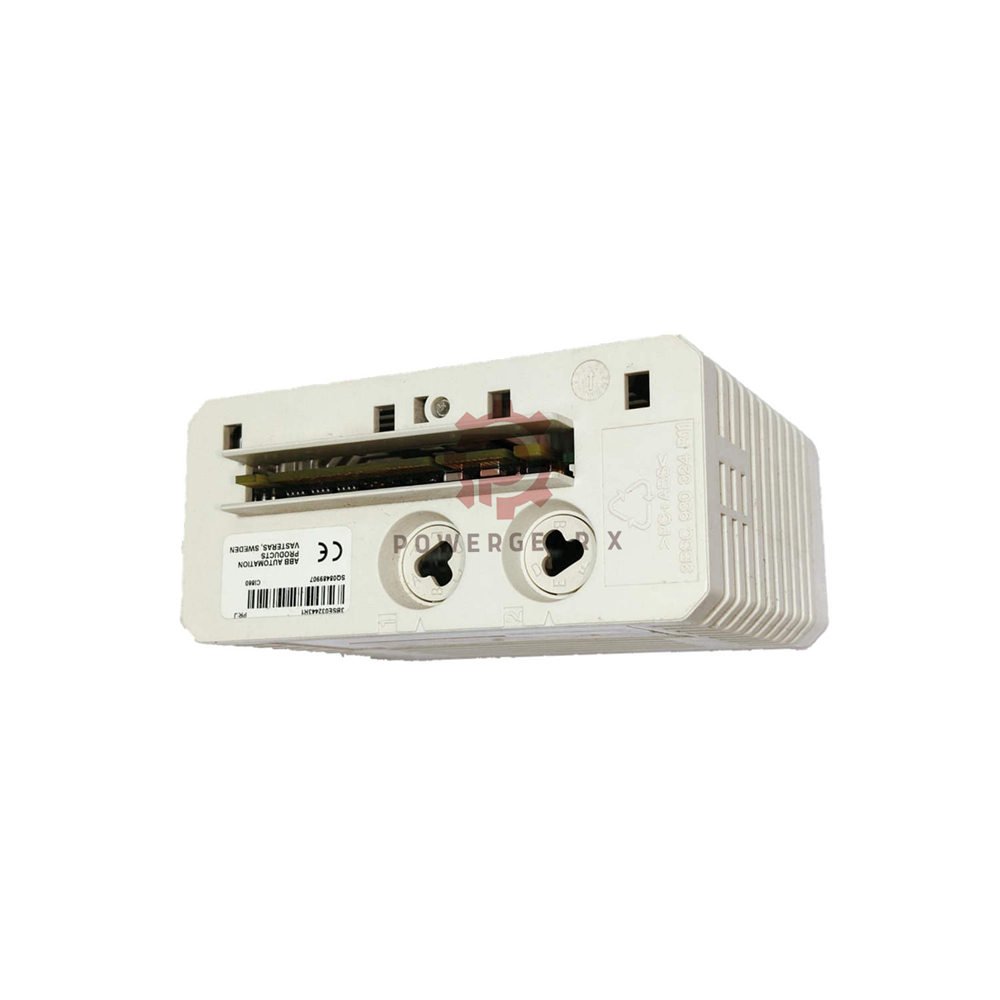

Name: ABB CI860K01 FF HSE Interface Kit CI860 Module TP860 Baseplate FOUNDATION Fieldbus
SKU: CI860K01
Availability: InStock

Product details

Product Overview

The CI860K01 FF HSE Interface connects ABB systems to FOUNDATION Fieldbus HSE networks. This complete package includes the CI860 communication module and TP860 baseplate. It enables high-speed Ethernet communication with field devices. Use it for seamless integration of HSE instruments into your control system. The module is compact and easy to install.

Package Contents

CI860: Communication Interface module
TP860: Baseplate for mounting
Complete kit ready for installation

Key Details

Product ID: 3BSE032444R1
ABB Type Designation: CI860K01
Catalog Description: CI860K01 FF HSE Interface
Long Description: FOUNDATION Fieldbus HSE Interface package
Medium Description: FOUNDATION Fieldbus HSE Interface with CI860 and TP860
Product Type: Communication Module
HS Code: 85176200
Customs Tariff Number: 85176200

Dimensions & Weight

Product Net Depth: 127.5 mm
Product Net Height: 186 mm
Product Net Width: 59 mm
Product Net Weight: 0.7 kg

Environmental Compliance

RoHS Information: Follows EU Directive 2011/65/EU
WEEE Category: 5 – Small Equipment (under 50 cm)
Number of Batteries: 0
SCIP Number: 4cb0b958-71d8-46e7-bed2-9518416c9b60 Sweden

Technical Features

Protocol: FOUNDATION Fieldbus HSE (High Speed Ethernet)
Mounting: TP860 baseplate for DIN rail or panel
Integration: Works with ABB 800xA and other systems
Communication: 100 Mbps Ethernet speed
Diagnostics: LED indicators for status and activity

Installation Guidelines

Mount TP860 baseplate: Secure on DIN rail or panel.
Insert CI860 module: Slide into baseplate until locked.
Connect Ethernet: Use standard RJ45 cable to HSE network.
Power supply: 24 VDC via baseplate terminals.
Configure: Set IP address and link to controller.

Diagnostic Features

Module LEDs: Power, network link, and data activity.
Fieldbus Status: Monitor HSE communication health.
System Integration: View diagnostics in ABB controller software.

Typical Applications

Process Plants: Connect HSE field devices to DCS.
Oil & Gas: High-speed data from analyzers and valves.
Power Generation: Monitor turbine and boiler instruments.
Chemical Industry: Integrate smart fieldbus equipment.
Hybrid Systems: Combine HSE with other fieldbuses.

Compatibility Information

Controllers: AC 800M with appropriate CI cards
System: 800xA, Symphony Plus, and other ABB platforms
Field Devices: Any FOUNDATION Fieldbus HSE instrument
Network: Standard Ethernet switches (100 Mbps)

Frequently Asked Questions

Q: What is the difference between CI860 and CI860K01?A: CI860 is the module only. CI860K01 is a complete kit that includes both the CI860 module and the TP860 baseplate. Order CI860K01 for everything needed in one package.
Q: Can I mount the CI860 on existing DIN rail without TP860?A: No. The CI860 requires the TP860 baseplate for mounting and power connection. The baseplate provides mechanical support and electrical terminals.
Q: What is the maximum cable length for HSE Ethernet?A: Standard Ethernet limits apply: 100 meters for copper UTP. Use fiber optic for longer distances with media converters.
Q: What shipping methods are available and what is the warranty?A: We ship via FedEx, UPS, and DHL worldwide. The CI860K01 comes with a 12-month warranty against manufacturing defects.
Q: Any installation tips from field experience?A: Always use shielded Ethernet cables in industrial areas. Set a static IP address for the CI860 to avoid conflicts. Check the SCIP number (4cb0b958-71d8-46e7-bed2-9518416c9b60 Sweden) for environmental reporting if needed. When replacing, ensure firmware matches your controller version.
