ABB CI801 S800 I/O PROFIBUS DP-V1 Communication Module HART Pass-Through

Product Overview

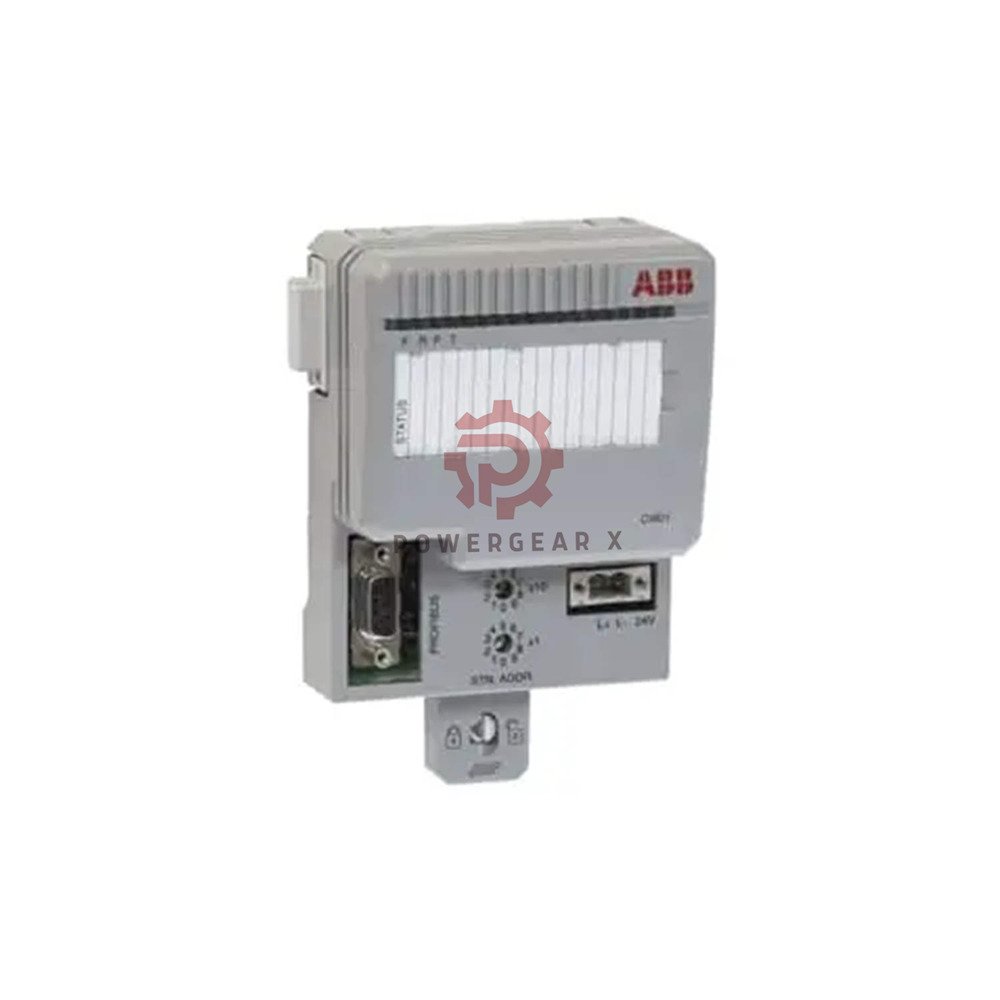

The CI801 Fieldbus Communication Interface is part of the S800 I/O system from ABB. It connects I/O modules to controllers using PROFIBUS-DPV1. This module handles signal processing, supervision, and OSP (Output State Preset). It supports Hot Configuration InRun and HART pass-through. Use it for reliable and flexible process control.

Model Structure

• CI – Communication Interface
  • 801 – Model Number
    • 3BSE022366R1 – Article Number

Key Features

• PROFIBUS-DPV1 Interface: Connects to controllers via fieldbus
• Supervisory Functions: Monitors I/O ModuleBus health
• Isolated Power: Supplies power to I/O modules with isolation
• OSP Handling: Sets safe output states on communication loss
• Input Power Fused: Built-in fuse for protection
• Hot Configuration InRun: Change settings without stopping system
• HART Pass-through: Access HART device data via fieldbus
• Wide Certification: CE, UL, ATEX Zone 2, Marine (ABS, BV, DNV-GL, LR)

Technical Specifications

• Article Number: 3BSE022366R1
• Communication Protocol: PROFIBUS DP-V1
• Master or Slave: Slave
• Line Redundancy: No
• Module Redundancy: No
• Hot Swap: No
• Used with HI Controller: Yes
• 24 V Consumption: 140 mA typical
• Operating Temperature: 0 to +55°C (+32 to +131°F)
• Storage Temperature: -40 to +70°C (-40 to +158°F)
• Pollution Degree: Degree 2, IEC 60664-1
• Corrosion Protection: ISA-S71.04: G3
• Relative Humidity: 5 to 95%, non-condensing
• Max Ambient Temperature: 55°C (131°F), vertical mount 40°C (104°F)
• Protection Class: IP20 (EN60529, IEC 529)
• RoHS Compliance: DIRECTIVE/2011/65/EU
• WEEE Compliance: DIRECTIVE/2012/19/EU

Dimensions & Weight

• Width: 85.8 mm (3.38 in)
• Height: 136 mm (5.35 in) including latch
• Depth: 58.5 mm (2.30 in)
• Weight: 0.3 kg (0.66 lbs)

Installation Guidelines

• Mounting: Snap onto DIN rail in S800 I/O rack.
• Wiring: Connect PROFIBUS cable to front D-sub connector.
• Power: Supply 24 VDC via termination unit.
• Configuration: Set station address with rotary switches.
• Integration: Use with HI Controller for full function.

Diagnostic Features

• LED Indicators: Module status, bus activity, and fault signals.
• ModuleBus Supervision: Detects I/O module failures.
• OSP Monitoring: Shows when outputs are in safe state.
• HART Pass-through: Access device diagnostics via PROFIBUS.

Typical Applications

• Process Industries: Connect field I/O to ABB controllers.
• Marine Systems: Certified for shipboard automation.
• Hazardous Areas: Use in ATEX Zone 2 and Class I Div 2 locations.
• Oil & Gas: Reliable operation in corrosive environments (G3).
• Factory Automation: Distributed I/O over PROFIBUS network.

Compatibility Information

• Controllers: Works with ABB HI Controller and AC 800M.
• I/O Modules: Supports all S800 I/O series modules.
• Fieldbus: PROFIBUS DP-V1 master (any brand).
• Software: Configure via Control Builder or similar.

Frequently Asked Questions

• Q: Can the CI801 support redundant PROFIBUS lines?A: No. The CI801 does not support line redundancy. For redundant communication, use CI854 or similar modules designed for redundancy.
• Q: What is Hot Configuration InRun and how do I use it?A: Hot Configuration InRun lets you change I/O module parameters while the system runs. You do not need to stop the controller. Use this for tuning or adding channels without process interruption.
• Q: Is the CI801 approved for marine applications?A: Yes. It holds marine certificates from ABS, BV, DNV-GL, and LR. Suitable for ship and offshore platforms.
• Q: What are the shipping options and warranty period?A: We ship via FedEx, UPS, and DHL worldwide. The CI801 comes with a 12-month warranty against defects.
• Q: Any practical advice for first-time users?A: Ensure proper termination on PROFIBUS network. Use the correct GSD file for your master. For vertical mounting, note the lower 40°C temperature limit. Always verify bus address switches before power-up to avoid conflicts.

Package Contents

• 1x CI801 Fieldbus Communication Interface (3BSE022366R1)
• 1x Product Documentation
• 12-month warranty period
• Termination unit ordered separately

Ordering & Support

• Warranty: 12 months from delivery
• Shipping Partners: FedEx, UPS, DHL express
• Sales Inquiries: sales@powergearx.com
• WhatsApp Support: +86 18030005825
