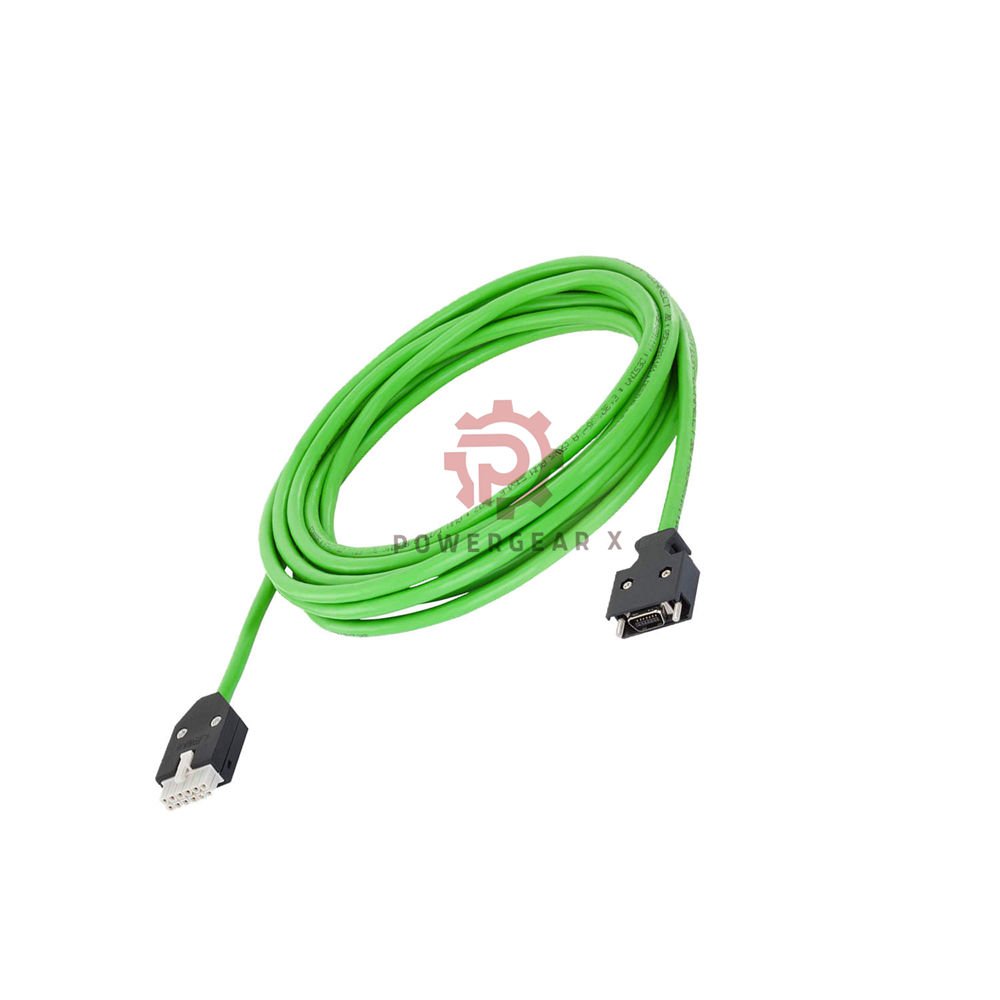

6FX3002-2CT20-1BA0 Siemens V90 Encoder Cable – 10m Shielded Servo Cable

Product Overview

• 6FX3002-2CT20-1BA0 is a Siemens V90 servo encoder cable.
• It links the servo drive to the motor encoder for precise control.
• The cable is 10 meters long, giving flexibility for machine layouts.
• It has 3x2x0.20 + 2x2x0.25 cores for power and signal.
• Rated voltage is 30V/30V with a 500V test voltage.
• Designed for fixed or flexible installation with a tight bend radius.

Technical Specifications

• Brand: Siemens
• Model: 6FX3002-2CT20-1BA0
• Series: V90 Servo
• Type: Encoder Cable
• Cores: 3x2x0.20 + 2x2x0.25 mm²
• Test Voltage: 500 V
• Rated Voltage: 30V / 30V
• Fixed Bend Radius: 6 x diameter
• Flex Bend Radius: 155 mm
• Max Bends: 100,000 (flexible)
• Tensile (Fixed): 50 N/mm²
• Tensile (Flex): 20 N/mm²
• Torsion: ±30°/m
• Connector: Straight (fixed outlet)
• Length: 10.0 m

Compatible Devices & Applications

• Works with Siemens V90 servo drives and motors.
• Ideal for CNC machines, robotics, and packaging equipment.
• Used in automation lines that need reliable encoder feedback.
• Suitable for high-flex applications like cable carriers.

Installation & Maintenance

• Route the cable with minimum bend radius (6x diameter fixed).
• For moving parts, respect 155 mm flex radius.
• Avoid twisting beyond ±30°/m to prevent damage.
• Secure the straight connector firmly to the drive.
• Inspect jacket regularly for wear in flex applications.

Shipping & Warranty

• 12-month warranty against defects.
• Dispatch within 12–24 hours after order.
• Shipped via FedEx, UPS, or DHL with tracking.

Comparison with Similar Models

• 6FX3002-2CT20-1AF0 – 5m length for shorter runs.
• 6FX3002-2CT20-1BA0 – 10m standard (this model).
• 6FX3002-2CT20-1CA0 – 20m for large machines.
• 6FX3002-2CT10-1BA0 – different core configuration.

Expert Review

• “The 6FX3002-2CT20-1BA0 is a dependable encoder cable for V90 systems. Its 10m length and high flex life (100k bends) suit dynamic applications. The shielding ensures signal integrity in noisy environments – a solid choice for precision motion.”
• – Senior Motion Control Specialist

Manager’s Insight

• “We stock this cable for its robust performance and quick delivery. The 12-month warranty and 24h shipping give our customers peace of mind. It reduces downtime during replacements and fits most V90 servo setups.”
• – Product Manager, Powergear X

Frequently Asked Questions (FAQ)

• • Q: Can this cable be used with other Siemens drives?
  • A: It is designed specifically for V90 servos. Other drives may need different connectors.

• • Q: What is the difference between fixed and flexible installation?
  • A: Fixed means the cable stays still; flexible allows movement (e.g., cable carriers) with a larger bend radius.

• • Q: How do I know if the cable is damaged?
  • A: Check for cuts, kinks, or broken shielding. If the encoder signal is unstable, inspect the cable.

• • Q: Can I shorten the cable?
  • A: Shortening is not recommended as it may affect signal quality and warranty.

• • Q: Is the connector straight or angled?
  • A: It has a straight connector with a fixed cable outlet direction.

• • Q: What if the cable fails within 12 months?
  • A: Contact us for a warranty replacement – we cover manufacturing defects.

• Q: Does this cable support absolute encoders?
• A: Yes, it is compatible with both incremental and absolute encoders on V90.

Selection Guide

• Choose 6FX3002-2CT20-1BA0 for standard 10m connections.
• Pick a shorter cable (5m) for compact machines.
• Select longer cables (20m) for large systems – but check signal strength.
• Always verify connector type matches your drive and motor.
