Product details

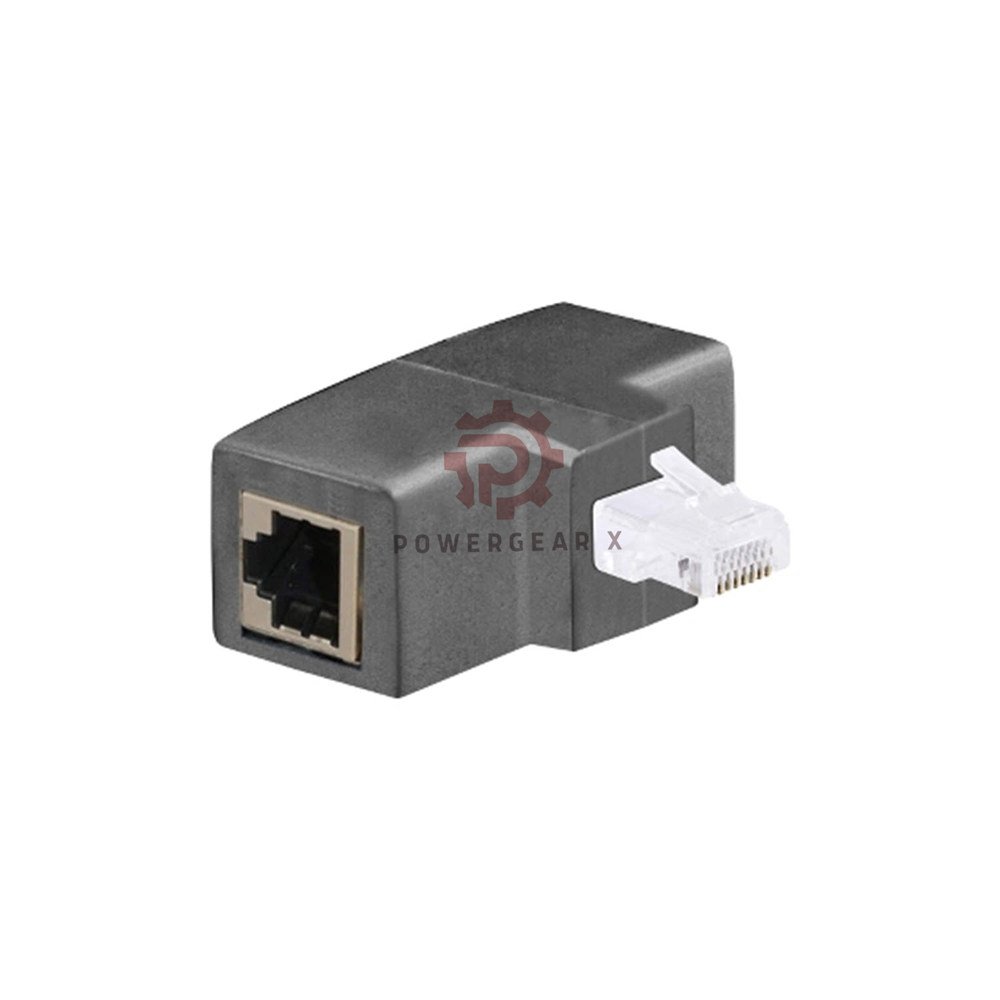

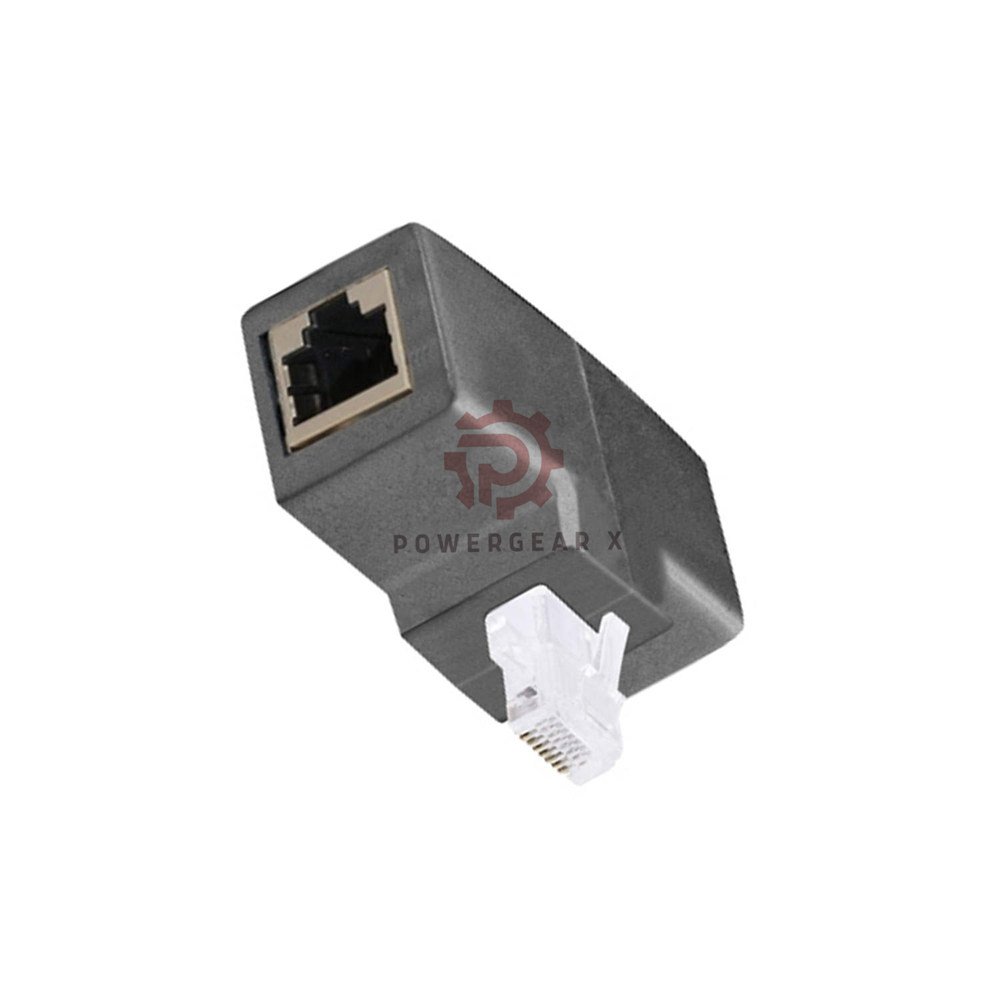

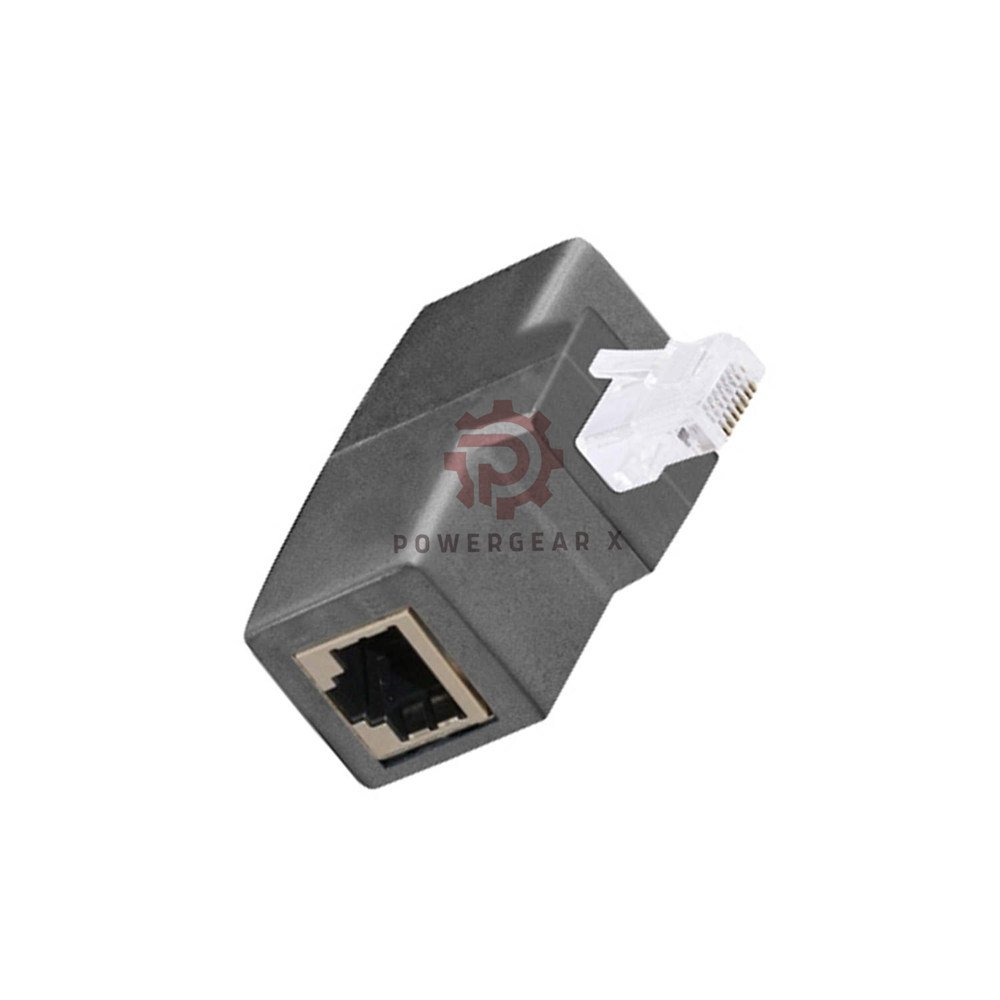

Product Overview – 170XTS04200
- Type: Shunt Plug
- Brand: Schneider Electric
- Model: 170XTS04200
- Series: Modicon Momentum
- Function: RS485 Multi-master RJ45 shunt plug
- Quantity: Set of 2
- Weight: 8.0 g (0.3 oz)
- Compliance: CE certified
Technical Data – Tree Structure
- Physical
- Height: 0.79 in (2.0 cm)
- Width: 4.92 in (12.5 cm)
- Length: 7.48 in (19.0 cm)
- Weight: 8.0 g (0.3 oz)
- Housing: Compact, lightweight design
- Environmental
- Temperature (operation): 0…+60 °C
- Humidity (operation): 95% (non-condensing)
- Humidity (storage): 95% (non-condensing)
- Altitude: Up to 1000 m
- Cooling: Natural (no external cooling required)
- Compatibility
- Modicon Momentum automation platform
- Modicon Quantum automation platform
- RS485 Multi-master networks
- Compliance
- CE certified
- Country of origin: FR
Expert Review
170XTS04200 provides reliable RS485 termination for Modicon Momentum systems. The compact design fits tight spaces. It operates in temperatures up to 60°C. A cost-effective solution for network termination in industrial environments.
Manager’s Insight
This shunt plug simplifies RS485 multi-master network setup. Use it for Modicon Momentum or Quantum systems. The set of 2 covers most installation needs. Its lightweight design reduces shipping costs.
Compatible Devices & Applications
- Systems: Modicon Momentum, Modicon Quantum
- Applications: RS485 multi-master network termination
- Industries: Factory automation, process control, building automation
- Use: RJ45 shunt plug for communication networks
Comparison – Similar Models
- 170XTS04000 – RS485 shunt plug, similar specs
- 170XTS04201 – same, different packaging
- 170XTS04300 – shunt plug with termination resistor
FAQ – Professional Questions
- Q: What is the purpose of this shunt plug?
- A: It terminates RS485 multi-master networks.
- Q: What systems is it compatible with?
- A: Modicon Momentum and Quantum.
- Q: How many plugs are in one set?
- A: 2 plugs per set.
- Q: What is the operating temperature range?
- A: 0°C to +60°C.
- Q: Is CE certification included?
- A: Yes, it is CE certified.
Experience-based FAQ & Selection Guide
- Q: Why do I need a shunt plug?
- A: It prevents signal reflections on RS485 networks.
- Q: Can I use this with other PLC brands?
- A: Designed specifically for Modicon systems.
- Q: How to install the shunt plug?
- A: Plug it into the RJ45 port of the device.
- Q: What is the maximum cable length?
- A: Follow RS485 specifications for the network.
- Q: Is the plug reusable?
- A: Yes, it is a passive component.
- Q: Does it require power?
- A: No, it is a passive termination device.
Selection Guide – What to Consider
- Network: RS485 multi-master requires proper termination.
- Compatibility: Use with Modicon Momentum or Quantum only.
- Quantity: Each set contains 2 plugs.
- Environment: Suitable for 0-60°C and 95% humidity.
- Budget: Cost-effective solution for network termination.
