Product Overview

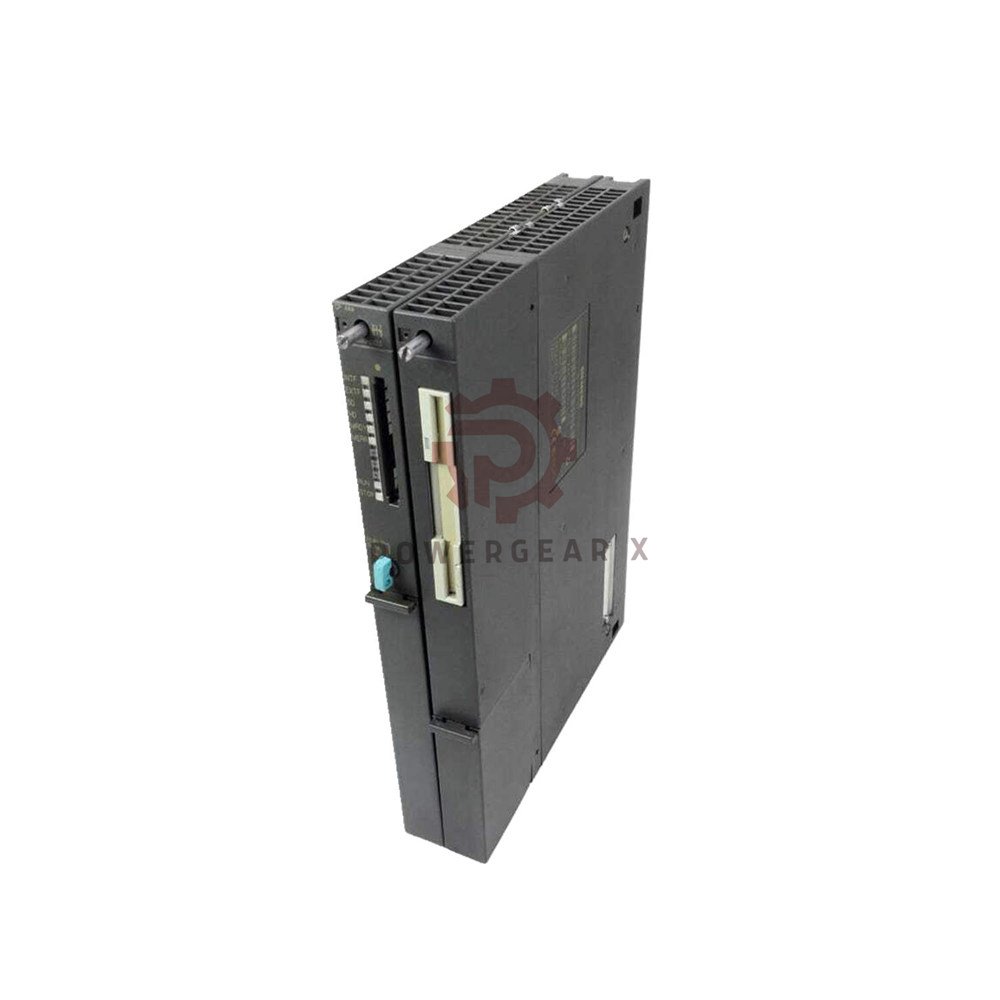

- Siemens 6ES7444-1MX00-0XE0 – communication processor for S7-400 systems
- Part of the SIMATIC S7-400 CP 444 series
- Connects S7-400 to Industrial Ethernet networks
- Supports MAP 3.0 protocol architecture
- Includes configuration package on CD
- Delivers 10 Mbit/s transmission speed
Technical Specifications – Hierarchical View
- Current consumption
- From backplane bus 5 V DC: max. 3.1 A
- Power loss
- Typical: 15.6 W
- Network interface
- Industrial Ethernet port: 15-pin Sub-D socket
- Transmission rate: 10 Mbit/s
- Auto-switchover between AUI and industrial twisted-pair
- Protocol support
- Bus protocol: MAP 3.0 based on ISO 8073 Class 4
- Transport protocol: Complies with ISO standards
- Communication functions
- S7 extended communication: Yes
- Number of connections: 1 overall
- Environmental conditions
- Operating temperature: 0°C to 40°C (55°C with forced ventilation)
- Storage/transport temperature: -20°C to 60°C
- Relative humidity: 80% max at 25°C (no condensation)
- Vibration resistance
- Tested to IEC 60068-2-6
- 10-58 Hz: 0.0035 mm constant amplitude
- 58-500 Hz: 0.5 g constant acceleration
- Dimensions & weight
- Width: 50 mm
- Height: 290 mm
- Depth: 210 mm
- Weight: approx. 2,080 g
Expert Review – Manager’s Insight
- This CP 444 module provides legacy MAP 3.0 connectivity for S7-400 systems
- Older manufacturing plants still use MAP networks for equipment communication
- The module bridges modern S7-400 controllers to older MAP-based machinery
- Includes configuration software on CD for easy setup
- Consider this module when integrating legacy equipment into new control systems
Compatible Systems & Applications
- Compatible PLC systems
- Siemens SIMATIC S7-400 series (all CPUs)
- Requires S7-400 backplane bus connection
- Works in UR1, UR2, and UR2-H racks
- Typical applications
- Connecting S7-400 to legacy MAP 3.0 networks
- Integrating older manufacturing equipment with modern PLCs
- Factory automation systems requiring MAP protocol
- Data exchange between S7-400 and MAP-based devices
Installation & Configuration Guide
- Insert module into any S7-400 rack slot with adequate clearance
- Connect Industrial Ethernet cable to 15-pin Sub-D socket
- Install configuration package from included CD on your engineering PC
- Configure MAP 3.0 parameters using the provided software
- Set up S7 extended communication for data exchange
Environmental & Physical Considerations
- Module weight is 2.08 kg – ensure rack mechanical support
- Width is 50 mm – occupies one slot with extra width
- Operate between 0°C and 40°C for optimal reliability
- Use forced ventilation if ambient exceeds 40°C
- Store between -20°C and 60°C when not installed
Package Contents
- 1x Siemens 6ES7444-1MX00-0XE0 CP 444 communication module
- 1x Configuration package on CD
- Quick-start guide (multilingual)
Shipping & Warranty
- 12-month warranty against manufacturing defects
- Same-day dispatch (orders before 2 PM GMT+8)
- Express shipping via FedEx, UPS, or DHL
- Tracking provided within 24 hours
Frequently Asked Questions
- What is MAP 3.0 protocol used for?
- A: MAP (Manufacturing Automation Protocol) connects industrial devices in factory networks.
- Can I connect this module to modern Ethernet switches?
- A: Yes, but ensure the switch supports 10 Mbit/s and AUI or twisted-pair connections.
- Does this module support more than one connection?
- A: No, the module supports only one overall connection at a time.
- What is the maximum ambient temperature without forced ventilation?
- A: 40°C maximum. Above that, forced ventilation is required up to 55°C.
- Is the configuration software included?
- A: Yes, the package includes a configuration CD with all necessary software.
Selection Guide – Compare with Similar Models
- Need MAP 3.0 connectivity? Choose 6ES7444-1MX00-0XE0 (this module)
- Need PROFIBUS connectivity? Choose 6ES7444-1MA00-0XE0
- Need Industrial Ethernet with ISO protocol? Choose 6ES7444-1MX00-0XE0 (TCP/IP option not available)
