Name: 6ES7432-1HF00-0AB0 Siemens SM 432 Analog Output Module | 8 AO 13-bit
SKU: 6ES7432-1HF00-0AB0
Price: 234.00 USD
Availability: InStock

Product details

Product Overview

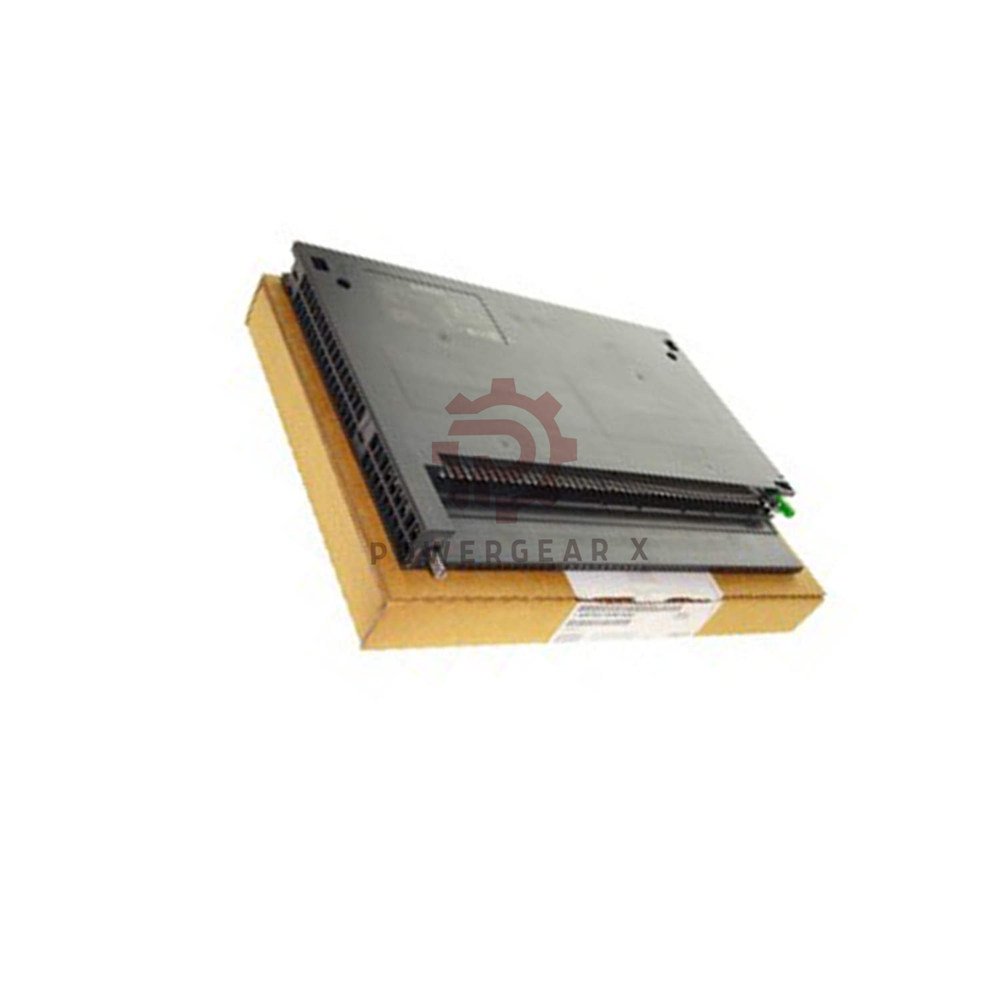

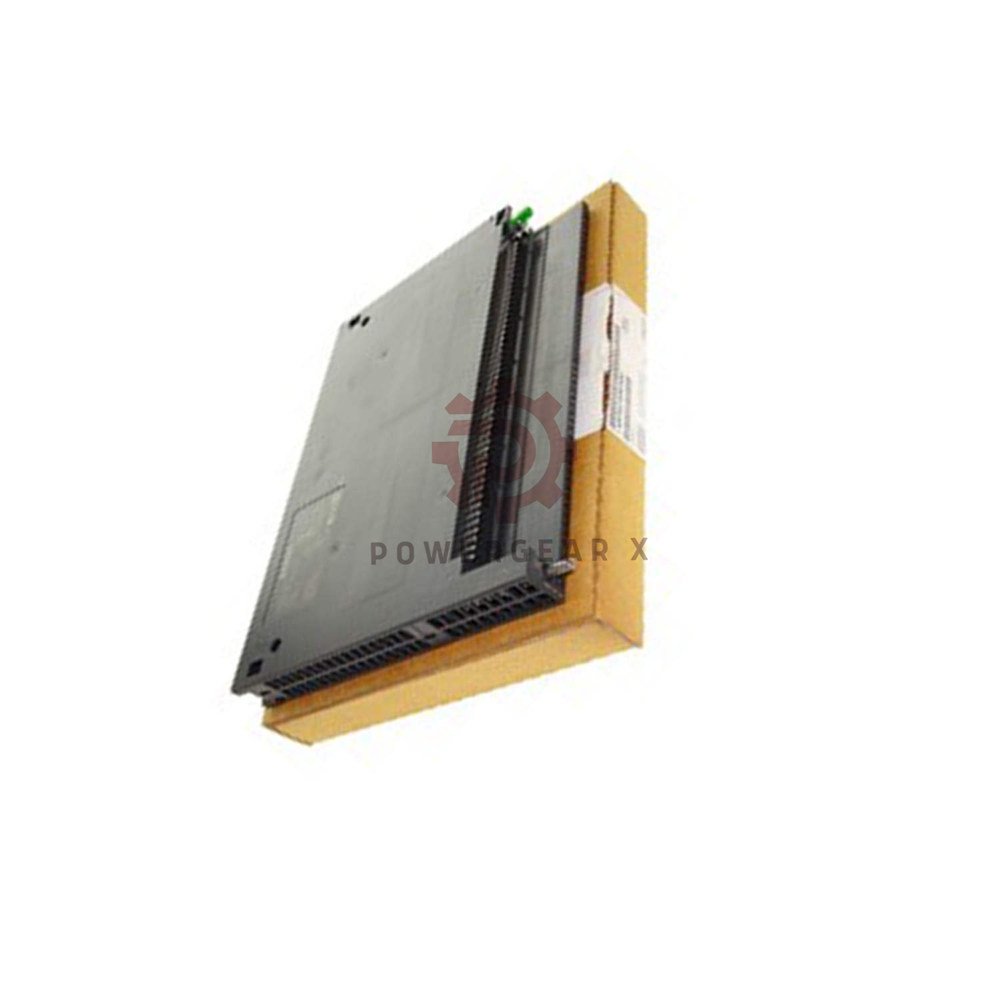

Siemens 6ES7432-1HF00-0AB0 is an analog output module for SIMATIC S7-400 systems.
- This SM 432 module provides 8 isolated analog outputs.
- Resolution reaches 13 bits with overrange capability.
- Supports voltage and current output ranges.
- Offers short-circuit protection on voltage outputs.

Technical Specifications – Hierarchical View

Brand & Model
- Brand: Siemens
- Model: 6ES7432-1HF00-0AB0
- Series: SIMATIC S7-400 / SM 432
Power Supply
- Load voltage L+: 24V DC (rated)
- Reverse polarity protection: Yes
- Current from L+ (no load): max 200 mA
- Current from L+ (rated load): max 400 mA
- Current from backplane: max 150 mA
- Power loss: 9 W (typical)
Analog Outputs
- Number of outputs: 8 channels
- Voltage output short-circuit protection: Yes
- Short-circuit current (max): 30 mA
- Current output no-load voltage (max): 19 V
Output Ranges
- Voltage ranges: 0-10V, 1-5V, -10V to +10V
- Current ranges: 0-20mA, -20mA to +20mA, 4-20mA
Load Impedance
- Voltage outputs (min): 1 kΩ
- Voltage outputs capacitive load (max): 1 µF
- Current outputs (max): 500 Ω (600 Ω with reduced common-mode voltage)
Cable & Conversion
- Shielded cable length (max): 200 m
- Resolution: 13 bits with overrange
- Conversion time: 420 µs (1-5V, 4-20mA), 300 µs (other ranges)
Settling Time
- Resistive load: 0.1 ms
- Capacitive load: 3.5 ms
- Inductive load: 0.5 ms
Accuracy
- Voltage error (overall): ±0.5% of output range
- Current error (overall): ±1% of output range
- Current error (at 25°C): ±0.5%
Isolation & Protection
- Isolation between channels: No
- Isolation between channels and backplane: Yes
- Isolation between channels and load voltage L+: Yes
- Test voltage: 2120V DC between bus and L+/M
Dimensions & Weight
- Width: 25 mm
- Height: 290 mm
- Depth: 210 mm
- Weight: 650 g

Expert Review & Manager’s Insight

Field Engineer Review:
- This module delivers reliable analog signals for precise control.
- Fast settling time (0.1 ms) works well for dynamic processes.
- Use 4-20mA for long cable runs to reduce noise issues.
- Test your loads before connecting to avoid overcurrent.
Product Manager’s Insight:
- 8 outputs per module save rack space in large systems.
- No diagnostics function – plan preventive maintenance checks.
- Compatible with all S7-400 CPUs and expansion racks.
- Stock this module for system upgrades or replacements.

Suitable Devices & Application Scenarios

Compatible with:
- Siemens S7-400 PLC systems (all CPUs)
- ET 200M distributed I/O stations
- Process control and factory automation setups
Applications:
- Controlling variable speed drives (0-10V or 4-20mA)
- Positioning valves and actuators
- Process control in chemical and water treatment plants
- Test and measurement equipment

Installation & Wiring Guide

Mounting:
- Install in S7-400 rack with proper slot allocation.
- Ensure 24V DC power supply meets load requirements.
- Allow 50mm clearance for heat dissipation.
Wiring:
- Use shielded twisted pair cables for all analog signals.
- Connect shield at one end only (module side preferred).
- Keep analog cables away from high-power AC lines.
- Do not exceed 200m cable length for accuracy.

Maintenance & Debugging Tips

This module has no built-in diagnostics – monitor outputs externally.
Check output voltage/current with a multimeter during commissioning.
Verify load impedance matches the output range selected.
Keep spare modules on-site for quick replacement.

Package Contents

1x Siemens 6ES7432-1HF00-0AB0 analog output module
Product documentation and manual (if available)

Comparison with Related Models

6ES7422-5EH00-0AB0 – Digital output module (16 DO, AC)
6ES7431-7KF00-0AB0 – Analog input module (8 AI)

Frequently Asked Questions (FAQ)

Q: What is the maximum cable length for this module?
- A: Use shielded cable up to 200 meters for best signal quality.
Q: Can I mix voltage and current outputs on this module?
- A: Yes, each channel configures independently for voltage or current ranges.
Q: Does this module support HART communication?
- A: No, this is a standard analog output module without HART support.
Q: What is the accuracy for 4-20mA current outputs?
- A: Accuracy is ±1% over full temperature range, ±0.5% at 25°C.
Q: Is this module still available from Siemens?
- A: Yes, this module remains in the active product portfolio.
