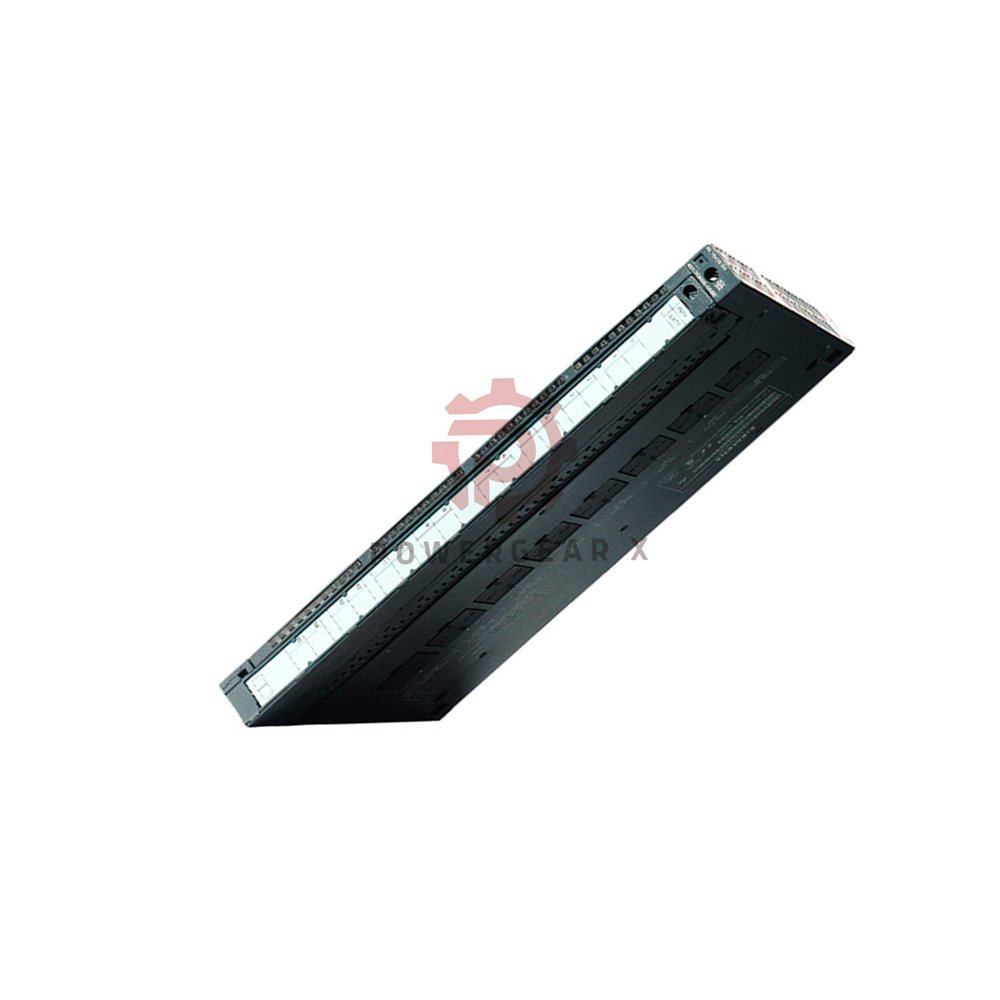

6ES7431-7QH00-0AB0 Siemens S7-400 16-Channel Analog Input Module

Product Overview

• Siemens 6ES7431-7QH00-0AB0 – high-performance analog input module for SIMATIC S7-400 systems
  • Provides 16 isolated analog inputs with 16-bit resolution
  • Supports voltage, current, thermocouple, RTD, and resistance signals
  • Includes diagnostics and alarm functions for advanced monitoring
  • Ideal for high-precision process control in demanding industries

Technical Specifications – Hierarchical View

• General information
  • Brand: Siemens
  • Model: 6ES7431-7QH00-0AB0
  • Series: SIMATIC S7-400
  • Product type: SM 431 Analog Input Module
  • Weight: approx. 500 g
  • Dimensions: 25 x 290 x 210 mm (W x H x D)
• Power supply
  • Load voltage L+: 24 V DC (only for 2-wire transmitters)
  • Reverse polarity protection: built-in
  • Current draw: max. 400 mA from L+ (all 16 transmitters active)
  • Backplane bus draw: max. 700 mA at 5 V DC
  • Typical power loss: 4.5 W
• Analog input specifications
  • Number of inputs: 16 channels (voltage/current)
  • Resistance measurement: 8 channels (configurable)
  • Destruction limit (voltage): 18 V continuous, 75 V for 1ms
  • Destruction limit (current): 40 mA max
  • Constant measurement current: 1.67 mA typical
• Input ranges – voltage
  • ±25mV, ±50mV, ±80mV, ±250mV, ±500mV
  • ±1V, ±2.5V, ±5V, ±10V, 1-5V
  • Input resistance: 1 MΩ (all voltage ranges)
• Input ranges – current
  • 0-20mA, 4-20mA, ±5mA, ±10mA, ±20mA
  • Input resistance: 50 Ω (all current ranges)
• Thermocouple types (all with 1 MΩ input)
  • Type B, E, J, K, L, N, R, S, T, U
  • Temperature compensation: parameterizable, external Pt100, compensation socket, dynamic reference
  • Characteristic linearization: built-in for all TC types
• Resistance thermometer (RTD)
  • Pt100, Pt200, Pt500, Pt1000, Ni100, Ni1000
  • Linearization: parameterizable for all RTD types
• Resistance measurement
  • 0-48Ω, 0-150Ω, 0-300Ω, 0-600Ω, 0-6000Ω (usable up to 5000Ω)
  • 2-wire, 3-wire, and 4-wire connection supported
  • Line resistance measurement included for 2-wire
• Conversion & resolution
  • Resolution: 16 bits with sign (overrange)
  • Integration time: 2.5/16.7/20 ms (parameterizable)
  • Basic conversion time: 6/20.1/23.5 ms
  • Noise suppression: 400/60/50 Hz selectable
• Accuracy & error limits
  • Temperature drift: ±0.004 %/K (excellent stability)
  • Operational error (voltage/current): ±0.3% full range
  • Operational error (resistance): ±0.3% (4-wire), ±0.4% (3-wire)
  • Basic error at 25°C: ±0.15% (voltage/current)
• Isolation & cable
  • Isolation: Fully isolated – channels, bus, L+, and ground
  • Test voltage: 2120 V DC between bus and L+/M
  • Max shielded cable: 200 m (50 m for thermocouples ≤80mV)

Expert Review – Engineer’s Insight

• This module sets the standard for precision analog input in S7-400 systems. The 16-bit resolution delivers exceptional measurement accuracy.
• Full isolation protects your CPU and field devices from ground loops and voltage spikes. This feature alone justifies the premium price.
• Thermocouple support covers all common types with built-in linearization. No external signal conditioning required.
• Diagnostics and alarm functions reduce troubleshooting time significantly. The module reports open-circuit, overrange, and underrange conditions.

Compatible Devices & Applications

• Works with all SIMATIC S7-400 CPUs (standard and redundant systems)
• Ideal for process industries: chemical, oil & gas, power generation, pharmaceutical
• Connect thermocouples (B, E, J, K, L, N, R, S, T, U) for temperature monitoring
• Connect RTDs (Pt100, Pt1000, Ni100) for precise temperature measurement
• Connect pressure transmitters, flow meters, level sensors (4-20mA, 0-20mA)

Installation & Wiring Guide

• Installation steps
  • Mount module in S7-400 rack (U-bus connector required)
  • Connect 24 V DC supply to L+ terminals (for 2-wire transmitters)
  • Wire sensors using shielded twisted-pair cable (max 200m)
  • For thermocouples, keep cable under 50m for best accuracy
• Wiring notes
  • Use 4-wire connection for resistance measurements (best accuracy)
  • For 3-wire RTDs, the module compensates for line resistance
  • Connect shields only at the module end (avoid ground loops)
  • Leave unused channels unconnected (no shorting required)

Package Contents

• 1x Siemens 6ES7431-7QH00-0AB0 analog input module
• 1x front connector (screw-type, included)
• 1x labeling strip
• No cables or programming software included

Shipping & Warranty

• 12-month warranty against manufacturing defects
• Shipping: FedEx, UPS, DHL (calculated at checkout)
• Orders dispatch within 12-24 hours on business days

Comparison – Isolated vs Non-Isolated

• 6ES7431-7QH00-0AB0 (Isolated) – 16 AI, 16-bit, full isolation, diagnostics, thermocouple/RTD support, 2120V isolation
• 6ES7431-0HH00-0AB0 (Non-Isolated) – 16 AI, 13-bit, no isolation, no diagnostics, voltage/current only
• Choose 6ES7431-7QH00-0AB0 for demanding process applications requiring signal integrity and safety
• Choose 6ES7431-0HH00-0AB0 for basic monitoring where isolation is not critical

Frequently Asked Questions

• Q: What is the advantage of isolated analog inputs?
  • A: Isolation protects your CPU from ground loops and voltage spikes. It also prevents damage when field wiring faults occur.
• Q: Can I connect both thermocouples and RTDs on the same module?
  • A: Yes, but each channel configuration applies to all channels. Use one module for TC, another for RTD for best flexibility.
• Q: Why does the thermocouple error show in Kelvin (K)?
  • A: This is the absolute temperature error. For Type T, ±1.1K means your reading could be off by about 1 degree Celsius.
• Q: What is the fastest conversion time I can achieve?
  • A: With 400 Hz noise suppression, conversion takes 6 ms per channel. All 16 channels complete in about 96 ms.
• Q: How do I wire a 3-wire Pt100 to this module?
  • A: Connect the two common wires to the same channel terminal. The module automatically compensates for line resistance.

Buying Guide – Selection Advice

• Choose 6ES7431-7QH00-0AB0 for high-precision applications requiring isolation and diagnostics.
• Need thermocouple or RTD support? This module covers all common types with linearization.
• For basic voltage/current monitoring without isolation, consider 6ES7431-0HH00-0AB0.
• Check your cable length: for thermocouples, keep under 50m for rated accuracy.
• Always order spare front connectors (6ES7392-1AM00-0AA0) for quick replacement.
