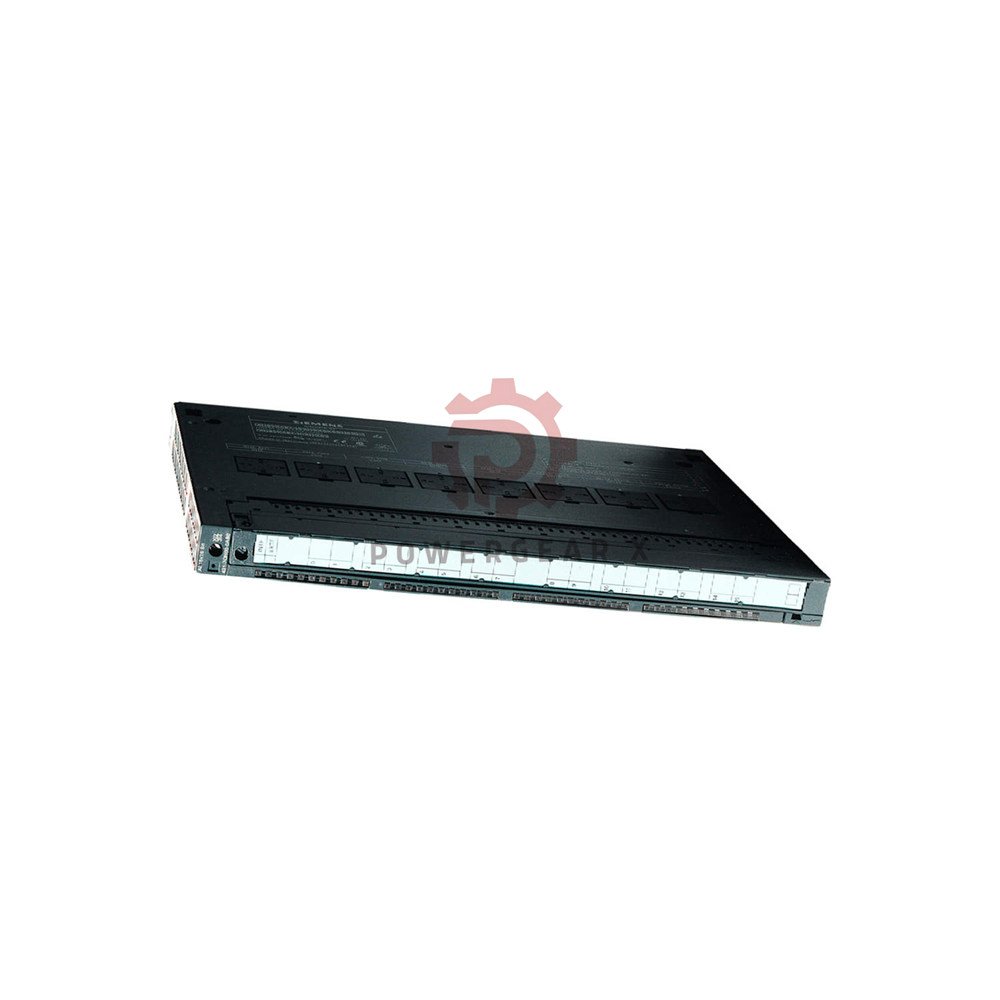

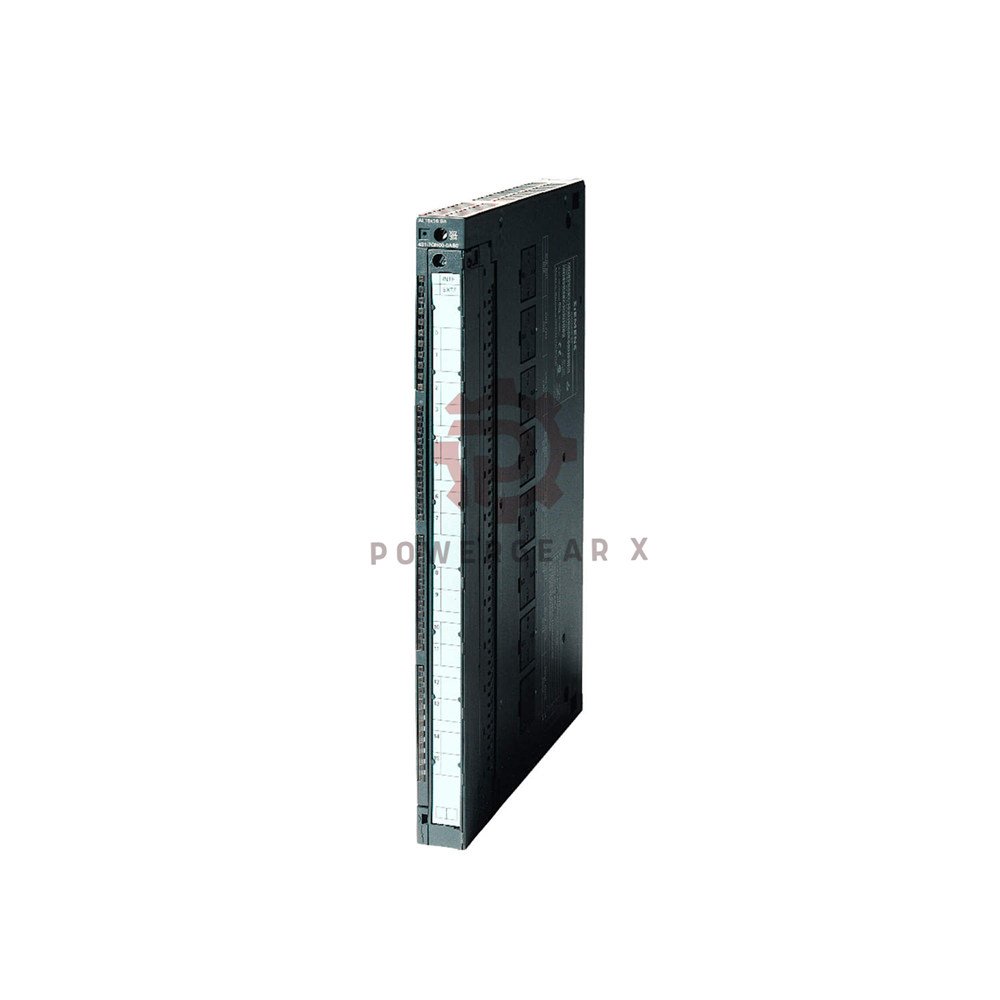

6ES7431-1KF20-0AB0 SIMATIC S7-400 Analog Module | U/I/Resistance

Product Overview

• Siemens 6ES7431-1KF20-0AB0 – analog input module for SIMATIC S7-400
  • 8 isolated analog input channels
  • 14-bit resolution with overrange capability
  • Handles voltage, current, and resistance signals
  • Fast conversion time of 52 µs per channel

Technical Specifications

• General data
  • Brand: Siemens
  • Model: 6ES7431-1KF20-0AB0
  • Series: SIMATIC S7-400
  • Product type: Analog input module (SM 431)
  • Weight: approx. 500 g
• Power supply
  • Load voltage L+: 24 V DC (for 2-wire transmitters)
  • Reverse polarity protection: Yes
  • Current from L+ (max): 200 mA (8 transmitters)
  • Backplane current: 1000 mA @ 5 V DC
  • Power loss: typ. 4.9 W
• Input characteristics
  • Number of inputs: 8 analog channels
  • Voltage/current inputs: 8 channels
  • Resistance inputs: 4 channels (shared)
  • Resolution: 14-bit with sign
  • Destruction limit (voltage): 18 V continuous / 75 V for 1 ms
  • Destruction limit (current): 40 mA permanent
  • Constant measurement current: 1.67 mA (for resistance)
• Input ranges
  • Voltage ranges: ±1 V, ±10 V, 1‑5 V
  • Current ranges: ±20 mA, 4‑20 mA
  • Resistance range: 0‑600 Ω
  • Input impedance (voltage): 10 MΩ / 100 kΩ
  • Input impedance (current): 50 Ω / 50 kΩ
• Performance & accuracy
  • Basic conversion time: 52 µs per channel
  • Module scan time (all channels): 0.42 s
  • Temperature error: 0.03 %/K
  • Operational error (voltage): ±0.6‑0.9 %
  • Operational error (current): ±0.7‑0.8 %
  • Operational error (resistance): ±0.7‑1.0 %
• Isolation & environment
  • Isolation: 2120 V DC (bus to analog)
  • Channel isolation: No (shared reference)
  • Shielded cable length: max. 200 m
  • Dimensions: 25 × 290 × 210 mm

Expert Review

• This module delivers reliable analog measurement for S7-400 systems.
• 14-bit resolution provides good precision for most industrial signals.
• Fast 52 µs conversion suits applications with moderate speed demands.
• Lack of diagnostics means you need external monitoring for fault detection.
• Resistance measurement works with 2, 3, or 4-wire connections.

Manager’s Insight

• Choose this module for mixed voltage/current/resistance applications.
• The 0.42 s scan time handles 8 channels simultaneously.
• Consider external signal conditioners for thermocouple or RTD inputs.
• Budget for spare modules – no built-in diagnostics for troubleshooting.

Suitable Applications & Compatible Systems

• Compatible systems
  • SIMATIC S7-400 PLC systems (all CPUs)
  • S7-400 racks and power supplies
  • ET 200M distributed I/O (with IM 153)
• Typical applications
  • Process monitoring with 4-20 mA pressure/temperature sensors
  • Voltage measurement from 0‑10 V or ±10 V transducers
  • Resistance measurement for potentiometers or slide-wire sensors
  • Mixed signal environments with multiple sensor types

Installation Guide

• Mounting steps
  • Insert the module into a free S7‑400 slot
  • Connect 24 V DC for 2‑wire transmitter power
  • Wire field devices to the 8 input terminals
  • Use shielded cable for all analog runs
• Configuration tips
  • Set input range in hardware configuration
  • Select integration time for noise rejection (50/60 Hz)
  • Enable only used channels to reduce scan time
  • Monitor raw values via PLC program

Maintenance & Debugging

• No diagnostic LEDs – check PLC program for out-of-range values
• Verify input signals with a handheld multimeter
• Check wiring for open circuits or shorts
• Clean terminals and tighten connections annually

Comparison with Similar Models

• Compare with 6ES7431-1KF10-0AB0 (8 AI, 13-bit, slower scan)
• Compare with 6ES7431-7KF00-0AB0 (8 AI, 16-bit, diagnostics)
• Compare with 6ES7431-1KF00-0AB0 (older version, 12-bit)

Package Contents & Warranty

• Package includes
  • 1x Siemens 6ES7431-1KF20-0AB0 module
  • 1x product documentation (digital download)
  • 1x warranty card (12 months)
• Shipping & warranty
  • 12‑month warranty against manufacturing defects
  • Express shipping via FedEx, UPS, or DHL
  • 12‑24 hour dispatch for in-stock items

Frequently Asked Questions

• Q: Does this module support thermocouple inputs?
  • A: No, this module does not accept thermocouple signals. Use 6ES7431-7KF00-0AB0 for thermocouple support.
• Q: Can I connect RTD sensors directly?
  • A: No, this module only supports resistance measurement (0‑600 Ω). Use external converters for RTD sensors.
• Q: What is the scan time for all 8 channels?
  • A: The module scans all 8 channels in 0.42 seconds. Each channel takes 52 µs to convert.
• Q: How do I connect a 4‑20 mA 2‑wire transmitter?
  • A: Connect the transmitter’s positive wire to L+ (24 V). Connect the negative wire to the module input. Use the module’s internal 50 Ω resistor.
• Q: Does this module provide diagnostic alarms?
  • A: No, this module has no diagnostic function. You need to monitor values in the PLC program for out-of-range conditions.

Buying Guide & Selection Tips

• Choose this module for 8-channel mixed analog inputs with 14-bit resolution.
• For thermocouple or RTD inputs, select 6ES7431-7KF00-0AB0 instead.
• If you need 16-bit resolution, consider 6ES7431-7HF00-0AB0.
• Use shielded cable for all analog runs up to 200 m.
• Verify your CPU firmware supports this module (FW 1.0 or higher).
