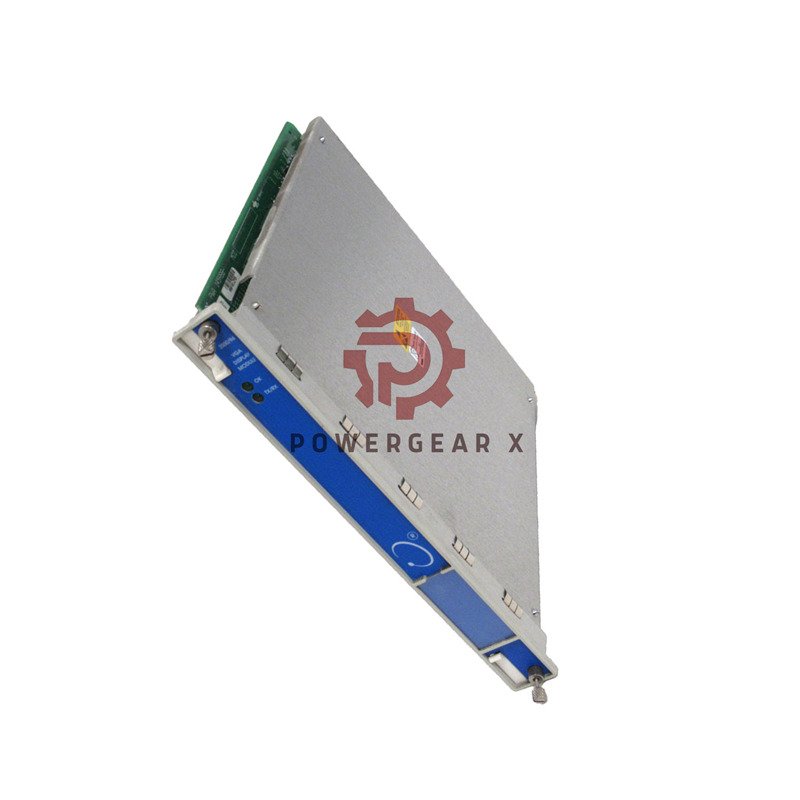

3500/94M-03-00-01 Bently Nevada VGA Display Module | 3500 Series

Product Description – Bently Nevada 3500/94M VGA Display Module

• Brand: Bently Nevada
• Model: 3500/94M-03-00-01
• Series: 3500 Machinery Protection System
• Module Type: VGA Display Interface Module

• The 3500/94M provides real-time machine data visualization.
• Designed for industrial monitoring and diagnostics environments.
• Displays system status, alarms, and measurement values clearly.
• Supports panel-mounted industrial displays.
• Ensures stable communication inside the 3500 rack system.
• Optimized for vibration monitoring and machinery protection tasks.
• Low power design improves system reliability.
• Ideal for power plants, oil & gas, and rotating equipment monitoring.

Technical Specifications

• Manufacturer: Bently Nevada
• Model: 3500/94M-03-00-01
• Display Size: 10 inch industrial display
• Mounting: Panel mount with installation hardware
• Power Consumption: Max 4.6 W
• Operating Temperature: -20°C to 65°C
• Storage Temperature: -40°C to 85°C
• Humidity: 95% non-condensing
• Network: High-speed internal rack communication
• VGA Output: Analog RGB and sync signals
• RS232 Port: Touch controller communication
• Status Indicators: OK LED and TX/RX communication LEDs
• Environmental Resistance: Industrial EMC immunity compliant
• EMC Standards: EN 61000-6-2, EN 61000-6-4
• Electrical Safety: UL EN 61010-1, CSA C22.2 61010-1
• RoHS: Directive 2011/65/EU compliant

Configuration Breakdown (Ordering Structure)

• 3500/94M-AA-BB-CC
•   ├─ AA – Display Size & Mounting
•     └─ 03 = 10” display, panel mount
•   ├─ BB – KVM Extender Cable
•     └─ 00 = None
•   └─ CC – Agency Approval
•     └─ 01 = CSA/NRTL/C Class I Div 2

Key Performance Characteristics

• Measurement Capability: Displays monitoring parameters from rack modules.
• Frequency Response: Supports high-speed internal data refresh.
• Sensitivity: Accurate graphical display of system values.
• Resolution: Industrial LCD visualization clarity.
• Linearity: Digital data shown without conversion distortion.
• Noise Immunity: Designed to resist electromagnetic interference.
• Environmental Tolerance: Suitable for harsh industrial areas.

Installation Guidelines

• Install module in one full-height front rack slot.
• Install matching I/O module in rear slot.
• Connect VGA cable to industrial display panel.
• Ensure proper grounding before power connection.
• Use approved enclosure for hazardous locations.

Commissioning & Maintenance Convenience

• Front LEDs allow fast health verification.
• Plug-and-play configuration within 3500 system.
• Minimal calibration required.
• Firmware upgrades supported through system tools.
• Simple replacement reduces downtime.

Compatibility Requirements

• Requires 3500/22 Transient Data Interface (TDI).
• Compatible with 3500 rack configuration software.
• Supports operation display and data acquisition software.
• Works with Advantech industrial touch displays.

Certifications & Compliance

• CSA/NRTL/C Class I Division 2 approved
• FCC Part 15 compliant
• CE and UL safety standards
• EMC Directive 2014/30/EU
• Low Voltage Directive 2014/35/EU
• RoHS compliant

Packaging List

• 3500/94M VGA Display Module
• I/O Module
• Panel mounting hardware
• Installation documentation
• Factory inspection protection packaging

Warranty & Shipping

• 12-month warranty provided after delivery.
• Global shipping via FedEx, UPS, and DHL.
• Secure industrial packaging for transport safety.

Typical Applications & Diagnostic Capability

• Steam and gas turbine monitoring
• Compressors and pumps protection systems
• Power generation equipment supervision
• Oil & gas rotating machinery diagnostics
• Real-time alarm visualization and analysis
• Maintenance decision support display

FAQ – Practical Questions

• Can this module operate in hazardous areas?
• Yes. Receiver units support Class I Division 2 environments.
• Does the module require extra configuration?
• No. Configuration integrates through rack software.
• What display types are supported?
• Industrial VGA displays with touch interface are recommended.
• How to choose between display sizes?
• Select based on panel space and operator visibility distance.
• Is maintenance difficult?
• No. Modular design enables fast replacement.
• What should buyers confirm before ordering?
• Verify TDI module presence and firmware compatibility.

Selection Guidance

• Choose certified approval options for hazardous sites.
• Confirm rack slot availability before installation.
• Select industrial displays with matching voltage input.
• Ensure firmware meets minimum revision requirements.
• Consider operator viewing distance when selecting screen size.
