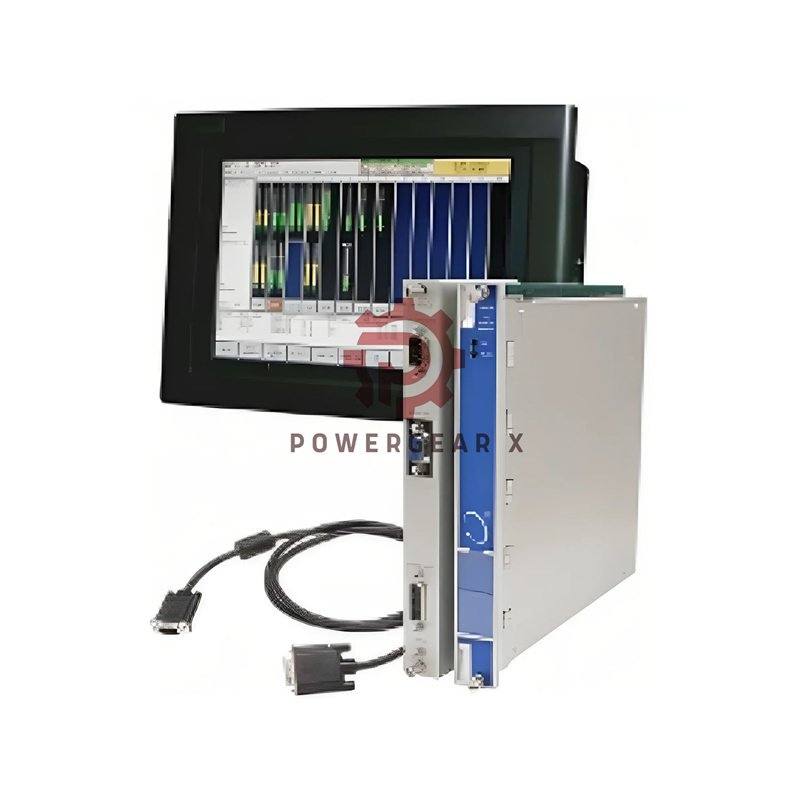

3500/94M-02-00-02 Bently Nevada VGA Display Module System Display

Product Description

The 3500/94M VGA Display Module delivers clear system data visualization.
Designed for the Bently Nevada 3500 platform.
Built for continuous industrial operation.
Supports local and remote diagnostics.

• Manufacturer: Bently Nevada
• Product Type: VGA Display Module
• Country of Origin: USA
• Primary Function: System status, values, and alarms display

Configuration Breakdown

• 3500/94M-AA-BB-CC
• AA: Display size and mounting
• 02: 10 inch display, 19 inch rack mount
• BB: KVM extender and router cables
• 00: None
• CC: Agency approval option
• 02: CSA, ATEX, IECEx multi-approval

Technical Data

• Brand: Bently Nevada
• Model: 3500/94M-02-00-02
• Power consumption: 4.6 W maximum
• Power output: 24 Vdc front port
• VGA output: Analog RGB with sync
• RS232 port: Touch controller input
• Network: High speed system communication
• Status indicators: OK LED, TX RX LED
• Resolution: Determined by connected display
• Measurement range: System parameters only
• Frequency response: System dependent
• Sensitivity and linearity: Controlled by 3500 modules

Environmental and Reliability

• Operating temperature: -20°C to 65°C
• Storage temperature: -40°C to 85°C
• Humidity tolerance: Up to 95 percent non-condensing
• EMI resistance: Industrial EMC compliant
• Designed for continuous duty operation

Mechanical Characteristics

• Monitor module size: 241.3 x 24.4 x 241.8 mm
• Monitor module weight: 0.73 kg
• I O module size: 241.3 x 24.4 x 99.1 mm
• I O module weight: 0.34 kg
• Total shipping weight: Approximately 1.07 kg

Installation Guidelines

• Occupies one full height front slot
• Requires one full height rear I O slot
• Compatible with standard 19 inch racks
• Front access for fast wiring and service

System Compatibility

• Requires 3500/22 TDI module
• Firmware version 4.06 Rev C or newer
• Compatible with 3500 rack configuration software
• Supports Advantech 10 inch and 15 inch displays

Diagnostics and Usability

• Live system status visualization
• LED indicators simplify fault detection
• Touch screen support via RS232
• Fast troubleshooting during operation

Compliance and Certifications

• FCC Part 15 compliant
• EN 61000-6-2 and EN 61000-6-4
• UL EN 61010-1 and CSA C22.2
• RoHS Directive 2011/65/EU
• ATEX and IECEx for approved configurations

Typical Applications

• Power generation turbines
• Oil and gas compressors
• Large rotating machinery
• Critical asset condition monitoring rooms

Package Contents

• 3500/94M VGA Display Module
• I O module
• Standard factory documentation

Warranty and Shipping

• Warranty period: 12 months
• Shipping methods: FedEx, UPS, DHL
• Professional export packaging included

FAQ

• What is the main purpose of this module
  It provides a visual interface for 3500 system data.
• Can it work in hazardous areas
  Yes, with approved 10 inch display configuration.
• Is a separate power supply required
  No, power is supplied by the 3500 rack.
• How do I choose between 10 inch and 15 inch displays
  Choose 10 inch for hazardous approvals.
  Choose 15 inch for larger viewing needs.
• Is this module suitable for retrofit projects
  Yes, it fits existing 3500 racks easily.

Selection Guidance

• Confirm rack space availability
• Verify firmware compatibility
• Select display size based on environment
• Check required agency approvals
