330193-10-20-50-05 Bently Nevada 3300 XL 8 mm Probe – 5M Cable, HazLoc Certified

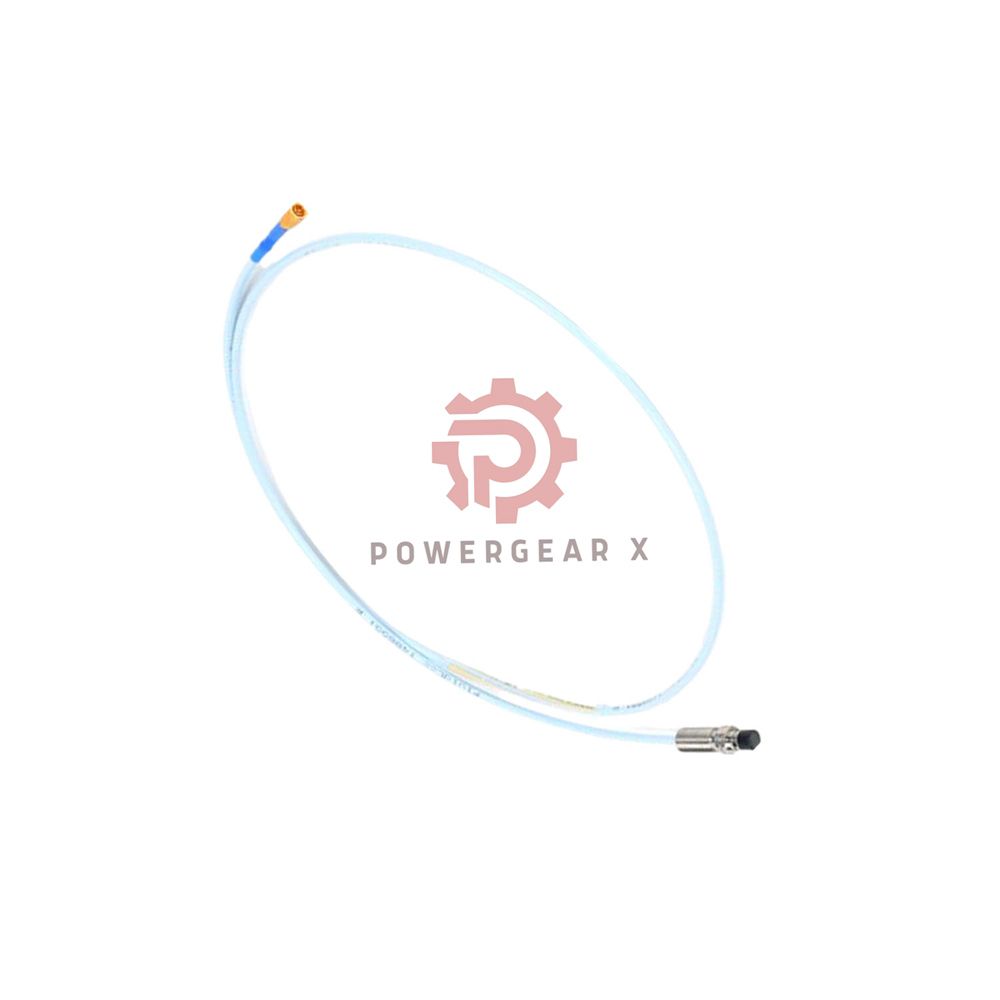

330193-10-20-50-05 Bently Nevada 3300 XL 8 mm Probe

Brand: Bently Nevada · Series: 3300 XL · Type: 8 mm proximity probe · Thread: M10 x 1 · Cable: 5.0 meters · Approval: CSA, ATEX, IECEx.

Made in U.S.A. Non-contact sensor for vibration, position, speed. Built for harsh industrial sites.

Questions? sales@powergearx.com | +86 18030005825 (WhatsApp)

1. Model Code – Suffix Tree

• 330193 – Base: 3300 XL 8 mm Probe, M10 x 1 thread, without armor
  • Suffix 1: 10 – Unthreaded length
    • 10 = 100 mm unthreaded length
    • Max: 230 mm · Min: 0 mm
  • Suffix 2: 20 – Overall case length
    • 20 = 200 mm case length
  • Suffix 3: 50 – Total cable length
    • 50 = 5.0 meters (16.4 feet)
    • Use only with 5 meter Proximitor sensor
    • DC resistance: 8.73 ± 0.50 Ω
  • Suffix 4: 05 – Agency approval
    • 05 = CSA, ATEX, IECEx approvals (intrinsically safe)

2. Key Technical Data

• Electrical specs
  • Sensitivity: 7.87 V/mm (200 mV/mil) ±5%
  • Linear range: 2 mm (80 mils)
  • Linearity: ±0.025 mm (±1 mil) max
  • Frequency response: DC to 10 kHz
  • Resolution: sub-micron
• Environment & materials
  • Temp range: -52°C to +177°C (-62°F to +350°F)
  • Below -34°C may shorten pressure seal life
  • Humidity: <3% scale factor change at 93% RH (56 days)
  • Tip: Polyphenylene sulfide (PPS)
  • Case: AISI 303/304 stainless steel
  • Thread: M10 x 1, max engagement 15 mm
  • Seal: Viton® O-ring (differential pressure)
• Approvals (suffix 05)
  • ATEX, CSA, IECEx certified
  • Class I, Zone 0: AEx/Ex ia IIC T5…T1 Ga
  • Class I, Div 1, Groups A-D; Class II, III
  • Nonincendive: Class I, Zone 2 / Div 2

3. Installation Quick Guide

• Mounting
  • Thread M10 x 1, tighten to 10–12 N·m
  • Do not exceed 15 mm thread depth
• Cable care
  • 5.0 m cable – avoid sharp bends
  • Secure with clamps to stop vibration stress
• Pressure seal note
  • Viton® O-ring seals differential pressure
  • Not pressure tested before ship. Contact us if test needed.

4. Compatibility & System Setup

• Proximitor required
  • Use only with Bently Nevada 5 meter Proximitor sensor
  • Compatible with 3300 XL 8 mm Proximitor (330180/330181)
• Extension cables (compare)
  • 330190-045-00-00 – 0.45 m ETR cable, standard
  • 330190-045-01-05 – 0.45 m with armor, higher protection
• Total length rule
  • Probe + extension ≤ 9.5 m for best accuracy
  • This 5.0 m probe works alone or with short extensions

5. Expert Review & Manager’s Insight

• Engineer’s take
  • 5-meter cable saves extra junction boxes – direct run to Proximitor
  • Approved for Zone 0 hazardous areas, reduces certification complexity
  • Stable signal even in high EMI, thanks to shielded cable
• Manager’s advice
  • Choose this for long-distance installations without extension cables
  • ATEX/CSA approval speeds up plant acceptance
  • 12-month warranty gives peace of mind
  • We ship in 12-24 hours via FedEx, UPS, or DHL

6. Best Applications & Equipment

• Heavy rotating machines
  • Steam turbines, gas turbines
  • Centrifugal compressors, axial compressors
  • Large generators and motors
• Hazardous area sites
  • Oil & gas, refineries, chemical plants
  • Zone 0 or Division 1 locations
• Long-distance monitoring
  • Remote machinery where Proximitor is far from probe
  • 5.0 m cable eliminates extension cable joints

7. Shipping & Warranty

• Delivery
  • Same-day or next-day dispatch (12-24 hours)
  • Carriers: FedEx, UPS, DHL worldwide
• Warranty
  • 12 months from ship date
  • Covers manufacturing defects
  • Easy RMA via sales@powergearx.com
• Package includes
  • 1 x 330193-10-20-50-05 probe
  • Manual and approval certificate

8. Professional FAQ – 5 New Questions

• Q: Why is this probe only for 5 meter Proximitor?
  • A: 5.0 m cable length matches specific driver impedance. Using wrong Proximitor gives bad readings. Always pair with 5m Proximitor model.
• Q: What approvals come with suffix 05?
  • A: CSA, ATEX, IECEx for Zone 0 (ia) and Zone 2 (nA). Great for oil, gas, chemical plants.
• Q: Can I cut the 5.0 m cable to shorter length?
  • A: No. Cutting changes resistance and calibration. Use exact length for accurate signal.
• Q: How to test probe before installing?
  • A: Measure DC resistance center to outer. Should be 8.73 ± 0.50 Ω. Also check tip for damage.
• Q: What is the real shipping time?
  • A: We ship within 12-24 hours after order. FedEx, UPS, DHL deliver in 2-5 days globally.

9. Selection Guide – Compare & Choose

• Pick 330193-10-20-50-05 if you need:
  • 5.0 meter cable without extra extensions
  • Full hazardous area approvals (CSA, ATEX, IECEx)
  • M10 x 1 thread, 100 mm unthreaded length
  • Works with 5 meter Proximitor only
• Extension cable comparison
  • 330190-045-00-00 – 0.45 m, non-armored, basic
  • 330190-045-01-05 – 0.45 m with armor, extra protection for rough environments
• Pro tip
  • If you need longer reach, combine 5.0 m probe with short extension cable. Stay under 9.5 m total.
  • For high temperature above 177°C, ask for extended range version.

10. Need Help? Contact Us

Email: sales@powergearx.com · WhatsApp: +86 18030005825
We offer engineering support and fast quotes.
