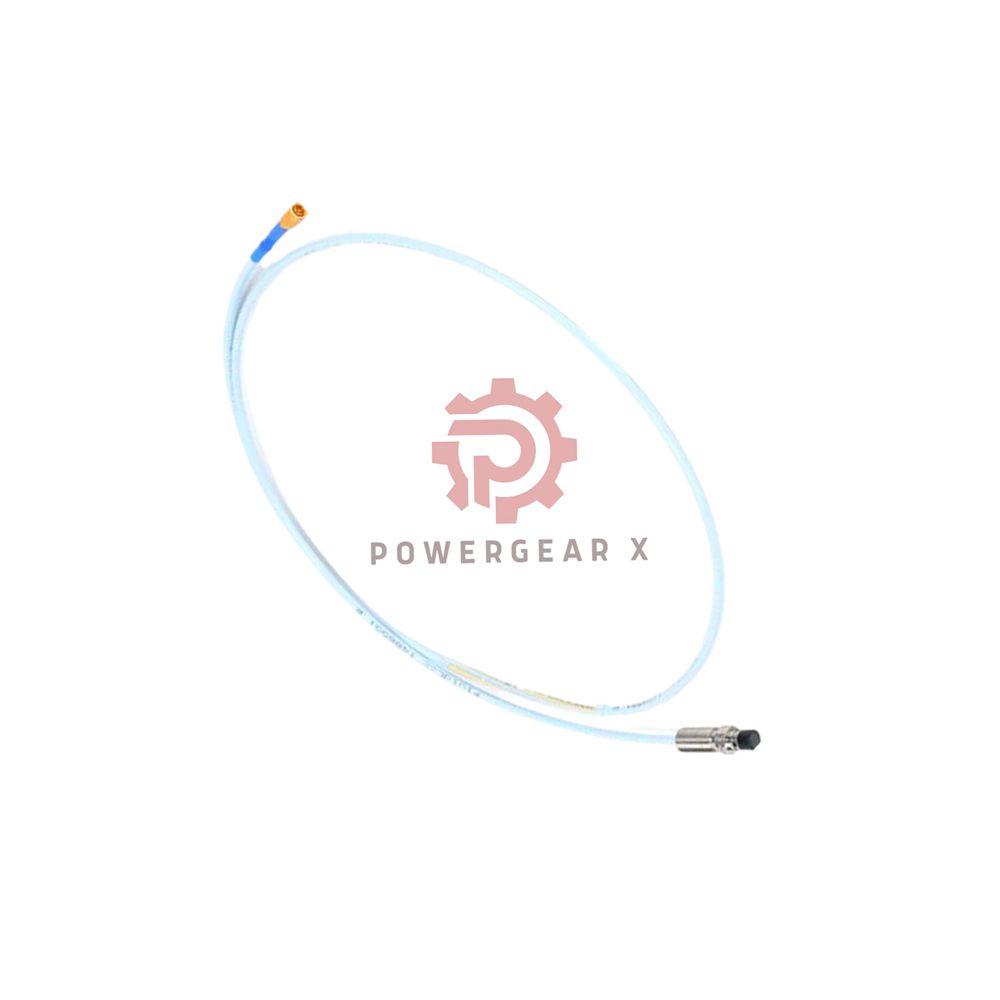

330193-00-03-50-05 Bently Nevada 3300 XL 8mm Probe, ATEX Approved, 5m Cable

Product at a Glance

• 330193-00-03-50-05 – Bently Nevada 3300 XL 8 mm Probe
• Type: M10 x 1 thread, without armor
• Made in U.S.A
• Non-contact eddy current sensor for vibration and position monitoring

Technical Specifications

• ▶ Dimensions & Lengths
  • Unthreaded Length: 0 mm (minimum) / 230 mm (maximum)
  • Overall Case Length: 30 mm
  • Total Probe Length: 5.0 meters (16.4 feet)
  • Important: 5-meter probes work only with 5-meter Proximitor sensor
  • Thread: M10 x 1, max engagement 15 mm
• ▶ Electrical & Resistance
  • Nominal DC Resistance: 8.73 Ω ± 0.50 Ω
  • High linearity for accurate gap measurement
• ▶ Materials
  • Tip: Polyphenylene sulfide (PPS)
  • Case: AISI 303 or 304 stainless steel
  • Seal: Viton® O-ring for differential pressure
• ▶ Temperature Range
  • Standard Probe: -52°C to +177°C (-62°F to +350°F)
  • Extended Tip: up to +218°C (+425°F)
  • Cable & Connector: -51°C to +260°C (-60°F to +500°F)
  • Caution: below –34°C (–30°F) may damage pressure seal
• ▶ Humidity & Immunity
  • Humidity: less than 3% scale factor change after 56 days at 93% RH (IEC 68-2-3)
  • 60 Hz magnetic field immunity: minimal output voltage (0.0004 to 0.0045 mV pp/Gauss)
• ▶ Hazardous Area Approvals
  • CSA, ATEX, IECEx – Option 05
  • Intrinsically Safe (ia): Ex ia IIC T5…T1 Ga (Zone 0)
  • Non-incendive (nA/ec): Ex nA IIC T5…T1 Gc (Zone 2, Class I Div 2)
  • Temperature classes available from T1 to T5 based on ambient range

Installation & Maintenance

• ✔ Mount using M10x1 threaded hole, hand tighten plus 1/4 turn
• ✔ Set initial gap between 0.5 mm and 1.5 mm for best linear range
• ✔ Clean tip gently with isopropyl alcohol if needed
• ✔ Inspect cable and connector for wear during routine checks
• ✔ Not pressure tested before shipping – contact support if pressure test required
• ✔ Use only with 5-meter Proximitor sensor for correct system calibration

Comparison with Extension Cables

• For standard extension needs, consider these cables:
  • 330190-070-00-05 – Standard extension cable with approvals
  • 330190-070-00-CN – Standard cable, CN version
• Selection tip: This 5.0m probe replaces the need for a separate extension cable. Use extension cables when you need extra length beyond 5 meters or armored protection.
• Related product: 3300 5mm Proximity Probes for smaller target surfaces.

Expert Review & Manager’s Insight

• Manager’s Insight: “This 5-meter probe simplifies installations. No extra extension cable needed. With full hazardous area approvals, it’s perfect for refineries and chemical plants. Stocked for 24-hour shipment – order now to keep your critical spares ready.”
• Expert Review: “Field data shows excellent stability over long cable runs. The Viton seal withstands harsh chemicals. Easy to install and fully compatible with 5-meter Proximitor systems. A reliable choice for predictive maintenance in explosive environments.”

Professional FAQ

• Q: Why must this 5-meter probe be used with a 5-meter Proximitor sensor?
  A: The system is calibrated for exact cable length. Mixing lengths causes measurement errors. Always pair 5m probe with 5m Proximitor.
• Q: What are the hazardous area approvals for this probe?
  A: It has CSA, ATEX, IECEx approvals. Use with barriers for Zone 0 (ia) or non-incendive for Zone 2 (nA/ec). Check temperature class based on your ambient.
• Q: Can I cut the cable to a shorter length?
  A: No. Cutting changes resistance and calibration. Order the correct length from the start.
• Q: How do I store the probe if not used right away?
  A: Keep in original packaging. Store between -52°C and +177°C. Avoid bending the cable sharply. Check O-ring before installation.
• Q: What warranty and shipping options are available?
  A: 12-month warranty against defects. Orders ship within 12-24 hours via FedEx, UPS, or DHL. Express tracking included.

Selection & Purchasing Guide

• ✔ Confirm total length (5.0 m) fits your machine-to-rack distance
• ✔ Verify hazardous area approval (05) matches your plant requirements (ATEX, CSA, IECEx)
• ✔ Ensure your Proximitor sensor is rated for 5-meter cable systems
• ✔ Check thread compatibility – M10x1 is standard for many compressors and turbines
• ✔ Warranty: 12 months against manufacturing defects
• ✔ Shipping: 12-24 hours dispatch from stock. Express via FedEx, UPS, DHL

Packaging & Support

• 📦 Box includes: 1 probe, calibration record, installation sheet
• 📞 Contact us: sales@powergearx.com | +86 18030005825 (WhatsApp)
• ✅ Technical support available – we answer within 2 business hours
