330193-00-02-05-CN Bently Nevada | 3300 XL 8 mm Probe M10 x 1 Thread

Product Overview: Bently Nevada 3300 XL 8 mm Probe

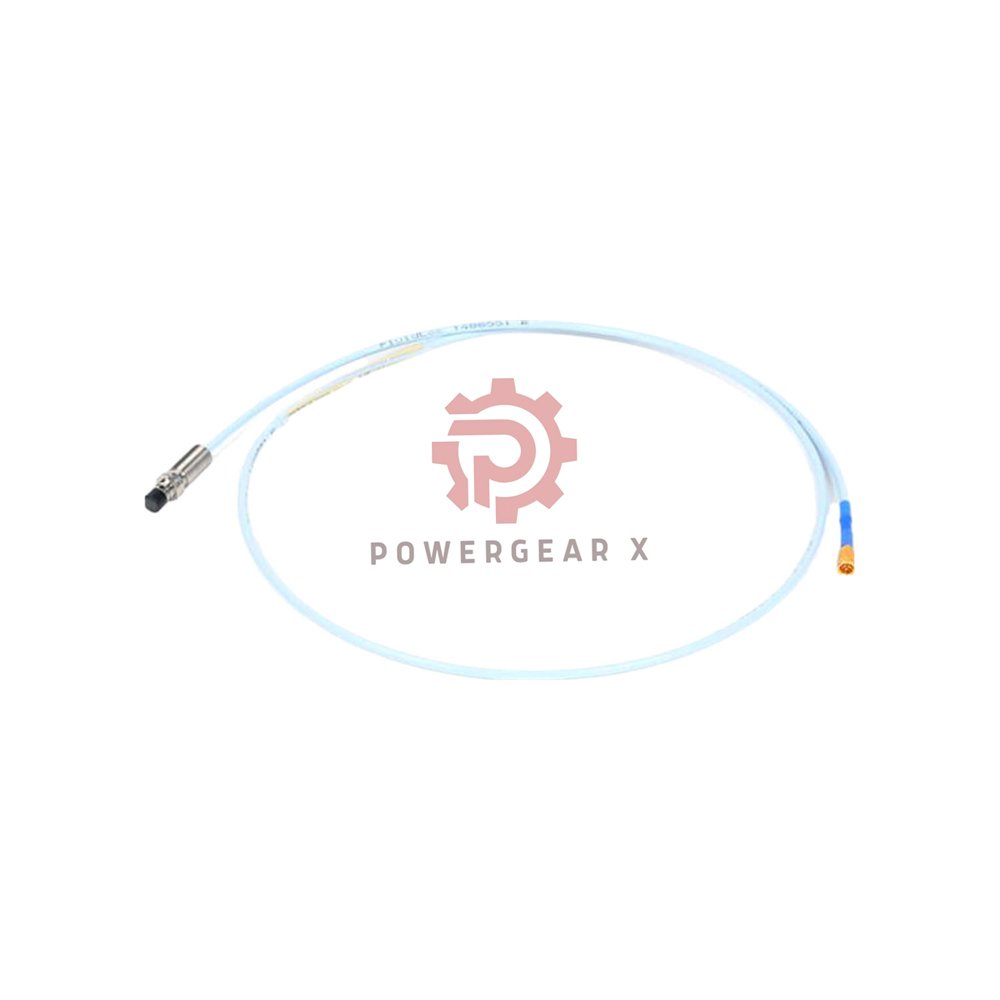

330193-00-02-05-CN is a 3300 XL 8 mm Probe with M10 x 1 thread, without armor.
Its compact design suits space-limited installations.
Certified for hazardous areas with CSA, ATEX, IECEx approvals.
Made in U.S.A. for reliable performance.

Technical Specifications

• Brand: Bently Nevada
• Model: 330193-00-02-05-CN
• Series: 3300 XL
• Type: 8 mm Probe, without armor
  • Thread: M10 x 1
    • Max Thread Engagement: 15 mm
  • Length Configurations:
    • Unthreaded Length: 0 mm to 230 mm (configurable)
    • Overall Case Length Option: 20 mm (code 02)
    • Total Length Option: 0.5 meter / 1.6 feet (code 05)
  • Agency Approval Option: Country Specific (code CN)
• Electrical
  • Nominal DC Resistance (0.5 m length): 7.45 ± 0.50 Ω
    • Measured from center conductor to outer conductor
• Materials
  • Probe Tip: Polyphenylene sulfide (PPS)
  • Probe Case: AISI 303 or 304 stainless steel (SST)
• Pressure Seal
  • Type: Viton® O-ring
  • Design: Seals differential pressure between tip and case
  • Note: Not pressure tested before shipment. Contact custom design department if testing is required.
• Environmental Ratings
  • Temperature Range (Standard Probe): -52°C to +177°C (-62°F to +350°F)
  • Extended Temperature Range:
    • Probe Tip: -52°C to +218°C (-62°F to +425°F)
    • Cable & Connector: -51°C to +260°C (-60°F to +500°F)
  • Low Temperature Caution: Exposure below -34°C (-30°F) may cause premature pressure seal failure.
  • Relative Humidity: Less than 3% change in Average Scale Factor (ASF) after 56 days at 93% RH per IEC 68-2-3.
• Hazardous Area Approvals
  • ia (Intrinsically Safe):
    • Class I, Zone 0: AEx/Ex ia IIC T5…T1 Ga
    • Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III
    • Requires installation with intrinsically safe zener barriers (drawing 141092) or galvanic isolators.
  • nA / ec (Non-incendive):
    • Class I, Zone 2: AEx/Ex nA IIC T5…T1 Gc
    • Class I, Division 2, Groups A, B, C, D
    • Class I, Zone 2: AEx/Ex ec IIC T5…T1 Gc
    • Requires installation with non-incendive circuit per drawing 140979.
  • Temperature Schedule (Probe Only):
    • EPL Ga and Gc:
      • T1: -55°C to +232°C
      • T2: -55°C to +177°C
      • T3: -55°C to +120°C
      • T4: -55°C to +80°C
      • T5: -55°C to +40°C
    • EPL Dc:
      • T280°C @ Ta -55°C to +232°C
      • T225°C @ Ta -55°C to +177°C
      • T170°C @ Ta -55°C to +120°C
      • T130°C @ Ta -55°C to +80°C
      • T105°C @ Ta -55°C to +100°C
      • T90°C @ Ta -55°C to +40°C

Measurement Performance

• Range: 8 mm non-contact eddy current
• Frequency Response: 0 to 10 kHz
• Sensitivity: 7.87 V/mm (200 mV/mil)
• Linearity: ±0.2 mm (±0.008 in) over full range
• Resolution: 0.001 mm (infinite system resolution)
• Noise Immunity: Shielded design for electrically noisy environments

Installation & Compatibility

• Mounting Thread: M10 x 1
  • Maximum Thread Engagement: 15 mm
• Compact Design: Case length only 20 mm, ideal for tight spaces
• Compatible Systems: Fully compatible with 3300 XL monitors, proximitors, and extension cables
• Recommended Extension Cables:
  • 330190-040-00-05 – with hazardous area approvals
  • 330190-040-00-CN – country specific version
• Selection Note: Total system length = probe length + extension cable length. Match with monitor specifications.

Maintenance & Field Diagnostics

• No Calibration Needed: Solid-state design ensures long-term stability
• Quick Health Check: Measure DC resistance between center and outer conductor
  • Expected Value (0.5 m): 7.45 ± 0.50 Ω
• Easy Replacement: Interchangeable with same series probes

Package & Delivery

• Package Includes: 1 x 3300 XL 8 mm Probe (without armor)
• Warranty: 12 months from shipment date
• Shipping: 12-24 hours after order confirmation
• Carriers: FedEx, UPS, DHL worldwide express

Manager’s Insight

330193-00-02-05-CN is built for space-constrained equipment.
The 20 mm short case and M10 thread allow flexible installation in tight spots.
Without armor, it reduces bend radius limits for compact cabling.
Paired with 3300 XL systems, it meets API 670 standards for critical machinery monitoring.

Expert Review

This 8 mm probe prioritizes compactness without sacrificing performance.
>The 0.5 meter total length reduces cable management effort for small machines or retrofit projects.
>Though without armor, it retains the high linearity and wide frequency response of the 3300 XL series.
>It is a cost-effective choice when additional mechanical protection is not required.

Applications & Compatible Equipment

• Small compressors and fans
• Motors and generators
• Pumps
• Gearboxes
• Any rotating machinery with limited installation space

Frequently Asked Questions

• When is the non-armored version the better choice?Choose non-armored when installation space is very tight and cables do not need extra mechanical protection.
• What are the installation requirements for the 20 mm case length?The mounting surface must be flat. Ensure full thread engagement without affecting the pressure seal.
• Is the 0.5 meter total length sufficient for my application?It suits applications where the probe sits close to the proximitor. For longer distances, add an extension cable.
• What does the 12-month warranty cover?It covers manufacturing defects and material issues. Damage from improper installation or misuse is excluded.
• How fast will I receive the item after ordering?Orders ship within 12-24 hours. FedEx, UPS, or DHL typically deliver in 3-5 business days worldwide.
• How do I choose between the two extension cable options?Select 330190-040-00-05 for hazardous area approvals. Select 330190-040-00-CN for standard applications with country-specific certification.
• How can I quickly verify the probe is working on site?Measure DC resistance between center and outer conductor. For 0.5 m length, it should read 7.45 ± 0.50 Ω.
• What temperature limits should I watch for?Standard range is -52°C to +177°C. Extended range tip handles up to +218°C. Avoid operation below -34°C to protect the pressure seal.
