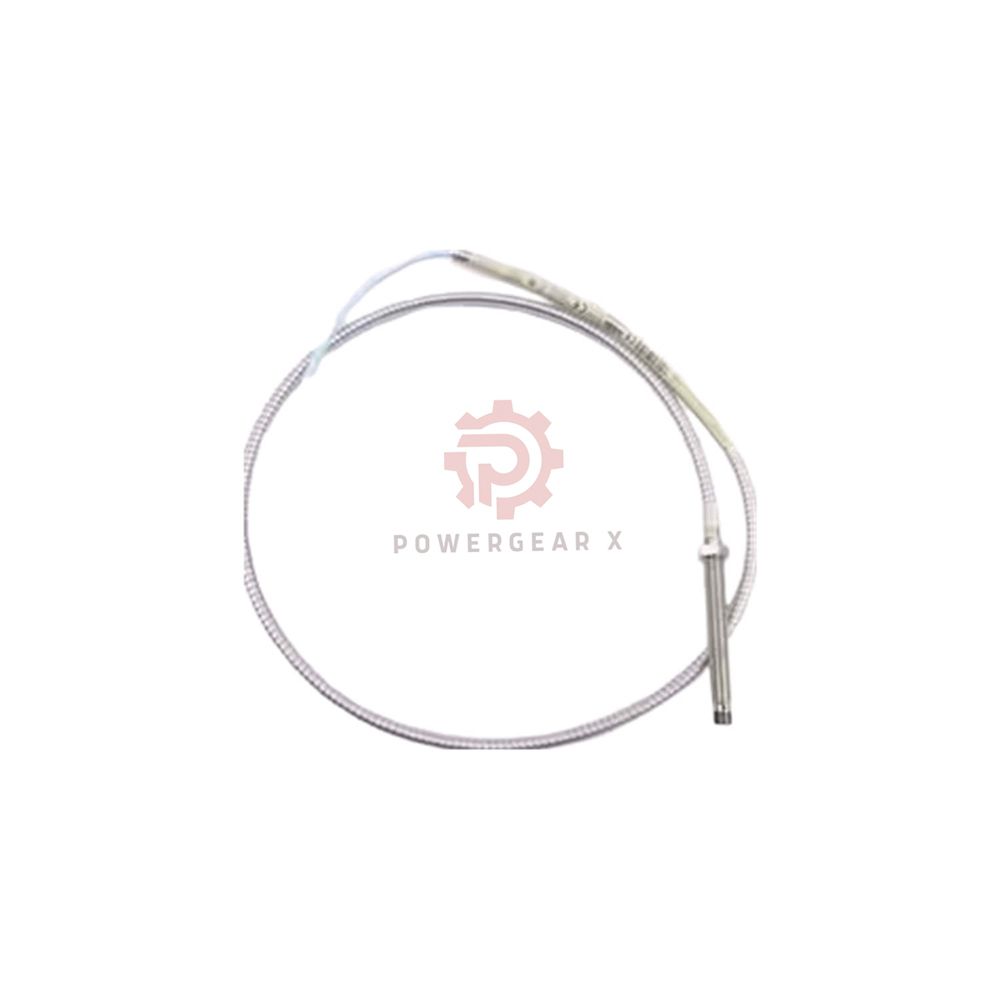

330172-00-20-10-02-00 Bently Nevada 3300 5mm Probe – Flush Tip 1m Cable

330172-00-20-10-02-00 – Bently Nevada 3300 5mm Probe

1/4-28 UNF thread | 1.0m cable | Miniature coaxial ClickLoc connector | PPS tip | AISI 304 SST case | Made in USA

▶ Product Overview

• ▪ 330172-00-20-10-02-00 – 3300 5mm probe from Bently Nevada.
• ▪ Thread: 1/4-28 UNF. Max thread engagement: 0.375 inch.
• ▪ Unthreaded length: 0 inch. Overall case length: 2.0 inch.
• ▪ Total cable length: 1.0 meter (3.3 feet).
• ▪ Connector: Miniature coaxial ClickLoc – standard cable.
• ▪ Probe tip: Polyphenylene sulfide (PPS). Case: AISI 304 SST.
• ▪ Weight: 0.323 kg. Made in USA. No agency approval needed (00).

⎇ Technical Specs – Tree View

• ▸ Identity & Ordering Info
  • └─ Manufacturer: Bently Nevada
  • └─ Series: 3300 5mm Probe
  • └─ Model: 330172-00-20-10-02-00
  • └─ Agency approval: Not required (00)
• ▸ Mechanical & Dimensions
  • └─ Thread: 1/4-28 UNF
  • └─ Unthreaded length: 0 inch (flush tip)
  • └─ Overall case length: 2.0 inch
  • └─ Total cable length: 1.0 meter (3.3 ft)
  • └─ Probe case material: AISI 304 SST
  • └─ Tip material: PPS (Polyphenylene sulfide)
  • └─ Weight: 0.323 kg
• ▸ Electrical & Cable
  • └─ Cable: 75Ω triaxial, FEP insulated
  • └─ Connector: Miniature coaxial ClickLoc
  • └─ DC resistance (center to outer): 7.59Ω ±0.50 (1.0m length)
  • └─ Power needed: -17.5 Vdc to -26 Vdc, max 12 mA
  • └─ Output resistance: 50Ω
  • └─ Supply sensitivity: <2 mV change per volt input change
• ▸ Environmental & Strength
  • └─ Probe temp range: -35°C to +177°C (-31°F to +351°F)
  • └─ Avoid below –34°C – pressure seal may fail
  • └─ Tensile strength: 222 N (50 lbf) case to lead, lead to extension cable
  • └─ Min cable bend radius: 25.4 mm (1.0 inch)
  • └─ Recommended case torque: 5.1 N·m (45 in·lb) – max 7.3 N·m (65 in·lb)
• ▸ Magnetic Field Immunity (60 Hz, 5m system)
  • └─ At 10 mil gap: 0.0119 mV pp/gauss (Proximitor), 0.0004 (probe & cable)
  • └─ At 50 mil gap: 0.0131 (Proximitor), 0.0014 (probe & cable)
  • └─ At 90 mil gap: 0.0133 (Proximitor), 0.0045 (probe & cable)
• ▸ Temperature Classification (Probe only)
  • └─ T1: -55°C to +232°C (EPL Ga/Gc)
  • └─ T2: -55°C to +177°C
  • └─ T3: -55°C to +120°C
  • └─ T4: -55°C to +80°C
  • └─ T5: -55°C to +40°C

🔧 Mounting Guide

• ▪ Drill & tap: Use #3 or larger tap drill for 1/4-28 thread.
• ▪ Max engagement: Do not exceed 0.375 inch thread depth.
• ▪ Tighten: 5.1 N·m (45 in·lb) recommended. Never exceed 7.3 N·m.
• ▪ Bend radius: Keep cable bends larger than 1 inch.

🔄 Works With

• ▪ Proximitor sensors: Bently Nevada 3300 XL series.
• ▪ Extension cables: 3300 series triaxial cables (up to 9m total).
• ▪ Monitoring systems: 3500, 1900, or 2300 series racks.

✅ Certifications

• ▪ Agency approval: Not required (00) – for non-hazardous areas.
• ▪ Made in USA – Bently Nevada original.
• ▪ Meets API 670 standards for proximity probes.

🎯 Expert Review & Manager’s Insight

• ▪ Expert Review: “Flush tip design (0 unthreaded) gives maximum sensitivity near the thread. Great for tight bearing housings. ClickLoc connector locks secure.”
• ▪ Manager’s Insight: “We stock this 1m version for quick replacements. No agency approval means faster delivery. 222N pull strength survives rough maintenance.”

⚙️ Best For These Machines & Jobs

• ▸ Equipment that fits
  • └─ Steam turbines & gas turbines
  • └─ Centrifugal compressors
  • └─ Large fans & blowers
  • └─ Gearboxes & pumps
• ▸ Use cases
  • └─ Shaft vibration monitoring (radial)
  • └─ Thrust position measurement (axial)
  • └─ Keyphasor timing for speed & phase
  • └─ Eccentricity monitoring in large motors

❓ Frequently Asked Questions

• Q1: What does “unthreaded length 00” mean for mounting?
  A: It means flush tip. The probe face sits at the thread start. Best for shallow mounting holes.
• Q2: Can I use this probe with a 5m extension cable?
  A: Yes. Total system length (probe + extension) must not exceed 9m. Keep impedance matched.
• Q3 (experience): My signal jumps at high temp. Why?
  A: Check if temperature exceeds 177°C. Use T1 or T2 class for high heat. Add cooling if needed.
• Q4 (purchasing guide): Warranty & shipping details?
  A: 12 months warranty. Ships 12-24 hours after order. Carriers: FedEx, UPS, DHL. Tracking provided.
• Q5 (buying tip): Do I need a special proximitor for this 1m probe?
  A: No. Standard 3300 XL proximitor works. Set gap to 1.27mm (50 mils) for best linear range.

📊 Compare With Other Bently Nevada Probes

• ▪ 330171-00-20-90-02-00 – 5mm probe with 9m cable: View details →
• ▪ 330171-00-08-50-02-CN – 5mm probe with 5m cable, CN approval: View details →
• ▪ Our 330172-00-20-10-02-00 has 1m cable and flush tip. Ideal for short runs and tight spots.

🛒 Buying Guide & Support

• ▪ Check thread engagement: Max 0.375 inch. Deeper may damage probe.
• ▪ Temperature match: Pick correct T-class for your hazard zone.
• ▪ Need longer reach? Add extension cable – do not splice.
• ▪ Questions? Email sales@powergearx.com or WhatsApp +86 18030005825.
