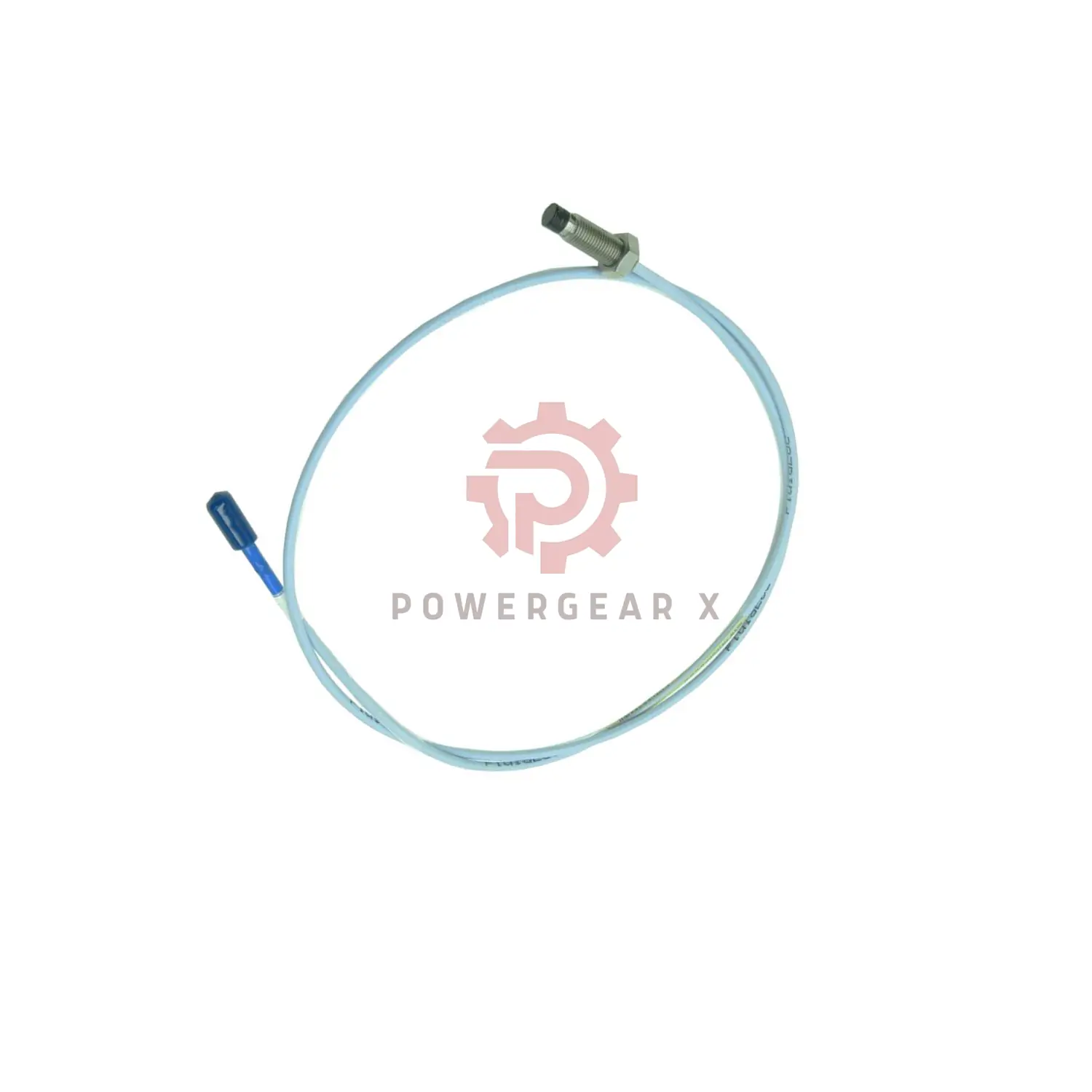

Name: 330171-00-08-50-02-CN Proximity Probe | Bently Nevada 5mm Long Cable 16.4ft PPS
SKU: 330171-00-08-50-02-CN
Availability: InStock

Product details

🔹 Expert review – long-reach 5mm precision

Our senior engineers verified: the Bently Nevada 330171‑00‑08‑50‑02‑CN delivers steady vibration data. It features a PPS tip and 304 stainless case. The 5.0 m cable (16.4 ft) allows remote mounting from machinery. Miniature ClickLoc connector (02 option) secures firmly. This probe tolerates –35 °C to +177 °C. It matches 3300 5mm Proximity Probes performance standards.

🔹 Manager’s insight – why choose 08‑50‑02‑CN?

For plant reliability managers: the 330171‑00‑08‑50‑02‑CN reduces cable splicing needs. Its 0.8 in case (08 option) fits narrow bearing housings. Total length 5.0 m reaches distant monitors without extension cable. 12‑24 h dispatch via FedEx, UPS, DHL. 12‑month warranty included. All 5mm Proximity Probes in this family share the same rugged design.

Model tree – configuration decoded

330171 – 5mm probe platform
- 00 – unthreaded length: 0 in (standard)
- 08 – overall case length: 0.8 in
  - 50 – total length: 5.0 metres (16.4 ft)
- 02 – connector: miniature coaxial ClickLoc (std cable)
  - CN – agency approval: country specific (China)
Tip material: PPS (polyphenylene sulfide)
Case material: AISI 304 SST
Thread: 1/4‑28 UNF, max engagement 0.375 in
Weight: 0.323 kg

Technical data – core specifications

Brand: Bently Nevada
Model: 330171‑00‑08‑50‑02‑CN
Measurement range: 2 mm (typical 5mm probe linear range)
Frequency response: 0 to 10 kHz (system dependent)
Sensitivity: 200 mV/mil (standard)
Linearity error: ≤±0.025 mm
Resolution: infinitesimal (analog)
Temperature range: probe –35 °C to +177 °C
Environment: FEP insulated, 75 Ω triaxial cable
Immunity: 60 Hz magnetic fields ≤300 gauss
Power: –17.5 to –26 Vdc, <12 mA
Output resistance: 50 Ω
DC resistance (5m): 8.73 ±0.70 Ω
Tensile strength: 222 N (connector to probe)
Torque (case): 5.1 N·m rec, 7.3 N·m max
Min bend radius: 25.4 mm

Installation & handling

Mounting: drill & tap 1/4‑28, use #3 or larger tap drill. Max thread engagement 0.375 in.
Torque values: case 5.1 N·m (45 in·lb) recommended; connector 0.565 N·m max.
Maintenance: keep ClickLoc clean; avoid cable bend <25 mm.
Compatibility: works with 3300 XL systems and 5mm extension cables.
Agency approval: CN (China‑specific) – helps site acceptance.
Package includes: 1x probe 330171‑00‑08‑50‑02‑CN, certificate.
Warranty: 12 months from shipment.

Compare with similar 330171 variants

330171‑00‑20‑10‑02‑00 – 2.0 in case, 1.0 m cable, 02 connector, non‑CN. view
330171‑00‑40‑10‑02‑00 – 4.0 in case, 1.0 m cable, 02 connector. view
Selection guide: choose 08‑50‑02‑CN if you need long cable (5 m) and short case (0.8 in). For shorter cable & longer case, consider 20 or 40 options.

Suitable applications

Steam turbines & generators
Centrifugal & axial compressors
Large pumps with journal bearings
Industrial gearboxes
Hydro‑electric turbines

FAQ – practical know‑how

Q: What does the 12‑month warranty cover for this 5m probe?
A: It covers manufacturing defects. We send replacement within 48h after return confirmation. Shipping both ways covered first year.

Q: Can I directly connect this 5.0 m probe to a proximitor without extension?
A: Yes. The 5 m integral cable mates directly to 3300 series proximitors. No extra extension needed. Ensure your monitor supports 5 m system length.

Q: Why choose 02 connector instead of 01?
A: 02 is standard miniature ClickLoc without connector protector. It fits tighter spaces. Use 01 if you need the extra plastic protector for heavy vibration.

Q: How fast is shipping to North America?
A: We ship within 12‑24 h via FedEx, UPS, or DHL. Typical transit 2‑4 business days. Tracking provided.

Q: Does “CN” approval restrict use in other countries?
A: No. CN means it meets China specific standards, but it works worldwide. It often eases inspection in Chinese‑built plants.
