Product details
Compact Leak-Proof Solution: Short-Case FluidLoc Probe

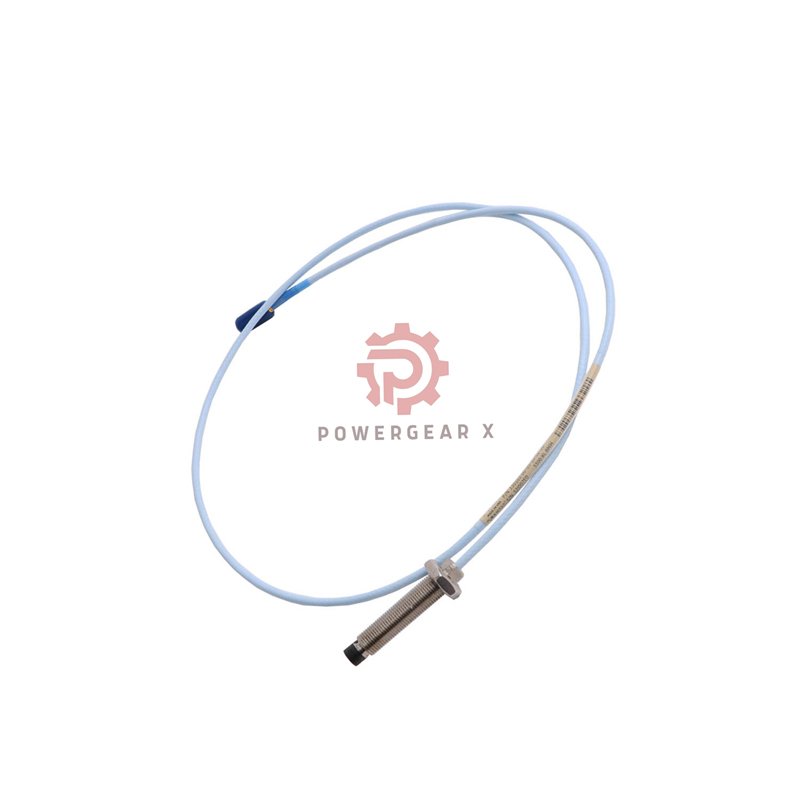

Designed for space-limited and leak-prone applications, the Bently Nevada 330101-00-13-10-12-CN is a specialized 8mm probe from the 3300 XL series. It features a very short 1.3-inch case and is equipped with the FluidLoc leak-proof cable, making it the ideal sensor for protecting compact motors, pumps, and gearboxes in wet industrial environments where oil seepage is a concern.
Configuration Analysis: 330101-00-13-10-12-CN
- Product Base: 330101
- This is a Bently Nevada 3300 XL 8mm Probe.
- Detailed Specification Path:
- -00: Unthreaded Length = 0.0 inch.
- -13: Overall Case Length = 1.3 inches (Very Short).
- -10: Integrated Cable Length = 1.0 meter (3.3 feet).
- -12: Key Feature: ClickLoc Connector with FluidLoc Cable.
- -CN: Country-Specific variant.
Technical Specifications & Protection
- Measurement Performance
- Linear Range: 2.0 mm (80 mils).
- Recommended Gap: 1.27 mm (50 mils) for vibration.
- Sensitivity (ISF): 7.87 V/mm (200 mV/mil).
- Electrical Data (1m): 7.59 Ω ± 0.50 Ω.
- Protected & Rugged Build
- Leak Prevention: FluidLoc cable blocks oil and fluid ingress.
- Durability: Patented TipLoc and CableLoc technology.
- Materials: PPS plastic tip; Stainless steel body; Viton® O-ring seal.
- Operating Limits
- Temperature Range: -52°C to +177°C (Standard).
- Environment: Suitable for wet, oily conditions where space is tight.
Applications & Customer Value
- Space-Constrained Wet Locations: Perfect for small pumps, compact gearboxes, or motors with shallow mounting bosses in areas prone to oil leaks or splash.
- Prevents Costly Contamination: The FluidLoc feature stops oil from traveling inside the cable to the electrical cabinet, preventing short circuits, corrosion, and false alarms in the monitoring system.
- Simplified Installation in Tight Spaces: The short 1.3-inch case fits where standard probes cannot, and the 1-meter cable is ideal for direct routing to nearby junction points.
- Reliable Sourcing: This specialized probe is backed by a 12-month warranty and can be delivered globally via reliable carriers like FedEx, UPS, and DHL.
Expert FAQ for Compact FluidLoc Probes
Configuration & Use Cases
What is the primary application for a 1.3-inch case probe with FluidLoc?
It is designed for very compact machinery or retrofit situations where mounting depth is extremely limited and the equipment is lubricated, creating a risk of oil leaks contaminating the signal cable.
Why pair a short cable (1m) with a short case?
This configuration is for installations where the probe and its connection point are very close together, such as on a small machine mounted directly to a control panel. It minimizes excess cable for a clean, professional installation.
Technical & Performance
Does the short case affect the probe’s measurement accuracy or sealing?
No. The case length is a mechanical dimension only. The sensing performance, linearity, and tip sealing (Viton® O-ring) are identical to longer probes and are not compromised.
What is the “Country Specific” (-CN) suffix, and does it affect performance?
The -CN suffix typically relates to packaging, documentation, or labeling to meet requirements for a specific country or region (e.g., China). It does not change the probe’s technical specifications or performance.
Ordering & Support
Can I get this model with safety certifications (ATEX, etc.) for hazardous areas?
This specific part number does not include those certifications. For hazardous areas, you would need to select a model with the “-05” suffix. Contact us for help choosing the correct certified and leak-proof model.
For quotes, availability, or help selecting the right compact probe:
Contact our sales engineers:
Email: sales@powergearx.com
WhatsApp: +86 18030005825
