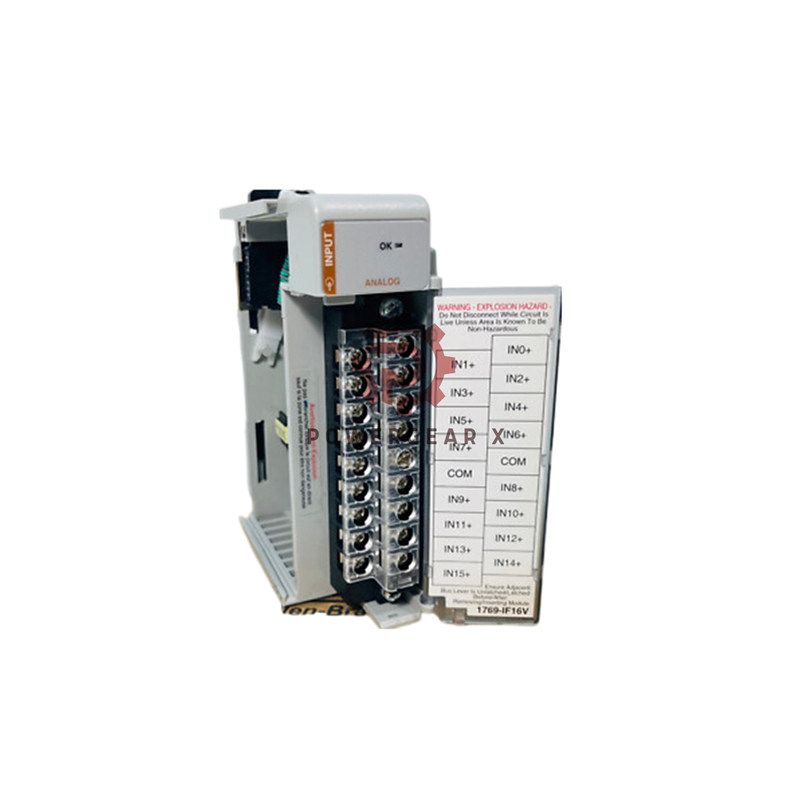

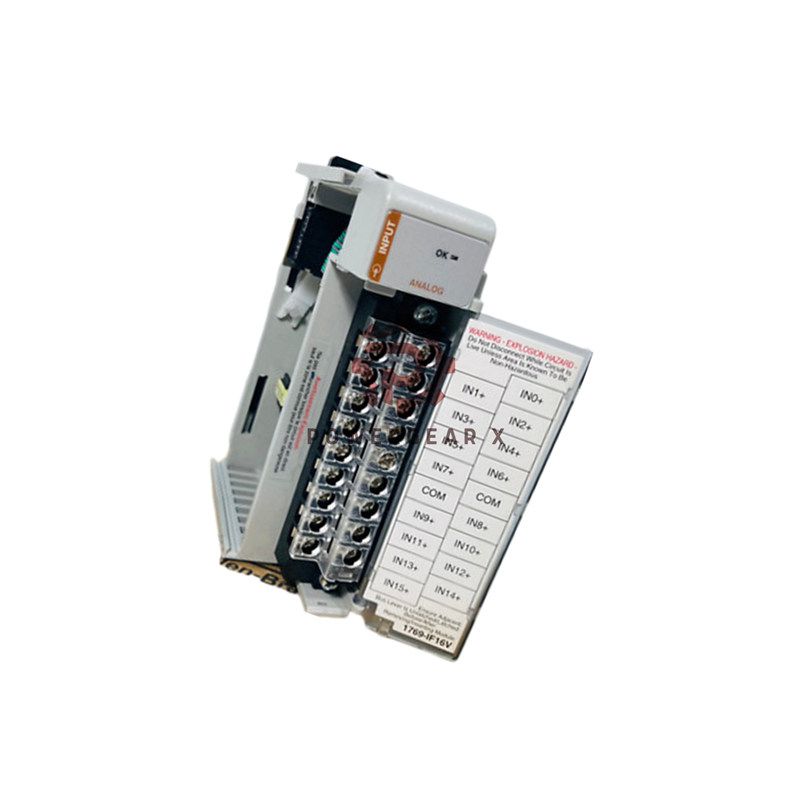

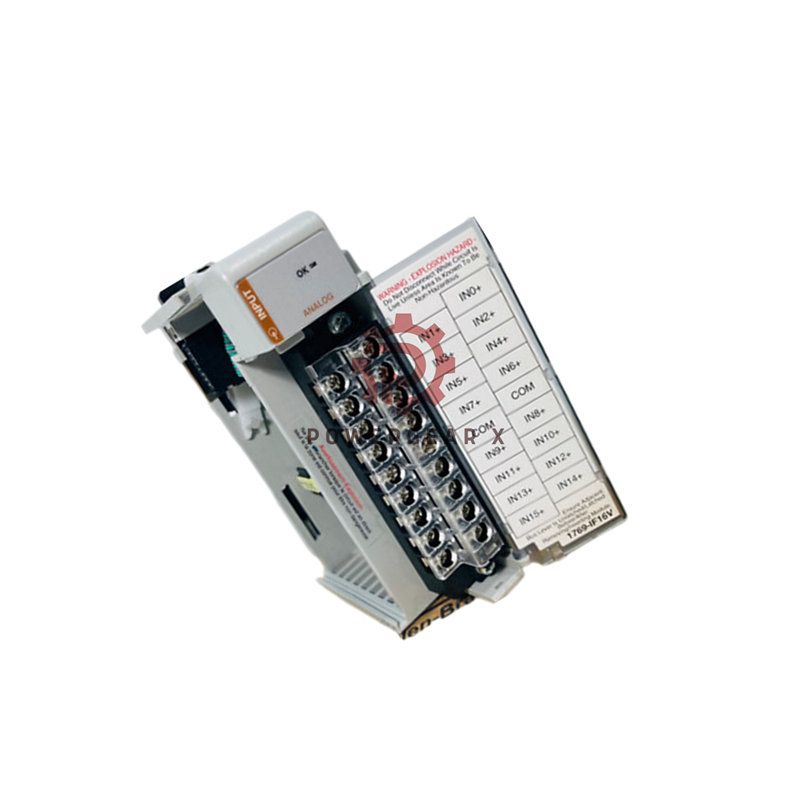

Allen-Bradley 1769-IF16V Analog Input Module
The 1769-IF16V is a high-performance 16-channel voltage input module from Allen-Bradley’s Compact I/O series. It delivers precise analog signal acquisition for industrial automation applications with exceptional accuracy.
Technical Specifications
- Brand: Allen-Bradley / Rockwell Automation
- Model: 1769-IF16V
- Input Channels: 16 single-ended
- Input Ranges: ±10V, 0-10V, 0-5V, 1-5V
- Resolution: 16-bit unipolar, 15-bit bipolar
- Accuracy: ±0.35% at 25°C (77°F)
- Update Rate: 10ms per channel
- Common Mode Rejection: >60 dB at 50/60 Hz
- Input Impedance: 1 MΩ
- Isolation Voltage: 30V DC reinforced
- Power Consumption: 2.4W
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Relative Humidity: 5-95% non-condensing
- Weight: 281g (0.62 lbs)
- Dimensions: 118 x 87 x 35 mm
Compatibility & Integration
- Compatible Controllers: CompactLogix, MicroLogix 1500
- Power Supplies: 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
- Terminal Blocks: 1756-TBCH, 1756-TBSH
- Recommended Cable: Belden 8761 shielded
- Mounting: DIN rail or panel mount
Package Contents
- One 1769-IF16V analog input module
- Installation documentation
- 12-month manufacturer warranty
Shipping Information
- Shipping Weight: 0.62 lbs (product), 2 lbs (packaged)
- Box Dimensions: 8 x 8 x 5 inches
- Shipping Methods: FedEx, UPS, DHL
- Delivery Time: 1-3 business days (varies by location)
Frequently Asked Questions
- What systems is the 1769-IF16V compatible with?
It works with CompactLogix and MicroLogix 1500 control systems. - What is the maximum input voltage this module can handle?
It can handle up to ±10.5V DC without damage. - How accurate is the signal conversion?
It maintains ±0.35% accuracy at room temperature. - Can this module be used in harsh environments?
Yes, it operates reliably in temperatures from 0-60°C and high humidity. - What is the resolution of this analog input module?
It provides 16-bit resolution for unipolar signals and 15-bit for bipolar.
