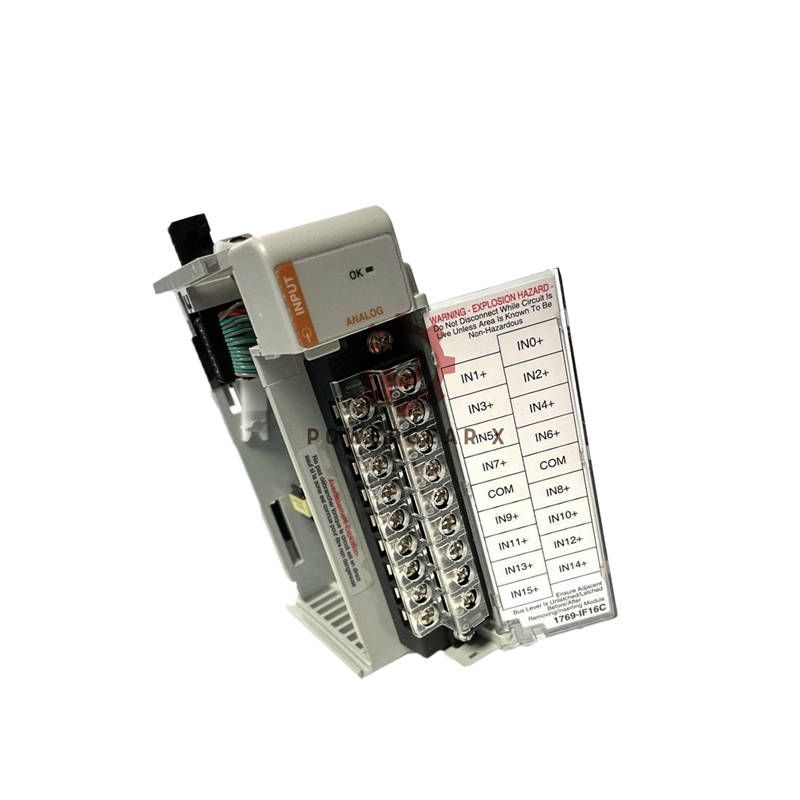

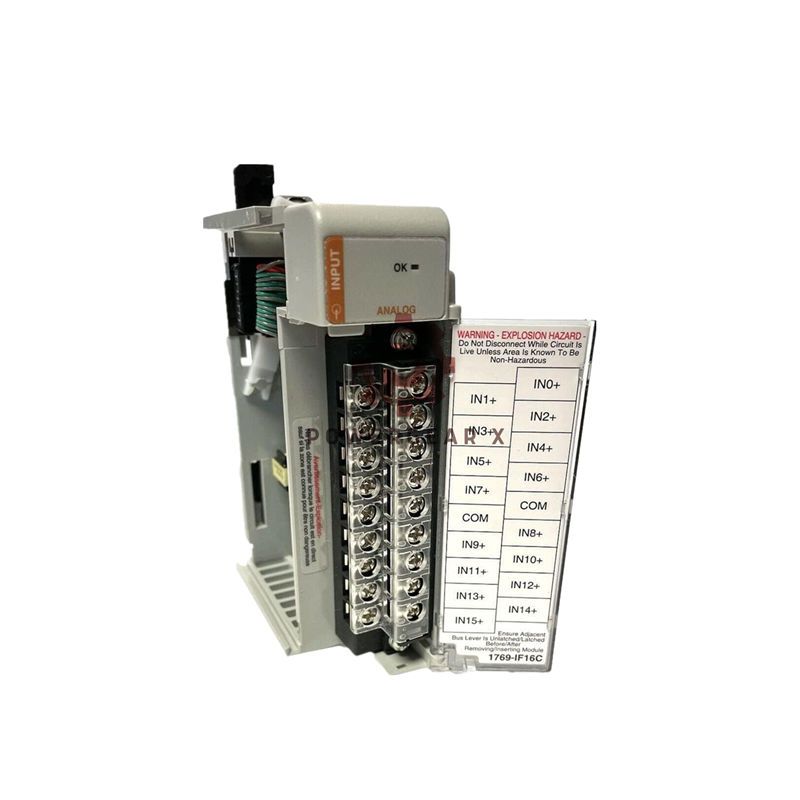

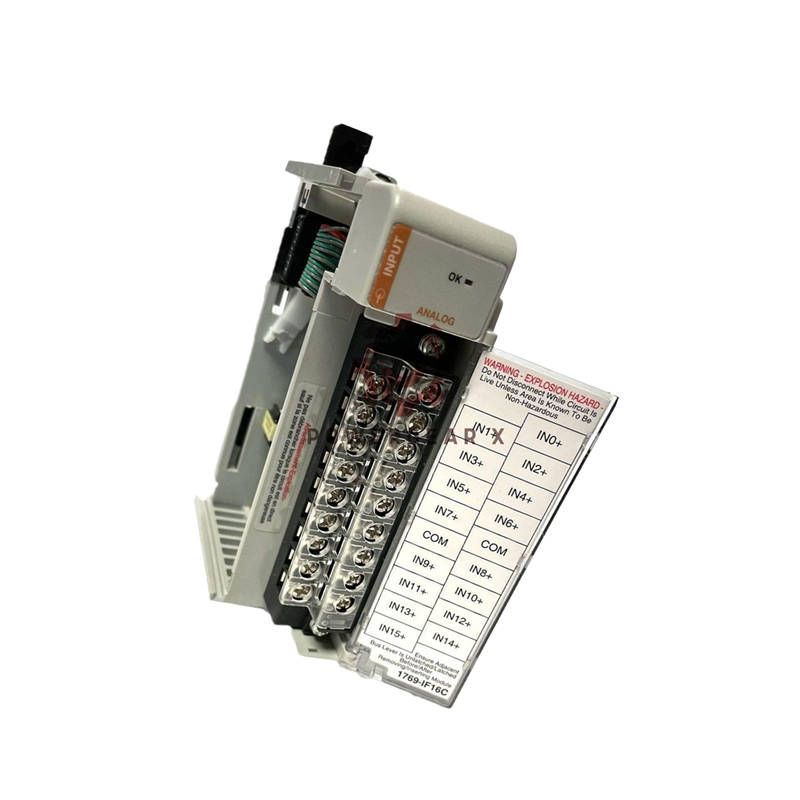

Allen-Bradley 1769-IF16C Compact Analog Input Module
The 1769-IF16C is a high-density analog input module from Allen-Bradley. It offers sixteen single-ended channels for current signals. This module works with CompactLogix and MicroLogix 1500 systems. It is perfect for industrial automation and process control applications.
Detailed Technical Specifications
- Input Channels: 16 single-ended
- Signal Types: 0-20 mA, 4-20 mA
- Full Range: 0-21 mA, 3.2-21 mA
- Resolution: 16 bits unipolar, 15 bits + sign bipolar
- Accuracy: ±0.5% at 25°C
- Input Impedance: 250 ohms
- Power Consumption: 33.6 Watts
- Backplane Current: 190mA @ 5V DC, 70mA @ 24V DC
- Isolation Voltage: 30V DC tested at 710V DC/500V AC
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Shipping Weight: 2 pounds (0.9 kg)
- Dimensions: 118 x 87 x 35 mm (4.65 x 3.43 x 1.38 in)
Shipping & Warranty Information
- Global shipping via FedEx, UPS, and DHL
- Express delivery options available
- Real-time tracking provided
- 12-month warranty
- Technical support included
Frequently Asked Questions
- Can this module work with both CompactLogix and MicroLogix?
Yes, the 1769-IF16C works with both CompactLogix PACs and MicroLogix 1500 PLCs. - What cable should I use for best performance?
We recommend Belden 8761 shielded cable for noise immunity. - Does this module need calibration?
No, the 1769-IF16C does not require calibration. - How many channels can I use simultaneously?
All 16 channels can operate at the same time. - What is the input resolution?
It provides 16-bit resolution for unipolar signals.
