Product details
Product Brief

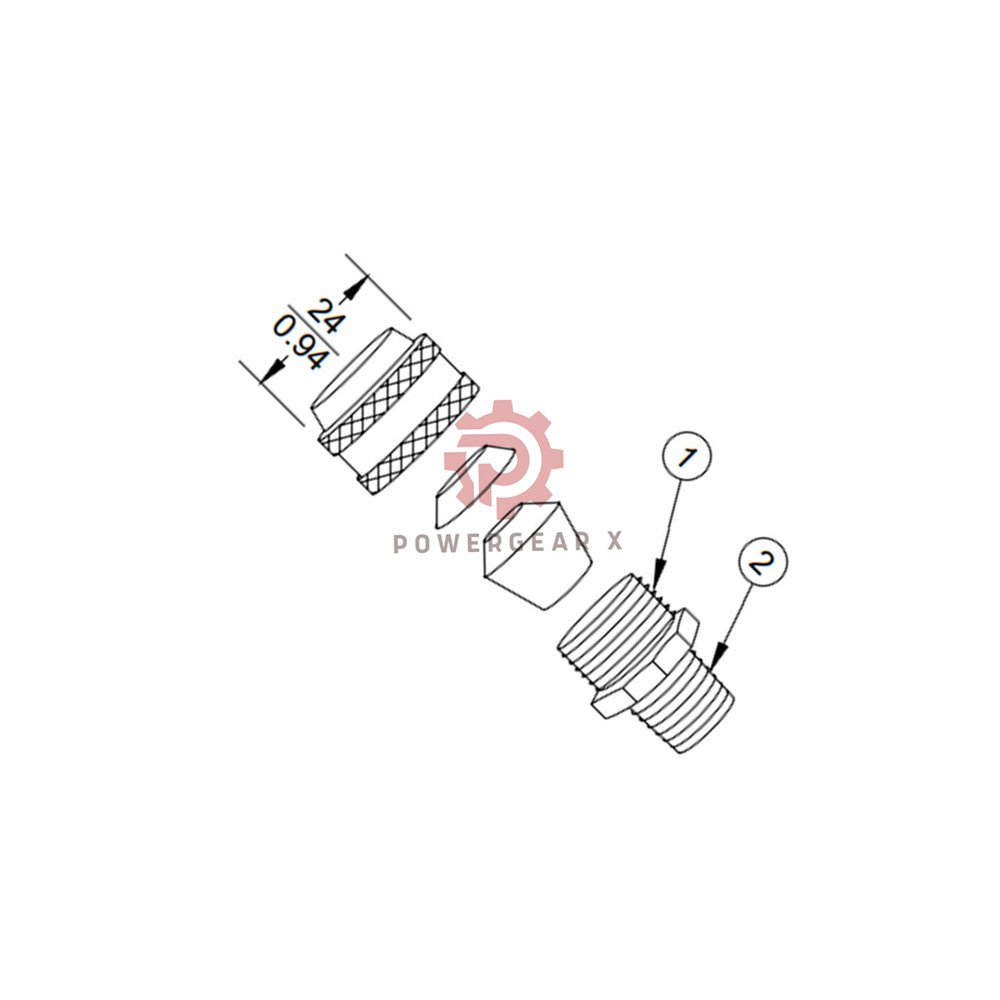

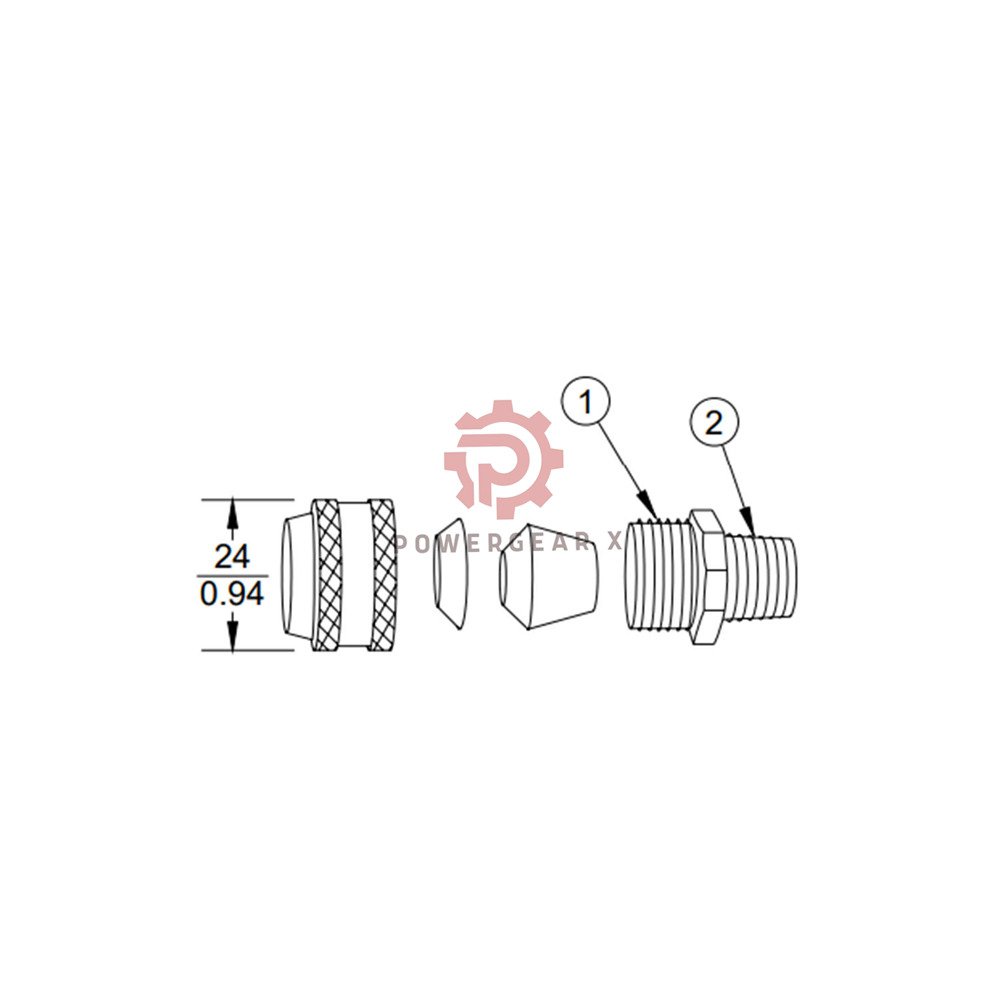

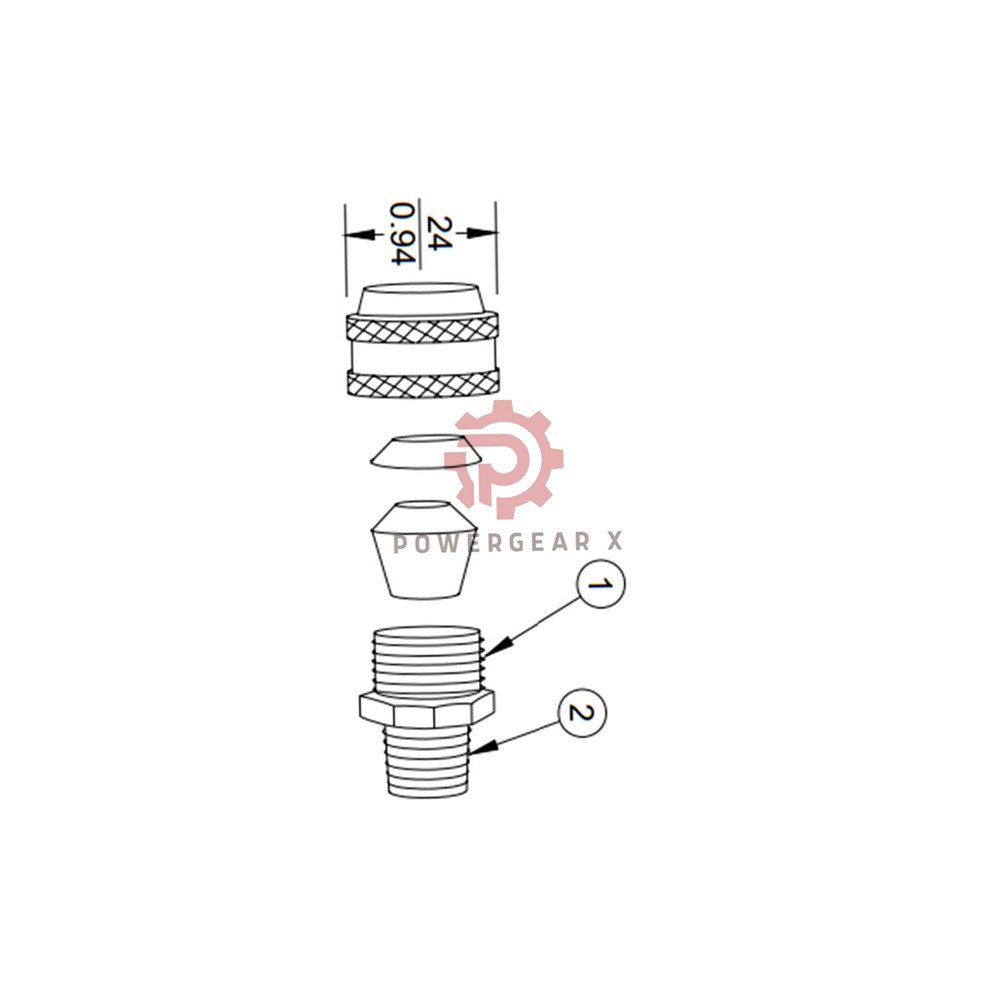

10076-02 Cable Seal from Bently Nevada secures coaxial cables. It stops movement, prevents abrasion, and offers splash protection. This seal fits armored or non-armored cables without removing connectors.
Key Features
- Restrains cable movement and reduces wear.
- Prevents abrasion from vibration or contact.
- Splash-proof design protects in wet areas.
- Slit grommet allows installation over pre-terminated cables.
- Aluminum body with oil-resistant grommet for durability.
Technical Data
- Brand: Bently Nevada
- Model: 10076-02
- Series: 10076 Cable Seal
- Thread: 1/4-18 NPT (fits 4190-36 Adapter)
- Overall Length (tightened): 35 mm (1.4 in)
- Material: Aluminum body, oil-resistant slit grommet
- Cable Compatibility: 75/95 Ω, without armor
- Temperature Range: -40 °C to +85 °C
- Environmental Tolerance: Splash, dust, and oil resistant
- Resolution & Linearity: N/A (mechanical seal)
- Interference Immunity: Passive component, no signal interference
Installation & Compatibility
- Easy install over armored or non-armored cables.
- Compatible with 4190-36 Adapter and Bently Nevada transducers.
- No connector removal needed – slit grommet design.
- Thread sealant recommended for NPT connections.
Maintenance & Service
- Inspect grommet and threads during routine checks.
- Clean with mild solvent and soft cloth.
- Replacement grommets available from Bently Nevada.
Certifications & Warranty
- Certified for industrial environment use.
- RoHS compliant.
- 12-month warranty against material defects.
Package Contents
- 1 × 10076-02 Cable Seal
- Installation instruction sheet
Shipping & Delivery
- 12-24 hours dispatch for in-stock items.
- Carriers: FedEx, UPS, DHL (global express).
- Tracking number provided within 24 hours.
Expert Review
“Reliable mechanical barrier for sensitive transducer cables. The slit grommet saves hours of re-termination work. Robust aluminum body withstands harsh plant conditions.” – Senior Field Engineer, Powergear X
Manager’s Insight
“Cost-effective cable protection that reduces downtime. Easy to spec and install. The NPT thread ensures a secure fit in standard adapters.” – Product Line Manager, Bently Nevada
Application Scenarios
- Connecting Bently Nevada transducers in compressors and turbines.
- Protecting cables in oil & gas, power generation, and paper mills.
- Retrofit or new installations requiring splash protection.
- Cable routing in control panels and junction boxes.
Frequently Asked Questions (FAQ)
- Can I use this seal with armored cable?
Yes. The slit grommet fits over both armored and non-armored cables. - What adapter does it mate with?
It screws into a 4190-36 Adapter via the 1/4-18 NPT thread. - Is the grommet replaceable?
Yes, replacement grommets are available from Bently Nevada. - What is the max temperature?
It operates from -40 °C to +85 °C. - Does it affect signal quality?
No, it is a passive mechanical seal with no electrical effect.
Experience-Based Tips
- Use PTFE tape on threads to prevent seizing in wet environments.
- Check cable OD before ordering – this model fits 75/95 Ω cables without armor.
- Inspect the slit for damage after installation to maintain splash rating.
Selection Guide
- Step 1: Confirm cable type – armored or non-armored.
- Step 2: Verify cable impedance – 75/95 Ω for this model.
- Step 3: Check NPT adapter compatibility (4190-36).
- Step 4: Consider ambient temperature and splash exposure.
- Step 5: For other cable sizes, contact sales@powergearx.com.
