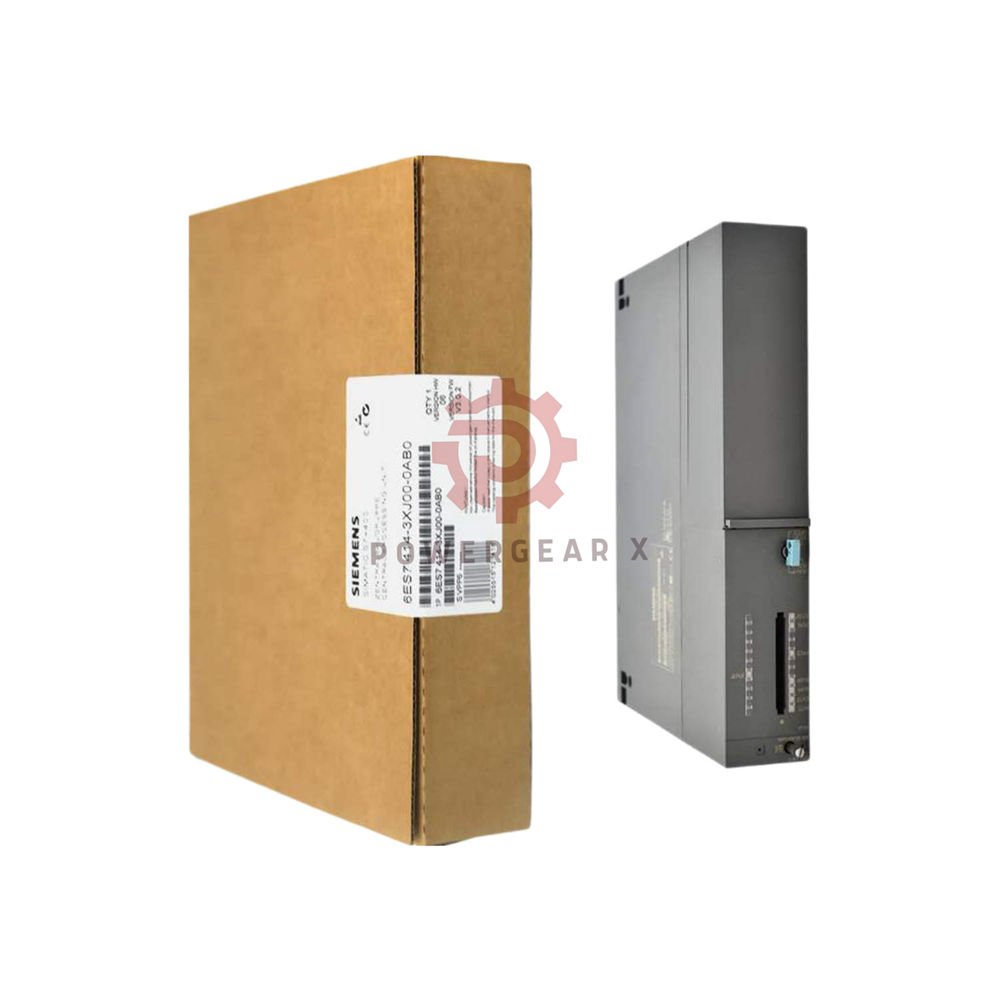

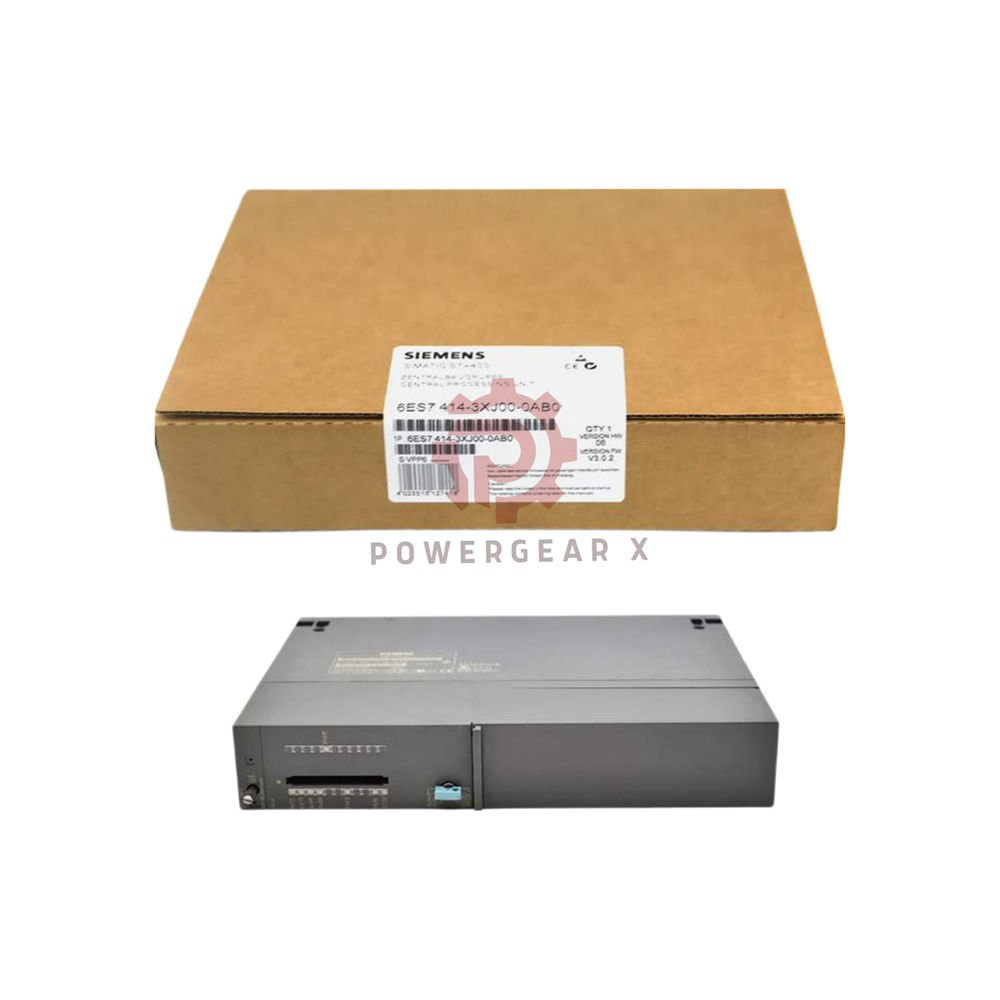

6ES7414-3XJ00-0AB0 | Siemens S7-400 CPU 414-3 PLC Module

Product Overview

• 6ES7414-3XJ00-0AB0 – SIMATIC S7-400 CPU 414-3
• High-performance PLC for mid- to large-scale automation
• 768 KB working memory (384 KB code, 384 KB data)
• 3 integrated interfaces: MPI/DP, PROFIBUS DP, and IFM
• Supports CiR (Configuration in RUN) for uninterrupted operation

Key Technical Data

• Brand: Siemens
• Model: 6ES7414-3XJ00-0AB0
• Series: SIMATIC S7-400
• Module Type: CPU 414-3
• Working Memory: 768 KB (384 KB code, 384 KB data)
• Load Memory (FEPROM): expandable up to 64 MB
• Processing Speed:
  • Bit operations: 0.1 µs
  • Floating point: 0.6 µs
• Interfaces:
  • 1st: MPI/DP (12 Mbit/s, 32 connections)
  • 2nd: PROFIBUS DP (12 Mbit/s, 96 slaves)
  • 3rd: IFM (pluggable IF module)
• Address Area: up to 8 KB inputs / outputs
• Power Supply: 24 V DC, typ. 1.5 A from backplane
• Power Loss: typ. 7.5 W
• Operating Temperature: 0 to 60 °C (standard)
• Humidity: 5% to 95% non-condensing
• EMC Immunity: EN 61000-6-2
• Noise Immunity: excellent against RFI and ESD

Installation & Commissioning

• Dimensions: 50 x 290 x 219 mm (W x H x D)
• Weight: approx. 1,070 g
• Mounting: slots in S7-400 rack (UR1/UR2)
• Easy plug-in design – no special tools required
• Diagnostics: integrated buffer with 3,200 entries
• Online status/control and forcing functions for quick debugging

Compatibility & Integration

• STEP 7 programming environment (V5.x or TIA Portal)
• Supports LAD, FBD, STL, SCL, CFC, GRAPH, HiGraph®
• Multi-computing: up to 4 CPUs in UR1/UR2
• Connectable OPs: 31 (without message) / 8 (with message)
• Mixed DP master via CP or IM 467 (not jointly with CP 443-5 Ext.)
• Supports S5-compatible communication via CP

Application Scenarios

• Process automation – chemical, pharmaceutical, oil & gas
• Factory automation – assembly lines, material handling
• Power generation – turbine control, substation automation
• Water/wastewater – pumping stations, treatment plants
• Ideal for systems requiring high availability and redundancy

Expert Review

• Performance: The 414-3 handles complex logic and floating-point math with ease. Its 0.1 µs bit processing ensures fast response.
• Connectivity: Three onboard interfaces reduce the need for extra CPs, saving rack space and cost.
• Reliability: Battery-backed memory and CiR support minimize downtime during configuration changes.
• Verdict: A robust, future-proof CPU for demanding mid-range applications.

Manager’s Insight

• “For project managers, the 414-3 offers the best balance of price, performance, and scalability. Its ability to expand load memory to 64 MB makes it suitable for growing systems.”
• “With 2 integrated DP masters and support for up to 96 slaves, this CPU simplifies network design and reduces engineering effort.”

Frequently Asked Questions

• Can I use this CPU with TIA Portal?

  Yes, it is fully supported in TIA Portal V13 and later.

• What is the maximum number of DP slaves on the 2nd interface?

  Up to 96 slaves with a total address area of 6 KB each for inputs and outputs.

• Does it support isochronous mode?

  Yes, with a shortest clock pulse of 5 ms (or 2.5 ms without SFC 126/127).

• Is the working memory expandable?

  No, it is fixed at 768 KB, but load memory is expandable via FEPROM/RAM cards.

• What battery type does it use?

  Standard backup battery with typical current draw of 40 µA.

• Can I run multiple CPUs in one rack?

  Yes, up to 4 CPUs in UR1 or UR2 racks (multicomputing).

• How do I update the firmware?

  Firmware updates are done via STEP 7 using the memory card or online function.

Selection Guide

• Choose this CPU if: you need 768 KB working memory, 3 onboard interfaces, and support for up to 128 DP slaves.
• Compare with 414-2: The 414-3 adds a 3rd IF slot and larger address area (6 KB per interface).
• For larger applications: consider 416 or 417 CPUs with more memory and I/O capacity.
• Memory card recommendation: FEPROM for permanent storage, RAM for temporary expansion.

Certifications & Standards

• CE, UL, CSA, and FM approved
• EN 61131-2 compliance
• RoHS compliant
• Marine classification (DNV GL, LRS) – optional

Package Contents

• 1 x CPU 414-3 module (6ES7414-3XJ00-0AB0)
• 1 x front connector (screw-type)
• 1 x label strip
• 1 x manual (digital download)
• Battery not included (order separately)

Shipping & Warranty

• Warranty: 12 months against manufacturing defects
• Shipping: 12-24 hours dispatch (stock available)
• Carriers: FedEx, UPS, DHL – express delivery
• Tracking number provided within 24 hours
