Product details

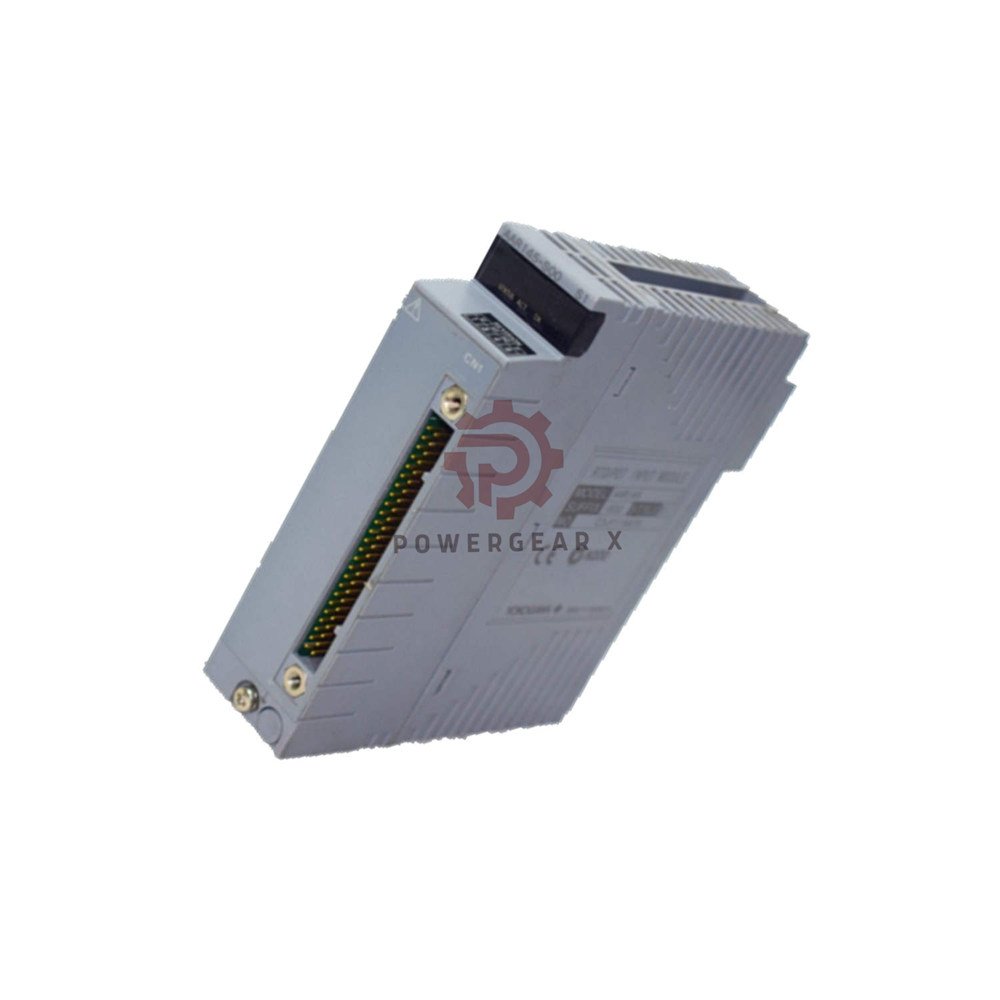

AAR145-S00 – 16-Channel RTD/POT Input Module
Brand: Yokogawa | Model: AAR145-S00 | Type: RTD/POT Input Module
16 isolated channels. Accepts Pt100 RTD (3-wire) or potentiometer (0-10 kΩ). Select RTD or POT per channel. Accurate and stable for temperature and position sensing.
- Channels: 16 isolated inputs
- Signal types: Pt100 RTD or 0-10kΩ potentiometer
- Accuracy: RTD ±150 mΩ, POT ±0.2% FS
- Isolation: 500V AC (ch-to-system), 200V AC (ch-to-ch)
- Data update: 1 second
Technical Specifications
- General
- Model: AAR145-S00
- Brand: Yokogawa
- Channels: 16 isolated
- Weight: 0.3 kg
- Input Signals
- RTD: Pt100 (JIS C1604:1997, IEC751:1995), 3-wire
- POT: 0 to 10 kΩ total resistance
- Span resistance: ≥50% of total
- Per-channel selection: RTD or POT independently for CH1-CH16
- Electrical
- Allowable input voltage: ±5V
- Input resistance (ON/OFF): ≥1 MΩ
- Measurement current: 1 mA (RTD)
- Wiring resistance: ≤150 Ω per wire
- Accuracy & Drift
- RTD accuracy: ±150 mΩ
- POT accuracy: ±0.2% of full scale
- RTD drift: ±0.3 Ω/10°C
- POT drift: ±0.4%/10°C
- Isolation & Protection
- Withstanding (ch-to-system): 500V AC (1 min)
- Withstanding (ch-to-ch): 200V AC (1 min)
- Burn-out detection: Configurable (UP/DOWN), 60s detection time
- Data update period: 1 second
- Power & Connection
- Current consumption: 350 mA @ 5V DC
- External connection: KS8 cable or AKB335 (dedicated)
- Terminal boards: MRT, TERT, AER4D compatible
Expert Review
“Precise and flexible.” 16 channels with per-channel RTD/POT selection. ±150 mΩ accuracy for Pt100. Potentiometer linearity ±0.2% FS. Burn-out detection adds safety. 1-second update suits most process loops.
Manager’s Insight
“Cost-effective multi-sensor solution.” One module handles both RTD and potentiometer signals. Reduces spare part inventory. Simple wiring with KS8 cable. Reliable isolation protects your system. 12-month warranty included.
Typical Applications
- Temperature monitoring (RTD Pt100 sensors)
- Position feedback (potentiometers on valves, actuators)
- Process control (chemical, power plants)
- HVAC and building automation
- Dual-redundant safety systems
Compatibility
- Designed for Yokogawa CENTUM VP and ProSafe-RS
- Works with standard Yokogawa I/O racks
- Uses KS8 or AKB335 cables
- Terminal boards: MRT, TERT, AER4D
Compare with Other Models
- AAR145-S00 – 16 ch RTD/POT, isolated
- AAR144 – 8 ch RTD/POT, lower density
- AAR181 – 16 ch RTD only (no POT)
- AAR146 – 16 ch thermocouple input
Certifications
- CE, UL, CSA, EAC
- Complies with IEC 61131-2
- RoHS compliant
Package & Warranty
- In box: AAR145-S00 module, documentation.
- Warranty: 12 months.
- Shipping: 12-24h dispatch via FedEx, UPS, DHL (tracking provided).
Frequently Asked Questions
- Can I mix RTD and POT on different channels?
- Yes. Each channel (CH1 to CH16) can select RTD or POT independently via software.
- What cable do I need for connection?
- Use Yokogawa KS8 or AKB335 dedicated cable. Terminal boards MRT, TERT, or AER4D are compatible.
- Does it support 2-wire RTD?
- No. This module only supports 3-wire Pt100 RTD. Use 3-wire sensors for best accuracy.
- What is the burn-out detection time?
- 60 seconds. You can set it to UP or DOWN scale. All channels share the same setting.
- How accurate is the potentiometer measurement?
- ±0.2% of full scale. Ensure span resistance is ≥50% of total resistance for best linearity.
- Can I use this in dual-redundant systems?
- Yes. The AAR145 supports dual-redundant configurations for critical applications.
Selection Guide
- Choose AAR145-S00 if: you need 16 channels with mixed RTD and POT inputs.
- For RTD only: consider AAR181 (16 ch, Pt100 only).
- For thermocouples: select AAR146.
- Check your cable: KS8 or AKB335 is required.
- Dual-redundant? This module is ready for it.
