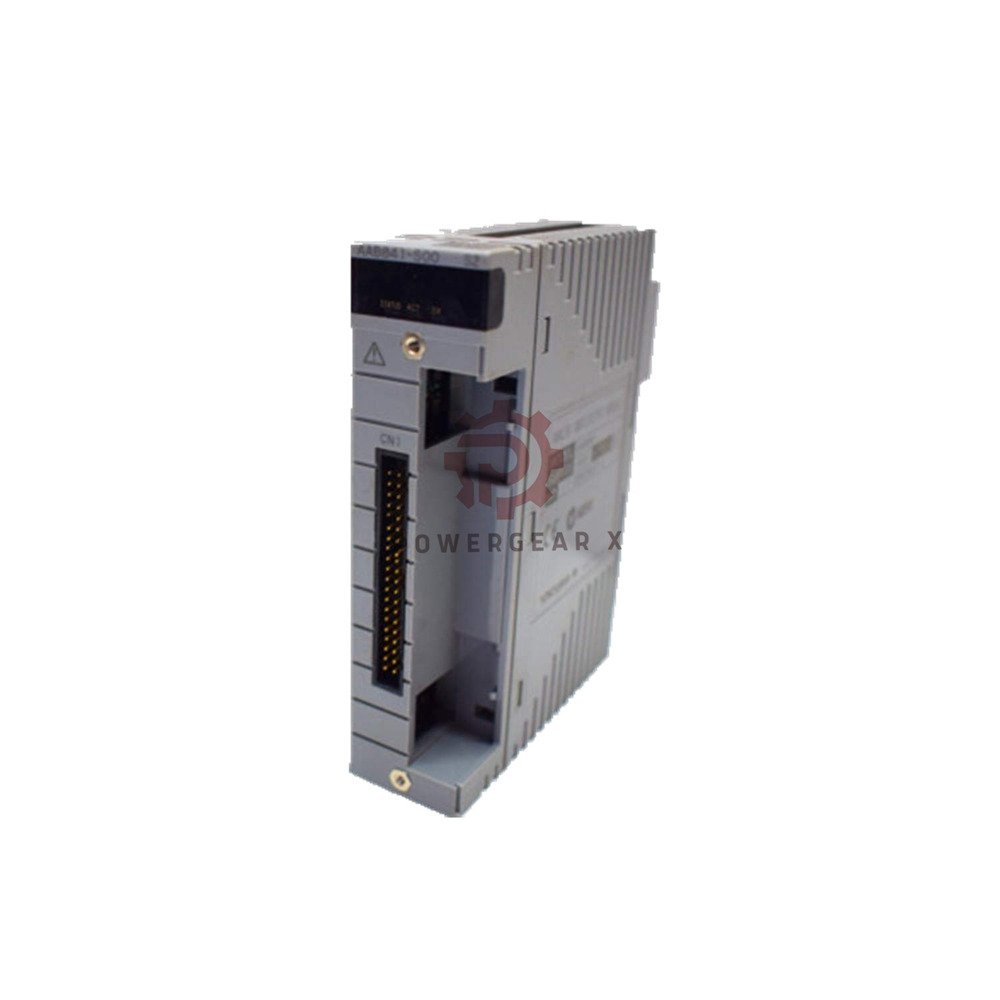

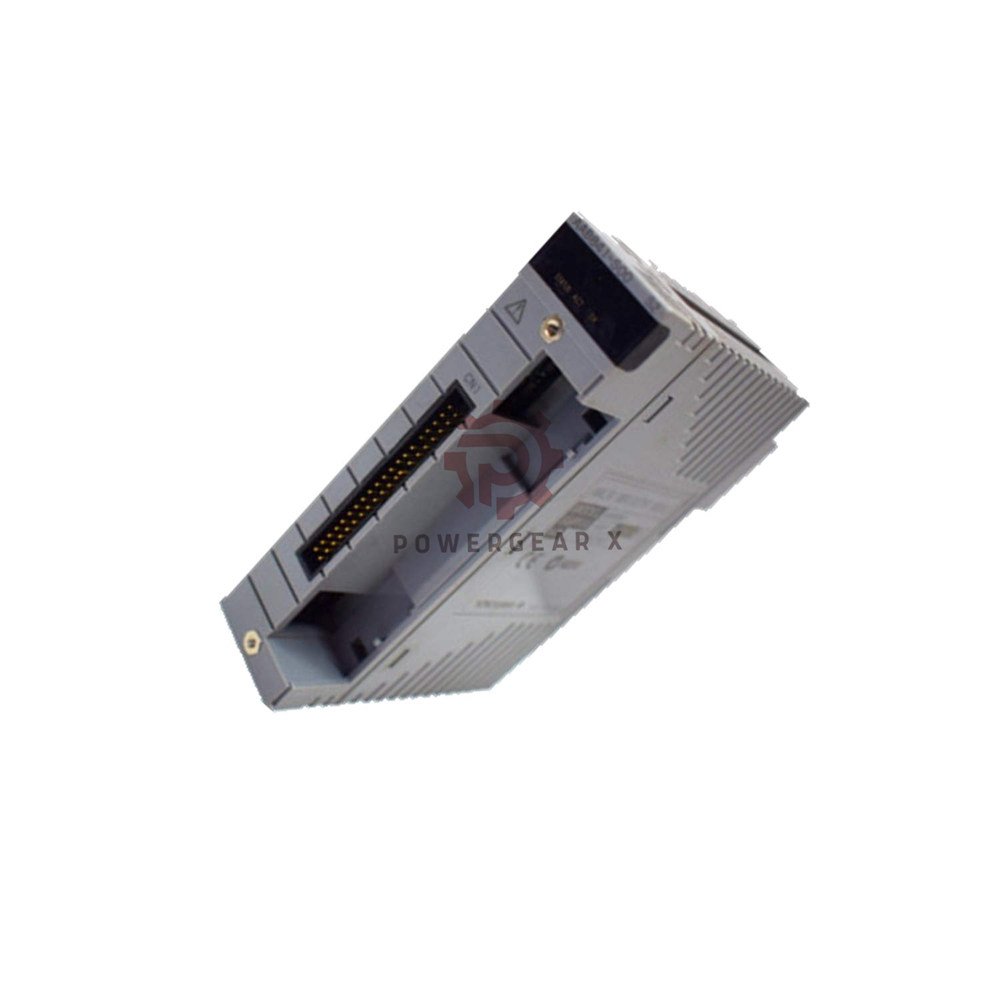

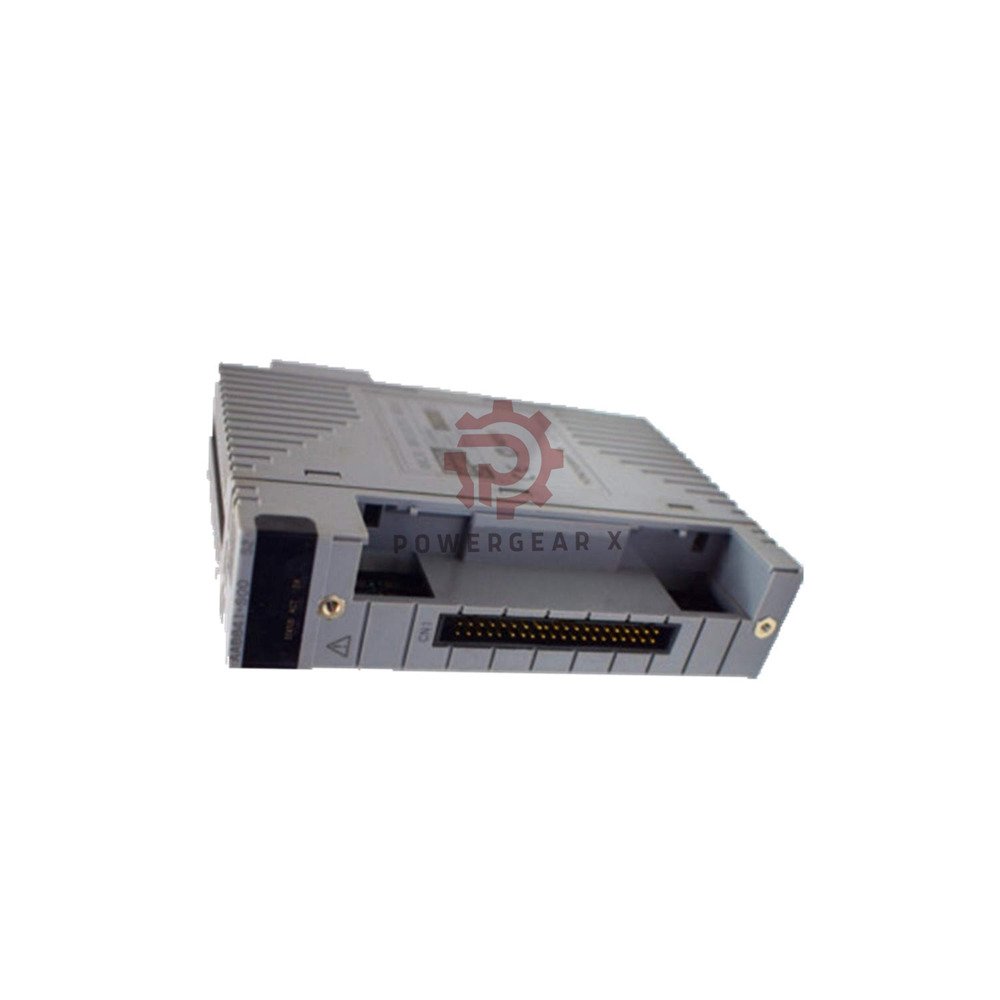

Yokogawa AAB841-S00 8-Channel Analog I/O | 1-5V Input 4-20mA Output

AAB841-S00 – Yokogawa Analog I/O Module (8 In / 8 Out)

Brand: Yokogawa | Model: AAB841-S00 | Type: Analog I/O Module

8 analog inputs (1-5 V) and 8 analog outputs (4-20 mA). Non-isolated, differential inputs. Fast 10 ms update. For process control and DCS systems.

Key Features

• 8 inputs + 8 outputs – mixed I/O in one module
• Input signal – 1 to 5 V DC
• Output signal – 4 to 20 mA
• High accuracy – ±16 µA (input) / ±48 µA (output)
• Fast update – 10 ms
• Flexible wiring – pressure clamp, KS cable, MIL connector

Technical Specifications

• Inputs
  • Channels: 8 (differential, non-isolated)
  • Signal: 1…5 V DC
  • Common mode voltage: ≤ ±1 V
  • Allowable input: ±7.5 V
  • Input resistance (ON): ≥1 MΩ
  • Input resistance (OFF): ≥340 kΩ
  • Step response: 100 ms
  • Accuracy: ±16 µA
• Outputs
  • Channels: 8
  • Signal: 4…20 mA
  • Load resistance: 0…750 Ω
  • Circuit-open detection: <0.65 mA
  • Step response: 40 ms
  • Accuracy: ±48 µA
• Performance
  • Data update: 10 ms
  • Temp drift: ±0.1% / 10°C
  • Transmitter supply: 14.8…26.4 V (at 20 mA)
  • 2-wire / 4-wire setting: per channel (pin selectable)
• Power & Environment
  • Current: 310 mA (5 V) + 250 mA (24 V)
  • Weight: 0.2 kg
  • Suffix: -S (standard), 0 (no explosion protection), 0 (basic)

Installation & Commissioning

• Mounting: DIN rail or rack – fits Yokogawa systems.
• Wiring: Pressure clamp, KS cable, or MIL connector.
• Configuration: Set 2-wire/4-wire via pins per channel.
• Maintenance: No calibration needed – uses factory settings.

Compatibility & Applications

• Systems: Yokogawa CENTUM VP, ProSafe-RS, Stardom.
• Signals: 1-5 V transmitters, 4-20 mA actuators.
• Use cases: Pressure, temperature, flow control loops.

Certifications & Standards

• Yokogawa quality standard (factory calibrated)
• CE, UL, CSA (refer to Yokogawa documentation)
• RoHS compliant

Package & Delivery

• Package: 1 unit, 0.2 kg.
• Warranty: 12 months.
• Shipping: FedEx, UPS, DHL – dispatched within 12-24 hours.

Expert Review

“Versatile analog I/O module. 8 inputs and 8 outputs in one unit saves rack space. Accuracy is solid (±16 µA input). The 40 ms output response is fast enough for most loops.”

Manager’s Insight

“Cost-effective solution for Yokogawa DCS. The 2-wire/4-wire pin setting is handy. Use it for mixed signal applications – input 1-5 V, output 4-20 mA.”

Application Scenarios

• Process control with transmitters and actuators
• Data acquisition and loop control
• Replacement for older AAB841 modules
• Integration with CENTUM VP and ProSafe-RS

Comparison with Similar Models

• AAB841-S00 – 8 in / 8 out, 1-5 V / 4-20 mA, non-isolated.
• AAB842-S00 – 8 in / 8 out, 4-20 mA / 1-5 V, isolated.
• AAB843-S00 – 16 in / 0 out, 1-5 V only.
• AAB844-S00 – 0 in / 16 out, 4-20 mA only.

FAQ

• What are the input and output signals?
  Input: 1-5 V. Output: 4-20 mA.
• How many channels?
  8 inputs and 8 outputs.
• Is it isolated?
  No, non-isolated (differential input).
• What is the update time?
  10 ms for inputs and outputs.
• Can I use 2-wire transmitters?
  Yes, set via pin per channel.
• What is the maximum load resistance for output?
  750 Ω.
• What cable types are compatible?
  Pressure clamp, KS cable, or MIL connector.
• How to choose between AAB841 and AAB842?
  Choose AAB841 for non-isolated; choose AAB842 for isolated signals.

Selection Guide

• For 8 in / 8 out, 1-5 V / 4-20 mA: AAB841-S00.
• For isolated I/O: AAB842-S00.
• For all inputs (16 channels): AAB843-S00.
• For all outputs (16 channels): AAB844-S00.
