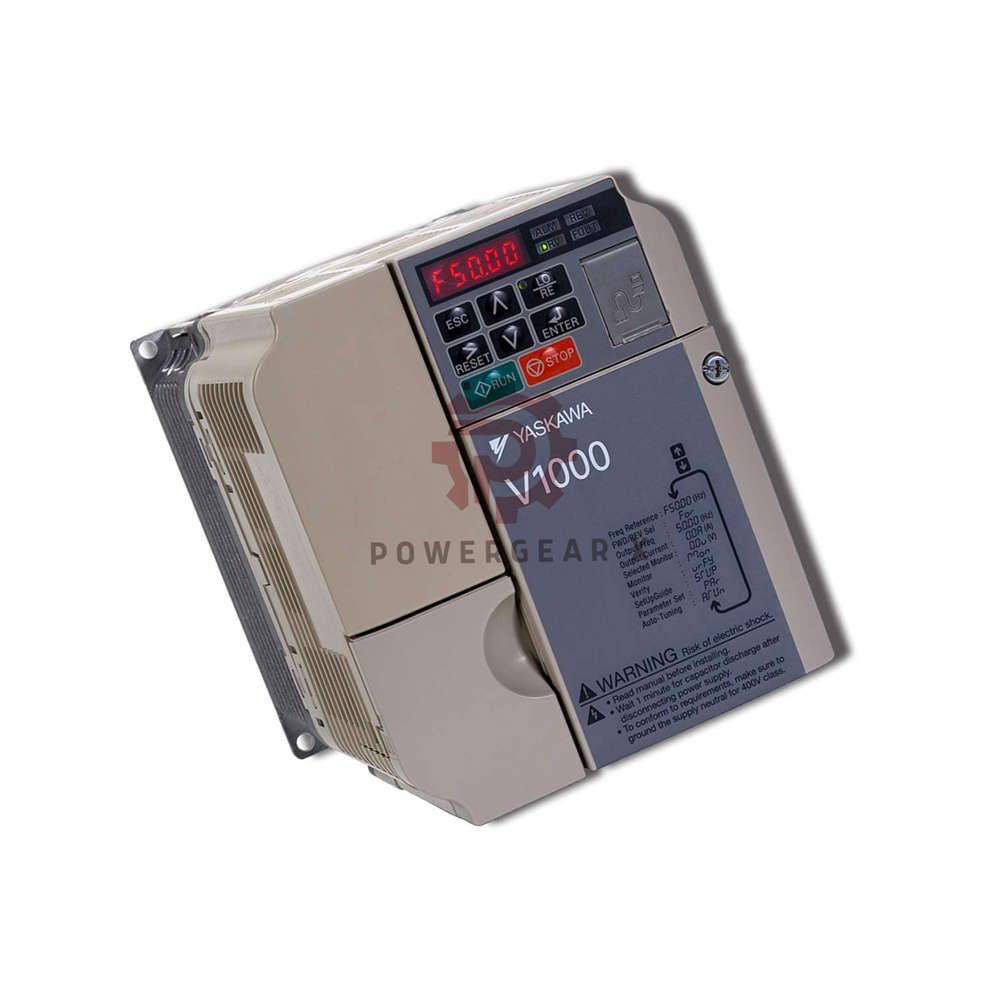

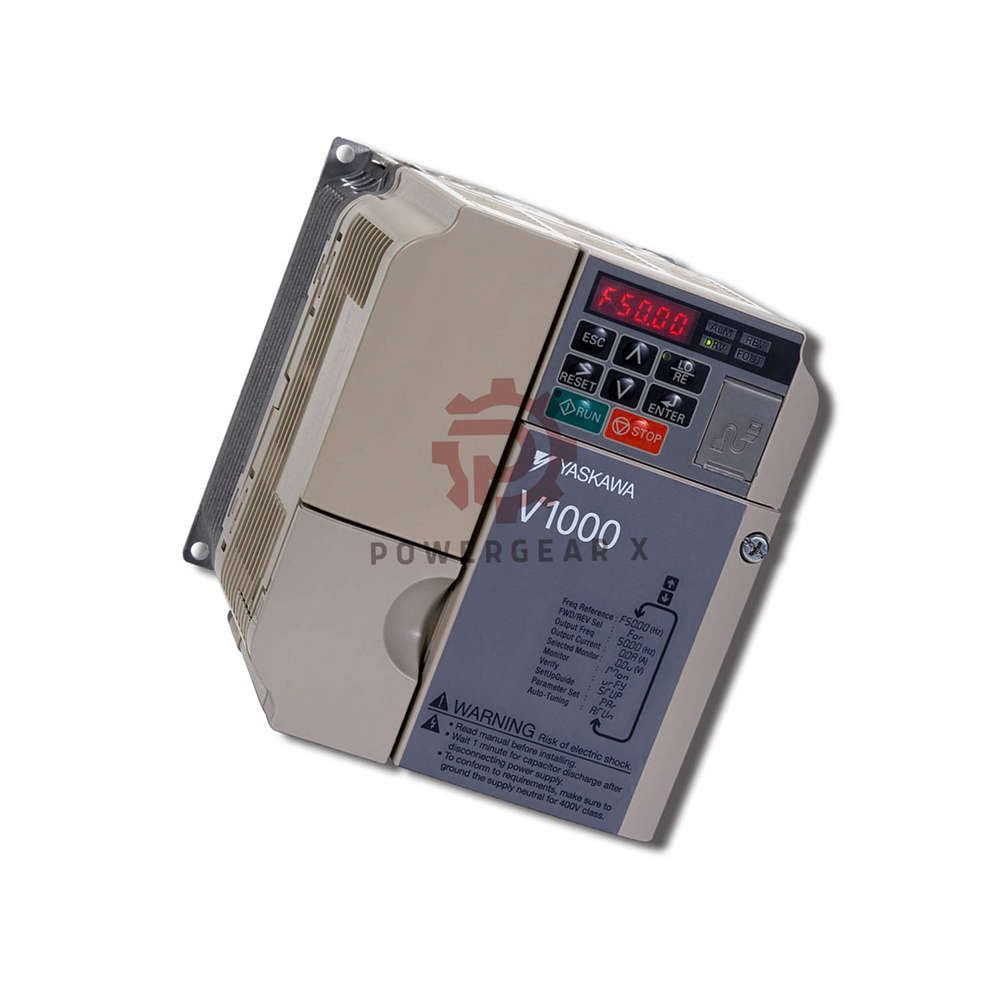

Yaskawa V1000 CIMR-VU4A0009FAA Vector AC Drive 380-480V

Product Overview

• Yaskawa CIMR-VU4A0009FAA delivers precise motor control in compact industrial systems.
• Belongs to the V1000 Series with advanced vector control capability.
• Supports stable torque output across varying load conditions.
• Optimized for space-constrained panels with compact enclosure design.
• Ensures high efficiency in three-phase motor applications.
• Provides reliable speed regulation for critical automation processes.

Technical Specifications

• Brand: Yaskawa America Inc.
• Model: CIMR-VU4A0009FAA
• Series: V1000 Microdrive
• Input Voltage Range: 380–480 VAC, 3-phase
• Frequency: 50/60 Hz
• Output Power: 5 HP (Normal Duty), 4 HP (Heavy Duty)
• Output Current: 8.8 A (ND), 7.2 A (HD)
• Control Method: Vector Control
• Frequency Response: Fast dynamic response for motor load changes
• Speed Accuracy: High precision under varying loads
• Resolution: Fine speed adjustment capability
• Operating Temperature: Typical industrial range
• Environmental Tolerance: Designed for harsh industrial environments
• EMI Immunity: Strong resistance to electrical interference
• Enclosure Rating: IP20 / NEMA 1
• Dimensions: 4.25 x 6.06 x 5.89 inches

Key Functional Capabilities

• Adjustable frequency control ensures flexible motor speed operation.
• Maintains stable torque during acceleration and deceleration.
• Supports smooth motor startup with reduced mechanical stress.
• Enhances energy efficiency in continuous operation environments.
• Provides reliable performance in high-duty industrial cycles.

Installation Guidelines

• Mount vertically inside a ventilated control panel.
• Maintain adequate spacing for airflow and cooling.
• Ensure proper grounding to minimize electrical noise.
• Use shielded cables for sensitive signal connections.
• Verify input voltage before powering the unit.

Commissioning & Maintenance

• Quick parameter setup simplifies initial configuration.
• Built-in diagnostics reduce troubleshooting time.
• Minimal maintenance required due to robust design.
• Status indicators provide clear operational feedback.
• Supports fast replacement in modular systems.

Compatibility

• Works with standard three-phase induction motors.
• Integrates with PLC and industrial automation systems.
• Suitable for conveyors, pumps, and HVAC equipment.
• Compatible with common industrial communication setups.

Certifications

• UL, cUL, UL 508C certified
• CSA C22.2 compliance
• CE marking for European standards
• TÜV verified safety

Packaging & Delivery

• Includes original drive unit and user documentation.
• Secure industrial-grade packaging ensures safe transport.
• 12-month warranty included.
• Ships within 24–48 hours after order confirmation.
• Courier options: FedEx, UPS, DHL.

Typical Applications

• Industrial conveyor systems
• Pumps and fluid control systems
• Fans and HVAC systems
• Packaging machinery
• Automated production lines

Diagnostic Capabilities

• Real-time fault monitoring enhances system reliability.
• Error codes simplify troubleshooting processes.
• Protects against overcurrent, overvoltage, and overheating.
• Supports predictive maintenance strategies.

FAQ

• Can this drive handle heavy load startups?
• Yes, vector control ensures strong torque at low speeds.
• Is external cooling required?
• No, standard panel ventilation is sufficient in most cases.
• How to select the correct drive size?
• Match motor current and application duty requirements carefully.
• Does it support continuous operation?
• Yes, it is designed for continuous industrial workloads.
• What is a common installation mistake?
• Insufficient airflow causes overheating and reduces lifespan.

Selection Guidance

• Choose based on motor rated current, not only power.
• Consider load type such as constant or variable torque.
• Evaluate environmental conditions before installation.
• Ensure compatibility with control systems.

Powergear X Automation’s Insight

• This model balances compact size and high performance.
• Ideal for OEM panels requiring space efficiency.
• Reliable for mid-range motor control applications.
