XNXXSC1SS Honeywell CO Sensor Cartridge – Selectable Range 100-500ppm

Product Overview – Honeywell XNXXSC1SS

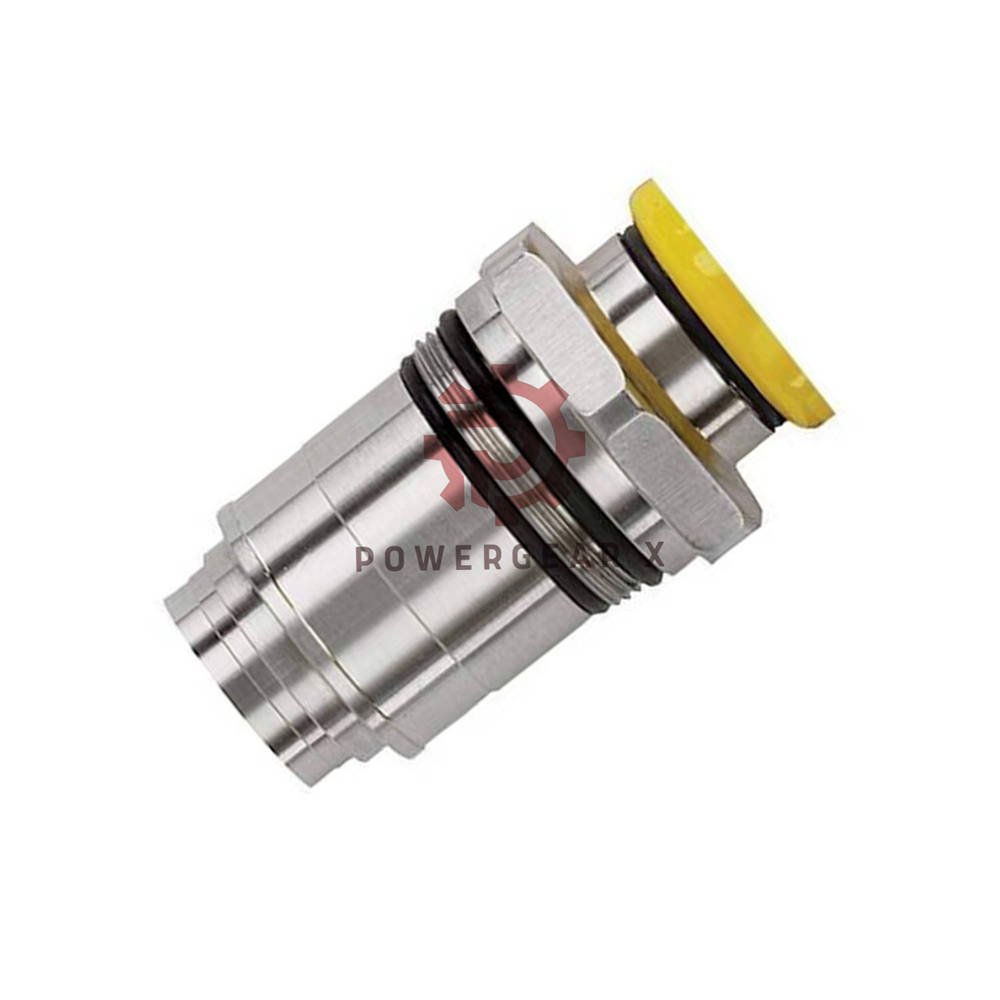

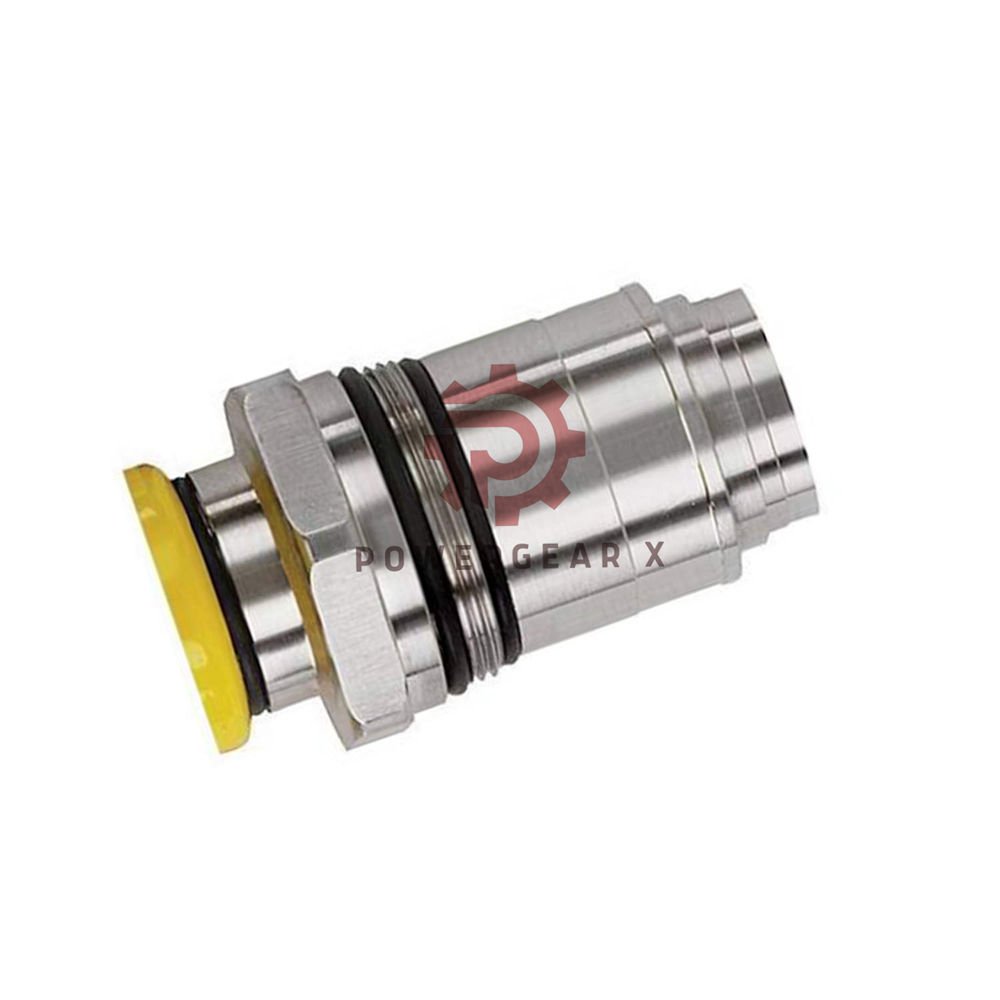

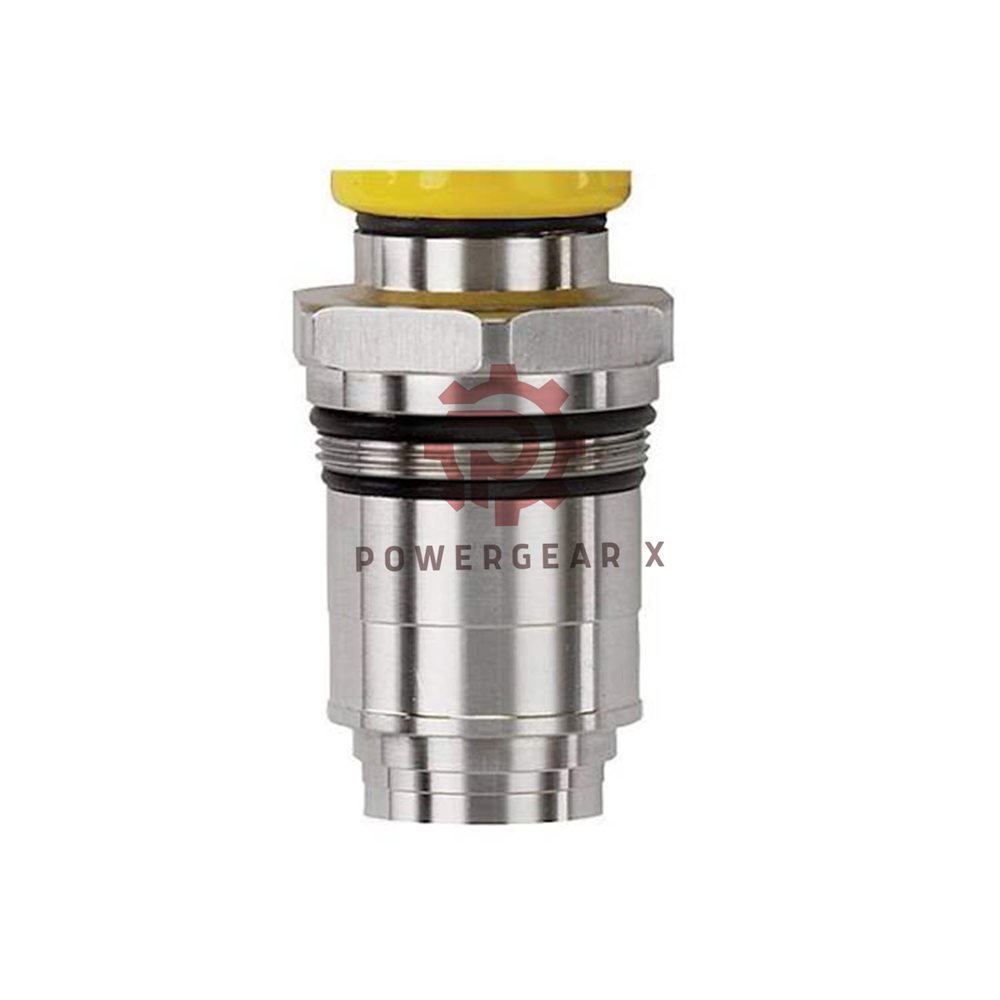

XNXXSC1SS – Honeywell gas cartridge for CO (carbon monoxide). Smart, selectable range, fast response. Designed for fixed and portable gas detection systems.

Technical Specifications – Hierarchical View

• Gas Type
  • Carbon Monoxide (CO)
• Measurement Range
  • Selectable full scale: 100 to 500 ppm
  • Default range: 300 ppm
  • Step increment: 100 ppm
• Sensitivity & Accuracy
  • Lower detectable limit: 5 ppm
  • Accuracy: ±2 ppm (typical)
• Response Time (T50 / T90)
  • T50: < 15 seconds
  • T90: < 30 seconds
• Calibration
  • Selectable cal gas: 30 % to 70 % of full scale
  • Default cal point: 100 ppm
• Environment & Durability
  • Operating temp: -40 °C to +55 °C (-40 °F to 131 °F)
  • Humidity resistance: 15 % to 90 % RH (non-condensing)
  • Pressure range: 0.9 to 1.1 atm

Manager’s Insight – Expert Review

This sensor excels in harsh conditions. Its wide temperature range and fast T90 response make it reliable for safety-critical areas. The selectable range gives flexibility – one cartridge fits many applications. For CO monitoring, this is a cost-effective, proven choice.

Compatible Devices & Applications

• Fixed gas detectors – Honeywell XNX series, other 4-20 mA systems
• Portable gas monitors – personal safety devices
• Industrial environments – parking garages, warehouses, tunnels
• HVAC controls – indoor air quality monitoring
• Process safety – chemical plants, refineries

Professional FAQs

• How do I change the full scale range?Use the configuration menu on the transmitter or software tool. Select 100, 200, 300, 400, or 500 ppm.
• What is the default calibration gas value?Default is 100 ppm CO. You can set it between 30 % and 70 % of the selected range.
• Can I use this cartridge in extreme cold?Yes, it works from -40 °C to +55 °C. No warm-up time needed in that range.
• Is the sensor field-replaceable?Yes, it is a plug-in cartridge. Replacement takes less than 5 minutes.
• What is the expected sensor life?Typical life is 3–5 years in clean air. Reduce exposure to high CO for longer life.

Purchasing & Selection Guide

• Choose XNXXSC1SS for CO only. For other gases, see Honeywell XNX series.
• Select 100 ppm range for low-level monitoring; 500 ppm for high-risk areas.
• Order calibration gas kit separately (CO in air or nitrogen).
• Ensure your transmitter supports XNX cartridge types (4-20 mA or Modbus).

Warranty & Shipping

• Warranty: 12 months against defects.
• Dispatch: 12–24 hours after order.
• Shipping: FedEx, UPS, DHL – with tracking number.

Comparison – Similar Models

• XNXXSC1SS (CO, 100-500 ppm) – this model
• XNXXSC1H2S – Hydrogen sulfide, 0-100 ppm
• XNXXSC1O2 – Oxygen, 0-25 % Vol
• XNXXSC1LEL – Combustible gases, 0-100 % LEL
