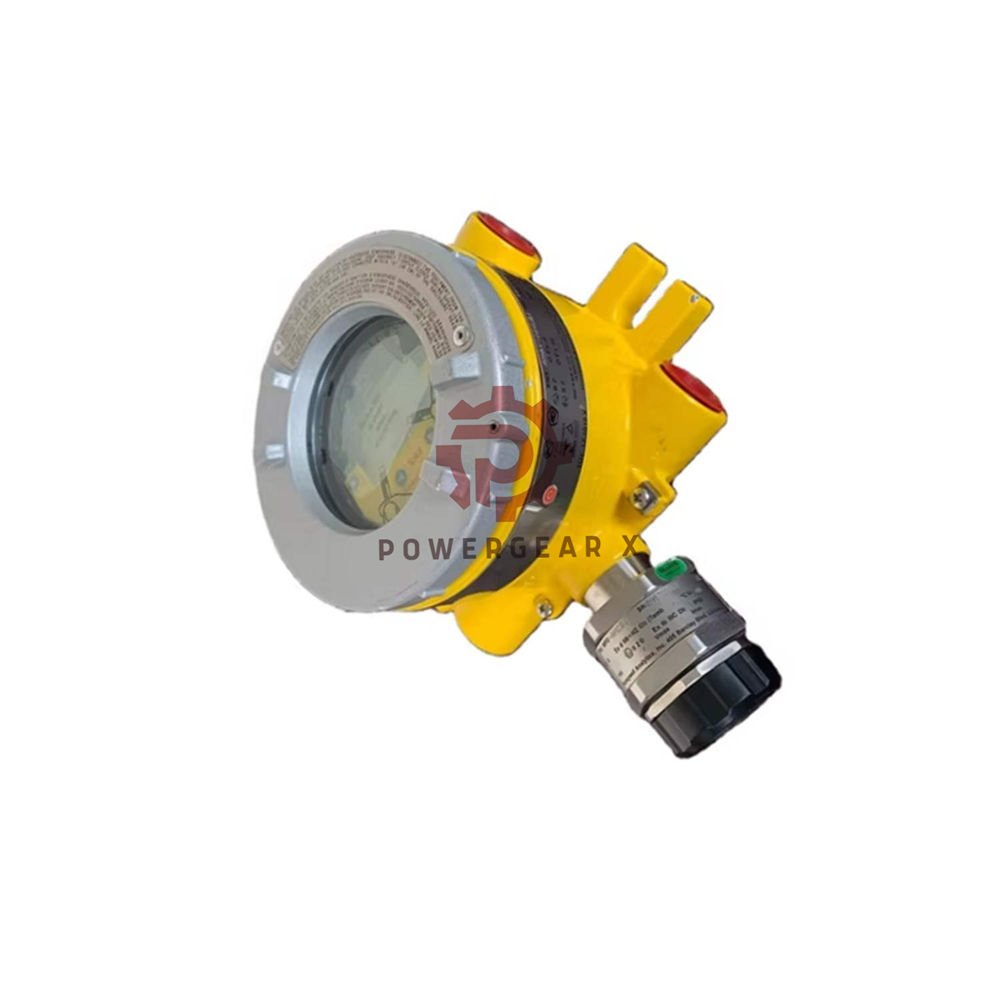

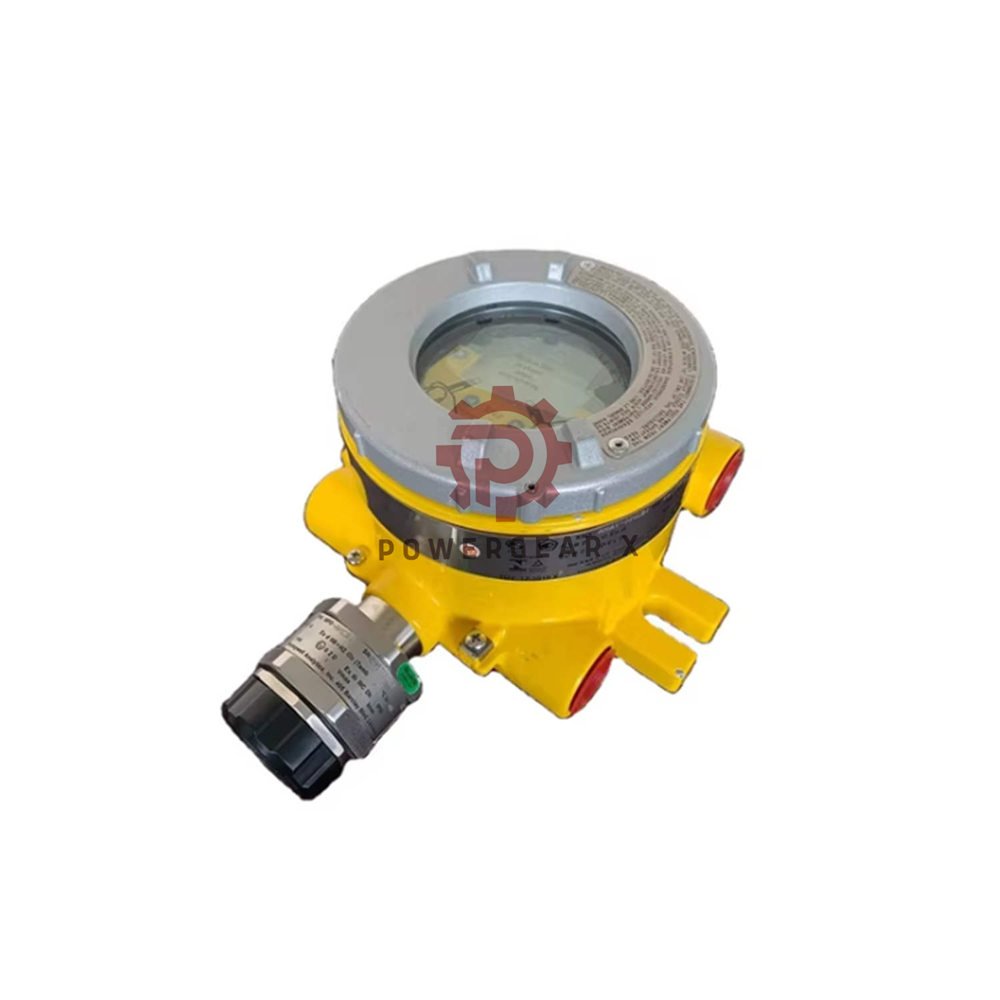

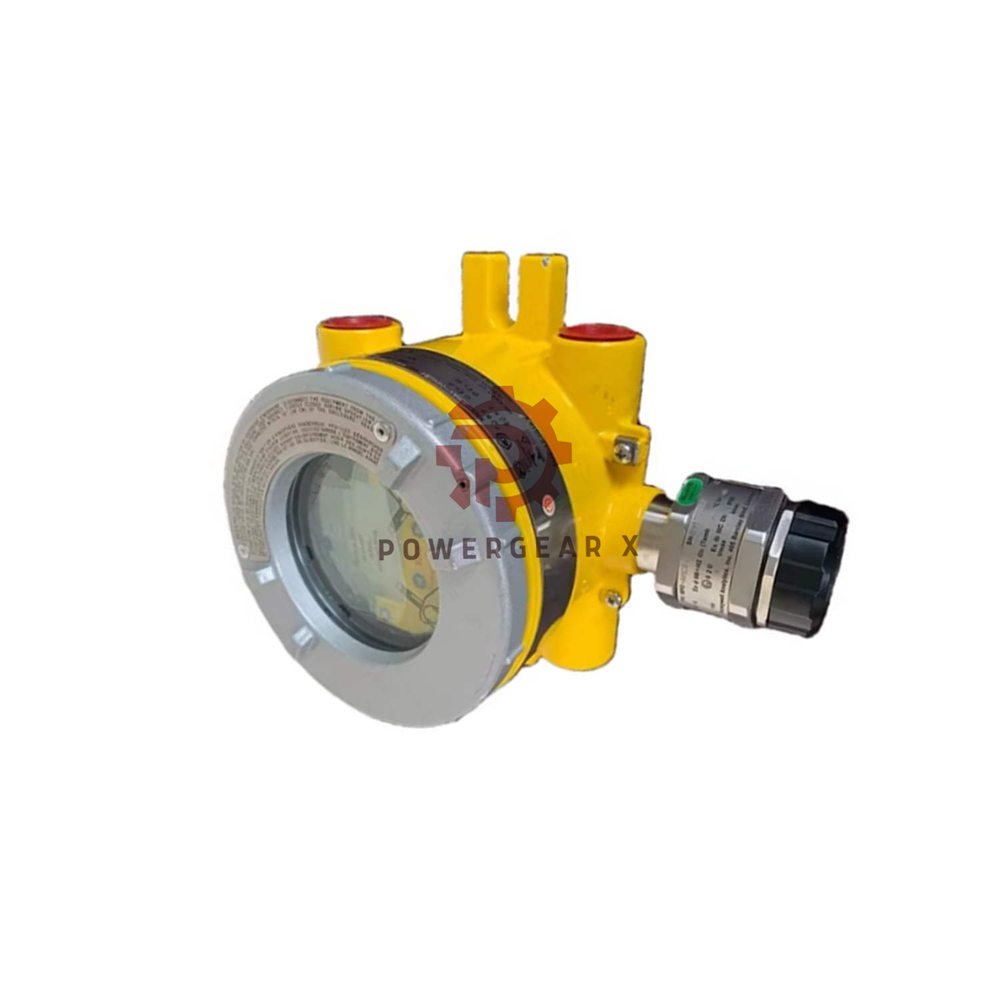

XNX-UTSV-NNIC1 Universal Transmitter  Honeywell

Product Overview

This XNX transmitter is a rugged gas detector. It comes with a built-in MPD IR CO2 sensor. The range is 0-5% Vol. It uses HART over 4-20mA output. The housing is 316 stainless steel. It is UL and CSA approved. This unit is for harsh industrial areas. It works reliably in extreme temperatures.

Key Specifications (Tree Structure)

• Manufacturer
  • Honeywell
• Model & Series
  • XNX-UTSV-NNIC1
  • XNX Universal Transmitter
• Approvals
  • UL and CSA certified
• Entry Type
  • 4 x ¾” NPT entries
• Material
  • 316 Stainless Steel (painted)
• Personality (Interface)
  • mV interface for milli-Volt sensors
  • Supports MPD, Sensepoint, Model 705, HT, and PPM sensors
• Options Installed
  • No relay option
  • No local HART
• Sensor & Range
  • IR Carbon Dioxide (CO2)
  • Range: 0-5% Vol.
• Mounting
  • Surface mount with integral lugs
  • Optional pipe kit (Ø100-150mm)
  • Optional ceiling bracket
• Operating Conditions
  • Temperature: -40ºC to +65ºC
  • Humidity: 0-99% RH (non-condensing)
  • Pressure: 90-110 kPa
• Storage
  • Temperature: -40ºC to 75ºC
  • Humidity: 0-99% non-condensing
• Dimensions & Weight
  • 16cm x 19.7cm x 11.4cm
  • 5 Kg

Installation & Setup

• Mounting – Use the built-in lugs. For pipes, order the separate kit.
• Wiring – Connect to 4-20mA loop. Use NPT entries for cable glands.
• Positioning – Place in a clean, stable area. Avoid direct vibration.

Maintenance & Service

• Self-Checks – Continuous diagnostics ensure reliable operation.
• Sensor Care – Regular calibration is recommended for CO2 sensing.
• Access – Easy front access for wiring and adjustments.

Compatibility & Integration

• Gas Detectors – Works with MPD, Sensepoint, Model 705, HT, and PPM.
• Control Systems – Connects to PLC, DCS, or SCADA via 4-20mA.
• Communication – HART protocol for digital configuration.

Certifications & Safety

• UL/CSA – Approved for North American hazardous locations.
• Material – 316 stainless steel offers excellent corrosion resistance.

What’s Included

• XNX-UTSV-NNIC1 transmitter with CO2 sensor
• Integral mounting lugs
• Quick start guide
• Certificate of compliance

Warranty & Shipping

• Warranty – 12 months from invoice date.
• Dispatch – Ships within 12-24 hours.
• Carriers – FedEx, UPS, DHL available.

Manager’s Insight

“This stainless steel XNX is a top choice for corrosive environments. The built-in CO2 sensor saves installation time. Its mV interface supports older sensors, making upgrades simple. A truly versatile and durable transmitter.”

Ideal Applications

• Wastewater treatment plants
• Breweries and beverage production
• Greenhouses and agriculture
• Chemical storage areas
• Indoor air quality monitoring

Frequently Asked Questions (FAQ)

What is the CO2 measurement range?

0-5% Vol. (0-50,000 ppm).

Can I use this with my existing Sensepoint sensor?

Yes, the mV interface works with Sensepoint and MPD sensors.

Is the housing suitable for outdoor use?

Yes, 316 stainless steel resists weather and corrosion.

How many cable entries does it have?

Four ¾” NPT entries for flexible wiring.

What is the warranty period?

12 months. We also provide technical support.

Can I mount it on a 6-inch pipe?

Yes, with the optional pipe mounting kit (Ø100-150mm).

Does it have relays?

This model (NN) has no relay option installed.

What is the storage temperature limit?

-40ºC to 75ºC.
