Name: Vibro-Meter CP216 Piezoelectric Pressure Transducer 143-216-000-111
SKU: 143-216-000-111
Availability: InStock

Product details

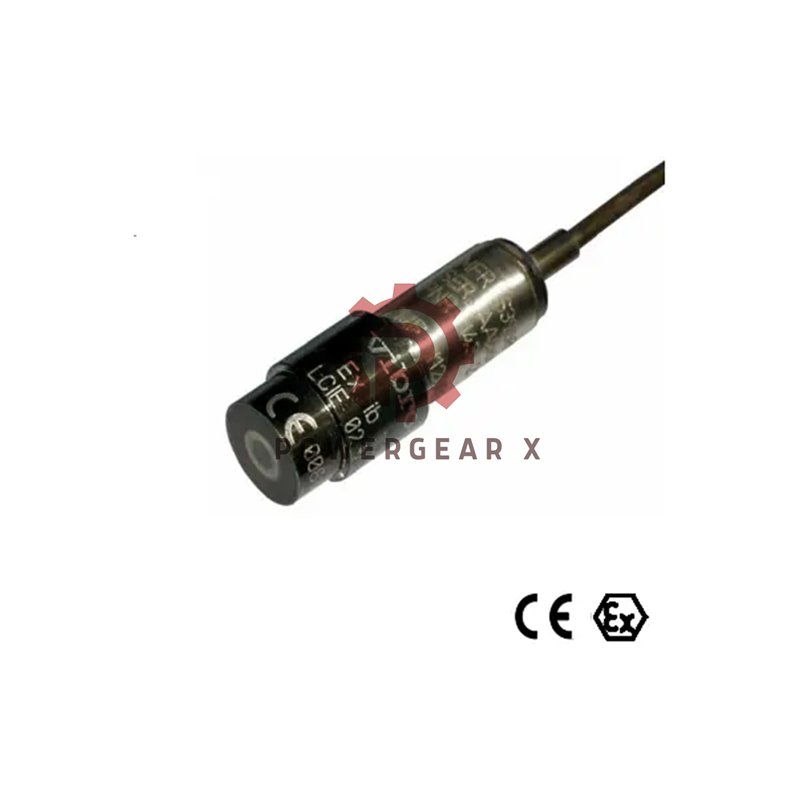

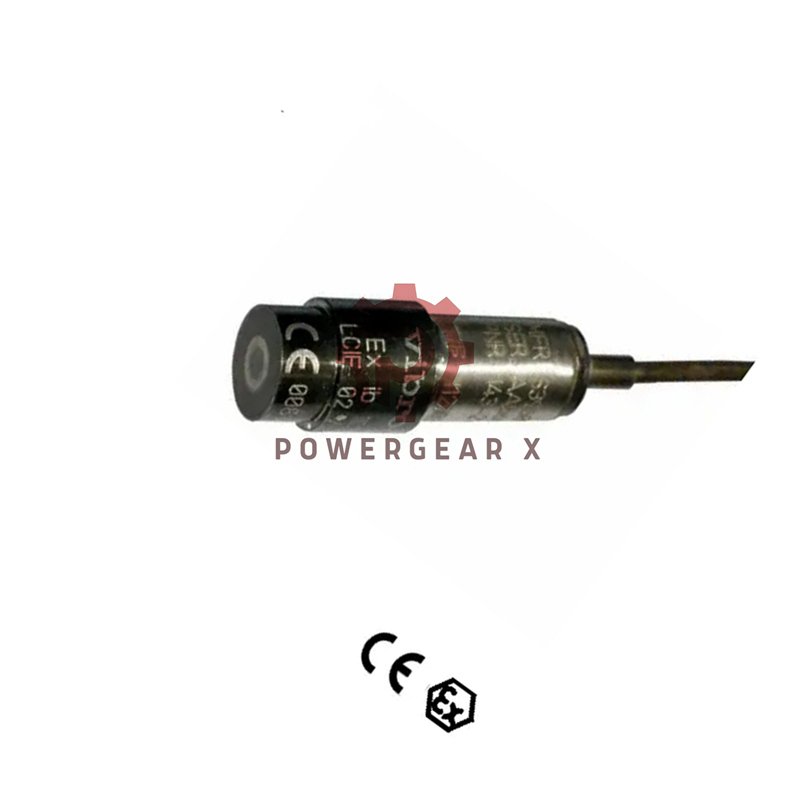

Vibro-Meter CP216 143-216-000-111 Piezoelectric Pressure Transducer

The Vibro-Meter CP216 (143-216-000-111) is a high-performance piezoelectric pressure transducer designed for harsh environments. It provides accurate, stable pressure measurement for gas turbines and other demanding systems.

Technical Highlights

Brand: Vibro-Meter
Model: CP216
Ordering Number: 143-216-000-111
Connector Type: Vibro-Meter High-Temperature
Pressure Range: 0.0005 to 250 bar (0.007 to 3626 psi)
Overload Limit: Up to 350 bar (5076 psi)
Frequency Response: 2 Hz to 15,000 Hz ±5%
Resonance Frequency: Over 80 kHz
Acceleration Sensitivity: ≤ 0.5 pC/g
Capacitance: 320 pF + 200 pF/m cable
Housing: NIMONIC® Alloy 90, hermetically welded
Cable Material: INCONEL® Alloy 600
Radiation Resistance: Withstands gamma flux 10¹⁰ erg/g
Shock Limit: Below 2000 g peak
Signal Output: Charge output, 2-pole insulated system

Environmental Endurance

Continuous use: −54°C to 470°C
Extreme use: −70°C to 520°C
Connector withstands up to 650°C
Humidity and corrosion-resistant construction

Installation Overview

Mount near pressure source for accurate readings.
Use compatible IPC 704 charge converter for signal conditioning.
Secure mineral insulated cable for high thermal endurance.
No power supply required; charge converter processes signals.

Suffix Structure

Base Type: CP216
Connector Option: “HT” = Vibro-Meter High-Temperature
Cable Length: Specified when ordering
Final Code: 143-216-000-111

Packing List

1 × Vibro-Meter CP216 Pressure Transducer
1 × Mineral Insulated Cable (custom length)
1 × High-Temperature Connector Assembly
1 × Mounting Instruction Sheet
Ships via FedEx, UPS, or DHL

Five Technical FAQs

Can the CP216 handle very high pressure spikes?
Yes, it tolerates transient spikes up to 350 bar without loss of accuracy.
Is recalibration required after installation?
No, factory dynamic calibration at 1 bar and 2 Hz is sufficient for lifetime use.
How is the signal processed?
The charge signal passes through a compatible charge converter such as IPC 704.
Can it operate under radiation exposure?
Yes, the unit withstands high neutron and gamma flux without degradation.
What warranty period applies?
Each transducer includes a full 12-month warranty from Powergear X Automation.
