Vibro-Meter CP 216 Pressure Transducer 143-216-000-121

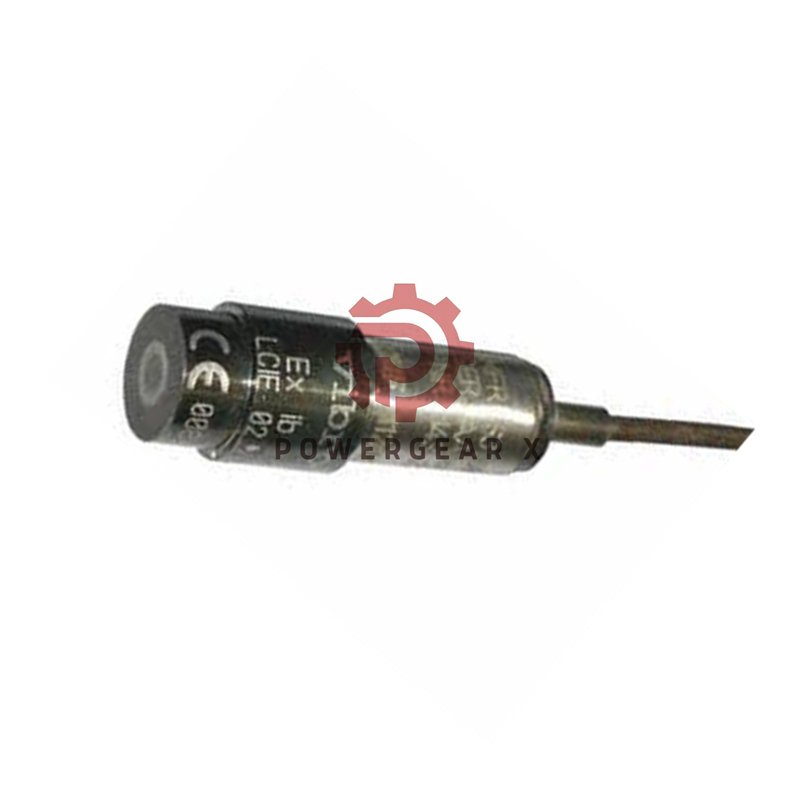

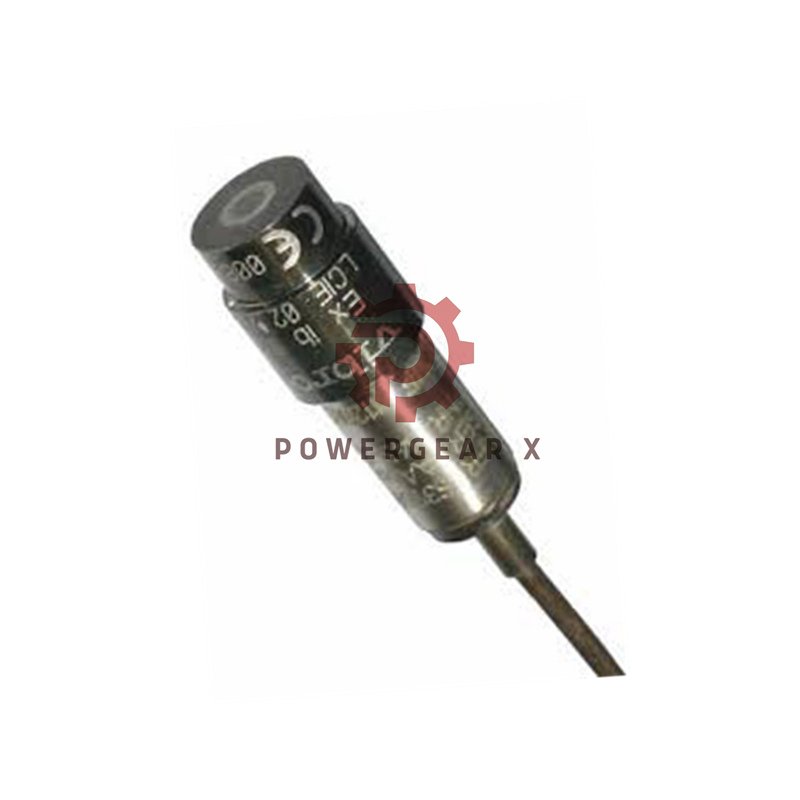

Vibro-Meter CP 216 — Extreme-Temperature Piezoelectric Pressure Transducer

• Model: CP 216
• Part Number: 143-216-000-121
• Type: Piezoelectric dynamic pressure transducer
• Brand: Vibro-Meter®
• Warranty: 12 months factory warranty

Key Benefits

• Operates from −70°C to 520°C for high-temperature turbine use.
• Withstands pressures up to 350 bar.
• Provides 200 pC/bar sensitivity for precise readings.
• Wide frequency range from 2 Hz to 15 kHz.
• Hermetically sealed NIMONIC® 90 housing resists corrosion and humidity.
• Stable piezoelectric crystal ensures long-term measurement reliability.

Performance & Reliability

• Dynamic range: 0.0005 bar to 250 bar (0.007 psi to 3626 psi).
• Linearity: Less than ±1% across full range.
• Acceleration sensitivity: ≤ 0.5 pC/g, reducing vibration noise.
• Internal insulation: > 10⁹ Ω, maintains > 5×10⁴ Ω at 450°C.
• Resonant frequency: Above 80 kHz for stability.
• Shock tolerance: Up to 2000 g (1 ms, half sine).

Electrical & Signal Details

• Output type: Charge (2-pole insulated system).
• Signal converter: IPC 704 compatible charge amplifier.
• Cable type: Mineral insulated (MI), twin conductors.
• Capacitance: 320 pF + 200 pF/m (pole-to-pole).
• Connector: Vibro-Meter high-temperature connector rated −70°C to 650°C.

Mechanical & Environmental Specifications

• Transducer weight: 12 g.
• Cable weight: 25 g/m.
• Construction: NIMONIC® 90 body, INCONEL® 600 cable.
• Radiation resistance: Gamma flux 10¹⁰ erg/g; neutron flux 10¹⁷ n/cm² (no degradation).
• Protection: Hermetically welded, resistant to corrosion and moisture.

Ordering Structure (Suffix Tree)

• Type: CP 216
  • Designation: Piezoelectric pressure transducer with Vibro-Meter high-temperature connector
  • Cable length: 0.5 m
  • Ordering number: 143-216-000-121
  • Available cable options:
    • 0.5 m (standard)
    • 1.0 m, 2.0 m (custom lengths on request)
  • Connector types:
    • Vibro-Meter high-temperature connector (standard)
    • LEMO connector (optional)

Packaging & Delivery

• 1 × CP 216 Transducer with MI Cable
• 1 × Calibration report (factory test at 1 bar, 2 Hz)
• 1 × Mounting instruction guide
• Shipping via FedEx, UPS, or DHL worldwide

FAQ

• Q: What type of amplifier should I use with the CP 216?
  A: Use a Vibro-Meter IPC 704 or any compatible charge amplifier.
• Q: Is the CP 216 suitable for jet engine testing?
  A: Yes, it performs reliably under high thermal and vibration stress.
• Q: How often should I calibrate the sensor?
  A: It is factory-calibrated and normally requires no further recalibration.
• Q: Can I use this sensor in an explosive area?
  A: Yes, it is certified for use in potentially explosive atmospheres.
• Q: What’s included in the standard package?
  A: The transducer, MI cable, and calibration sheet, with global shipping options.
