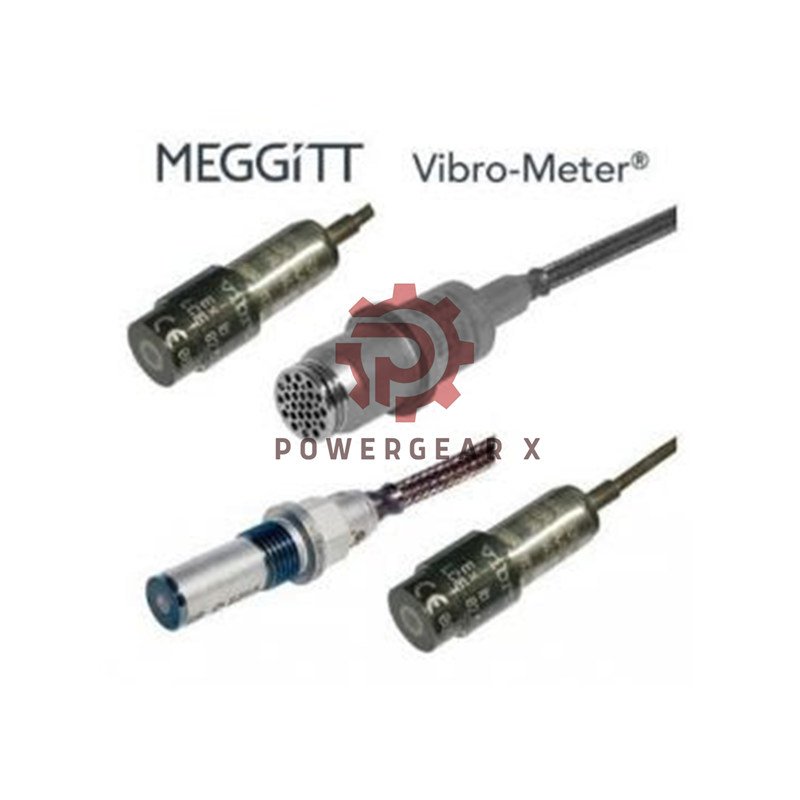

Vibro-Meter CP 216 Piezoelectric Pressure Transducer (143-216-000-151)
- Brand: Vibro-Meter®
- Model: CP 216
- Type: Piezoelectric pressure transducer with high-temp connector
- Condition: New, factory tested
- Warranty: 12 months
Key Highlights
- Operates up to 520°C and 350 bar
- High sensitivity: 200 pC/bar
- Frequency range: 2–15 kHz
- Excellent linearity: ±1%
- Lightweight, only 12 g
- Stable under shock up to 2000 g
- Hermetically welded NIMONIC® alloy 90 body
Technical Details
- Pressure range: 0.0005–250 bar
- Acceleration sensitivity: ≤0.5 pC/g
- Resonant frequency: >80 kHz
- Cable capacitance: 200 pF/m
- Insulation: >10⁹ Ω (5×10⁴ Ω at 450°C)
- Connector temperature: up to 650°C
- Cable: MI twin conductor, 3 m
- Weight: 25 g/m cable
Performance & Reliability
- Stable readings across extreme heat and pressure
- Minimal signal drift over time
- Strong resistance to shock and radiation
- Ideal for long-term gas turbine testing
Ordering Information
- Type: CP 216
- Designation: Piezoelectric pressure transducer with Vibro-Meter high-temp connector
- Cable length: 3 m
- Order code: 143-216-000-151
Applications
- Dynamic pressure monitoring in turbines
- High-temperature combustion testing
- Industrial research and development
- Engine test cells
Shipping
FAQ
- Can this model handle vibration?
Yes, it works under high vibration with minimal signal interference. - Is calibration required after purchase?
No, it comes factory calibrated. - What’s the maximum frequency supported?
It can measure signals up to 15 kHz. - Which environments are suitable?
It performs well in hot gas, pressure, and combustion setups. - Does it need external power?
No, it requires no external power input.
