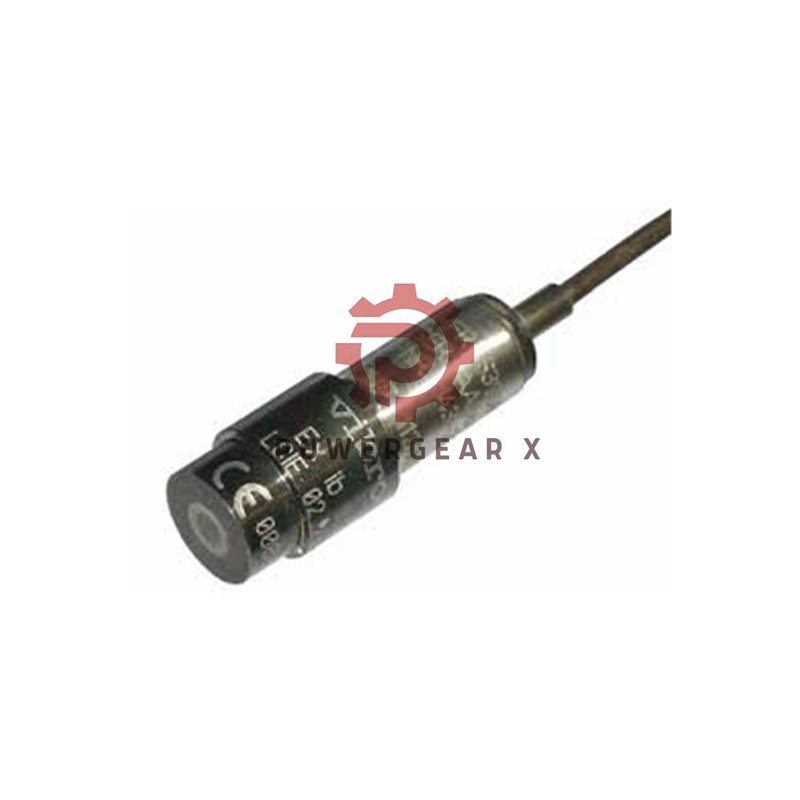

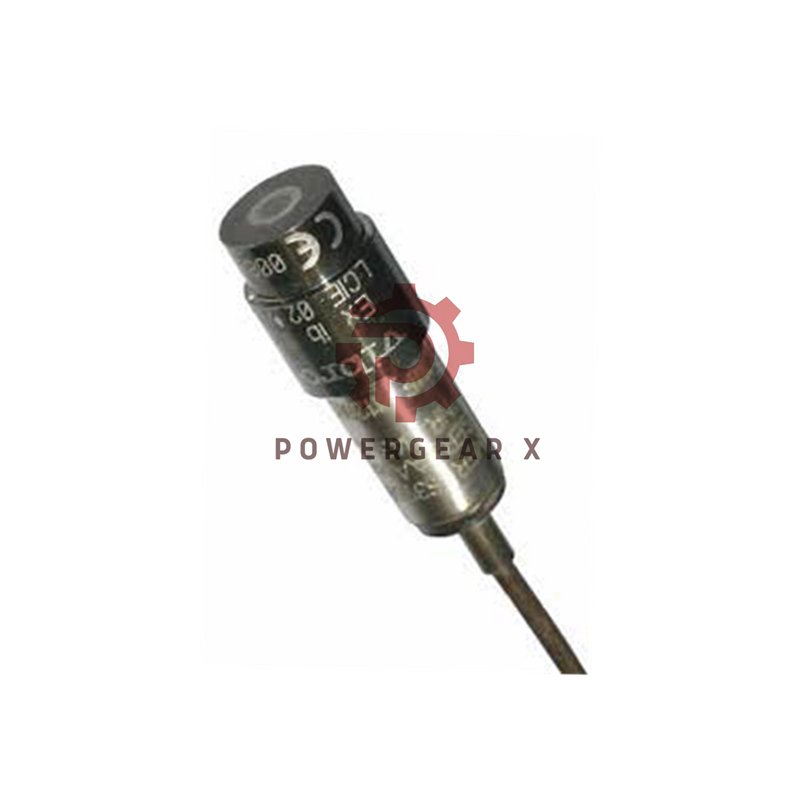

Vibro-Meter CP 216 Piezoelectric Pressure Transducer (143-216-000-141)

The CP 216 from Vibro-Meter® is a compact, high-performance pressure transducer built for extreme heat and pressure. It provides stable, repeatable measurements across a broad frequency range, even in harsh gas turbine environments.

Core Highlights

Model: 143-216-000-141
Type: CP 216 Piezoelectric Pressure Transducer
Connector: Vibro-Meter High-Temperature Connector
Cable Length: 2 meters (Mineral Insulated Twin Conductor)
Warranty: 12 Months

Key Performance Data

Pressure Range: 0.0005 to 250 bar
Overload Limit: Up to 350 bar (5076 psi)
Sensitivity: 200 pC/bar (13.8 pC/psi)
Frequency Range: 2 Hz to 15 kHz ±5%
Resonant Frequency: > 80 kHz
Linearity: within ±1%
Acceleration Sensitivity: ≤ 0.5 pC/g
Capacitance: 320 pF + 200 pF/m cable
Insulation Resistance: > 10⁹ Ω at room temperature

Temperature and Durability

Continuous Operation: −54°C to 470°C
Extreme Range: −70°C to 520°C
Connector Temperature: −70°C to 650°C (Vibro-Meter Type)
Material: NIMONIC® Alloy 90 with hermetic welds
Cable Material: INCONEL® Alloy 600
Shock Resistance: up to 2000 g peak (1 ms half-sine)
Radiation Tolerance: 10¹⁰ erg/g gamma, 10¹⁷ n/cm² neutron

Why Choose CP 216 (143-216-000-141)

Stable output under wide temperature and vibration conditions.
Certified for use in potentially explosive environments.
No power supply required — charge output design.
Factory-calibrated at 1 bar, 2 Hz, ensuring high accuracy.
Ideal for turbine testing, engine development, and dynamic pressure systems.

Suffix Configuration Tree

CP 216 Series
- –05 : 50 mm unthreaded section for precision mounting
- –25 : 250 mm overall case length for extended fitment
- –141 : High-temperature connector version (this model)

Installation Tips

Mount the sensor perpendicular to the pressure field for best response.
Use a charge converter such as IPC 704 for signal conditioning.
Avoid sharp bends in the MI cable to maintain insulation quality.
Check grounding and connector tightness before operation.
For calibration or diagnostics, use a 1 bar reference input.

Shipping & Warranty

Ships safely via FedEx, UPS, or DHL with protective foam packaging.
Includes calibration data, connector assembly, and documentation.
12-Month Manufacturer Warranty from Powergear X Automation Limited.

Professional FAQ

Q: Can the CP 216 handle fast pressure spikes?A: Yes, it withstands spikes up to 350 bar without performance loss.
Q: How stable is the transducer at high heat?A: It maintains full insulation and stable sensitivity up to 520°C.
Q: What signal conditioner works best with this sensor?A: The IPC 704 charge converter is recommended for optimal performance.
Q: Does radiation affect output accuracy?A: No, gamma and neutron exposure tested with no measurable effect.
Q: Can I use it for long-term monitoring in engines?A: Yes, it’s built for continuous operation in turbine and combustion systems.
