Product details

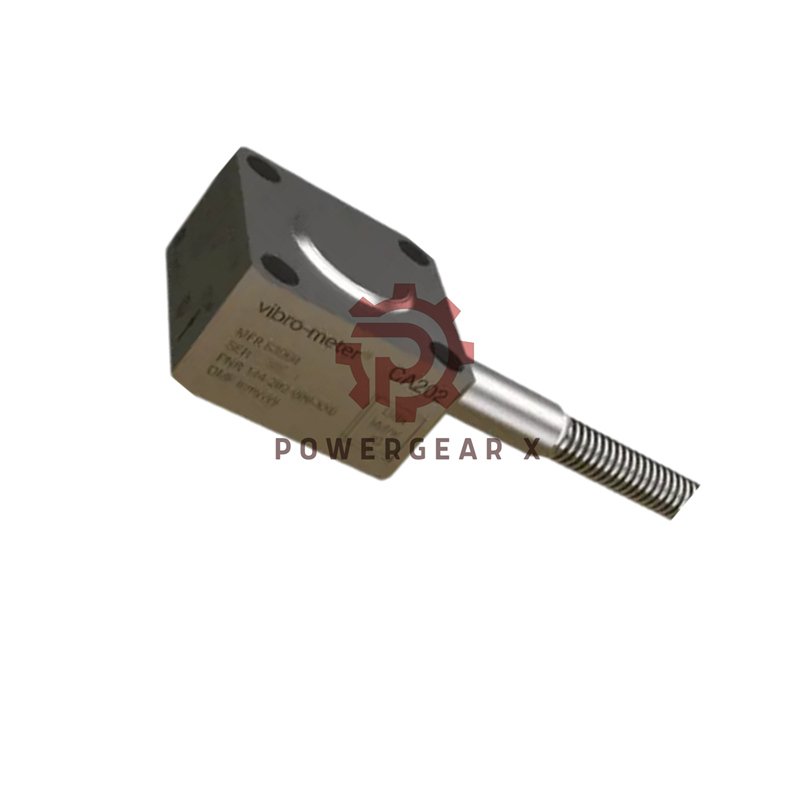

Vibro-Meter CA202 Piezoelectric Accelerometer | Model 144-202-000-106
- Brand: Vibro-Meter® (Meggitt)
- Model: CA202
- Part Number: 144-202-000-106
- Warranty: 12 Months
- Shipping: FedEx / UPS / DHL
- Contact: sales@powergearx.com |
+86 18030005825
CA202 piezoelectric accelerometer provides high accuracy vibration monitoring even in harsh industrial or explosive environments. It combines durable stainless-steel housing with excellent temperature resistance for long-term reliability.
Technical Overview
- Type: Piezoelectric accelerometer, shear mode
- Material: Austenitic stainless steel (1.4441)
- Cable: Integral, low-noise, stainless-steel hose (1.4541)
- Resonant Frequency: >22 kHz nominal
- Base-Strain Sensitivity: 0.15×10⁻³ g/µε
- Insulation Resistance: ≥10⁹ Ω
- Capacitance: 5000 pF pin-to-pin
- Mounting: 4 × M6 Allen screws, torque 15 N•m
- Weight: Sensor 250 g | Cable 135 g/m
- Power: None required (charge output type)
Ordering Information
- Model: CA202
- Designation: Ex version with 3 m integral cable
- Part Number: 144-202-000-106
- Warranty: 12 months factory warranty
Suffix Configuration (Tree View)
- 144-202-000-106
- 144 → Product Line: Vibro-Meter Accelerometer
- 202 → Model Series: CA202
- 000 → Standard Industrial Design
- 106 → Ex Version with 3 m Cable
FAQs
- What is the sensitivity of the CA202 accelerometer?
- It offers 100 pC/g ±5% at 120 Hz, providing accurate vibration data.
- Can CA202 be used in explosive areas?
- Yes, the Ex version is certified for use in hazardous zones.
- How is the CA202 mounted?
- It mounts with four M6 screws and lock washers for strong vibration resistance.
- What is the operating temperature range?
- It operates continuously from −55°C to +260°C, with short-term survival up to +280°C.
- Does CA202 require external power?
- No. It has a charge output and works with a charge amplifier like IPC70x.
