Product details

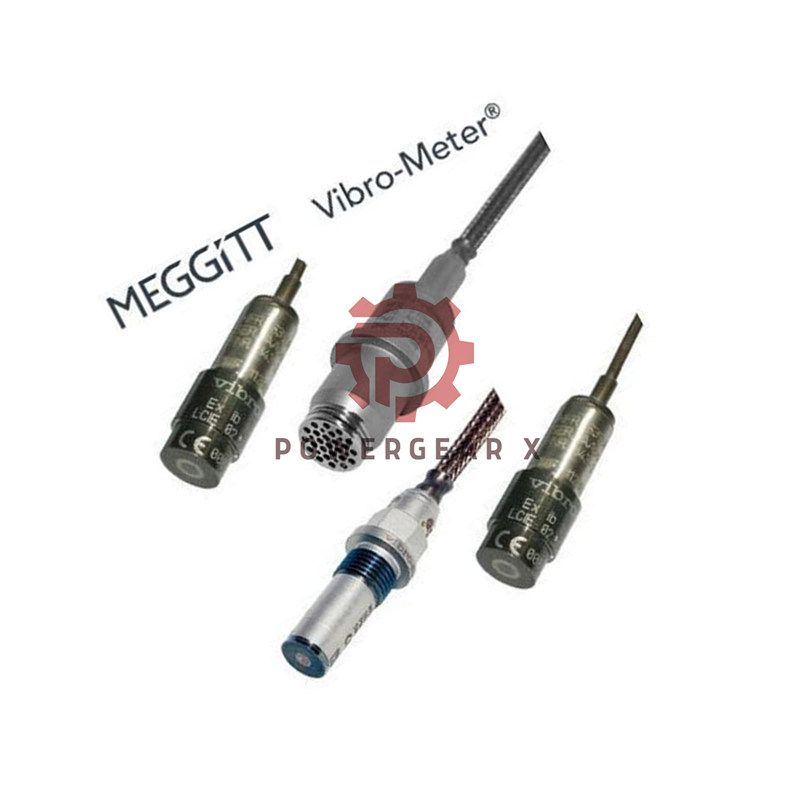

Vibro-Meter CP216 Piezoelectric Pressure Transducer (Model 143-216-000-161)
- Brand: Vibro-Meter®
- Model: 143-216-000-161
- Type: Piezoelectric Pressure Transducer
- Cable Length: 5 meters
- Warranty: 12 months
- Delivery: FedEx, UPS, DHL available
The 143-216-000-161 from Vibro-Meter CP216 series is built for high-performance pressure measurement under extreme environments. It ensures stable and reliable operation from −70°C to 520°C, making it ideal for gas turbines, engines, and industrial testing systems.
Main Features
- High pressure range: up to 350 bar (5076 psi)
- Pressure sensitivity: 200 pC/bar (13.8 pC/psi)
- Frequency response: 2 Hz to 15 kHz
- Excellent linearity: within ±1%
- Built-in case insulation and corrosion resistance
- Vibration and radiation resistant design
- Tested for shock up to 2000 g peak
Technical Highlights
- Signal output: Charge mode, 2-pole isolated system
- Capacitance: 320 pF + 200 pF/m cable
- Material: NIMONIC® alloy 90, INCONEL® cable sheath
- Weight: 12 g (sensor), 25 g/m (cable)
- Resonant frequency: Above 80 kHz
- Internal insulation: >10⁹ Ω at ambient; >5×10⁴ Ω at 450°C
- Radiation tolerance: Gamma 10¹⁰ erg/g, Neutron 10¹⁷ n/cm²
- Connector options: LEMO or Vibro-Meter high-temperature type
Tree-Structured Model Information
- CP216 Series
- 143-216-000-111 — Standard type
- 143-216-000-161 — 5m high-temp cable version
- 143-216-000-211 — Custom cable connector type
Ordering Information
- Type: CP216
- Designation: Piezoelectric Pressure Transducer with Vibro-Meter high-temp connector
- Cable Length: 5m
- Ordering Number: 143-216-000-161
Contact Information
- Email: sales@powergearx.com
- WhatsApp: +86 18030005825
FAQs
- Q: What is the working temperature range of the 143-216-000-161?A: It operates continuously from −54°C to 470°C, and up to 520°C for extreme cases.
- Q: Is the CP216 transducer suitable for high vibration environments?A: Yes, it’s resistant to vibration and shock, with acceleration sensitivity ≤0.5 pC/g.
- Q: What applications best fit this model?A: Gas turbines, jet engine testing, and industrial combustion systems.
- Q: Does it need regular calibration?A: No. Each unit is factory-calibrated at 1 bar, 2 Hz, and requires no recalibration.
- Q: How can I order replacement cables or accessories?A: You can contact us via sales@powergearx.com or WhatsApp at +86 18030005825.
