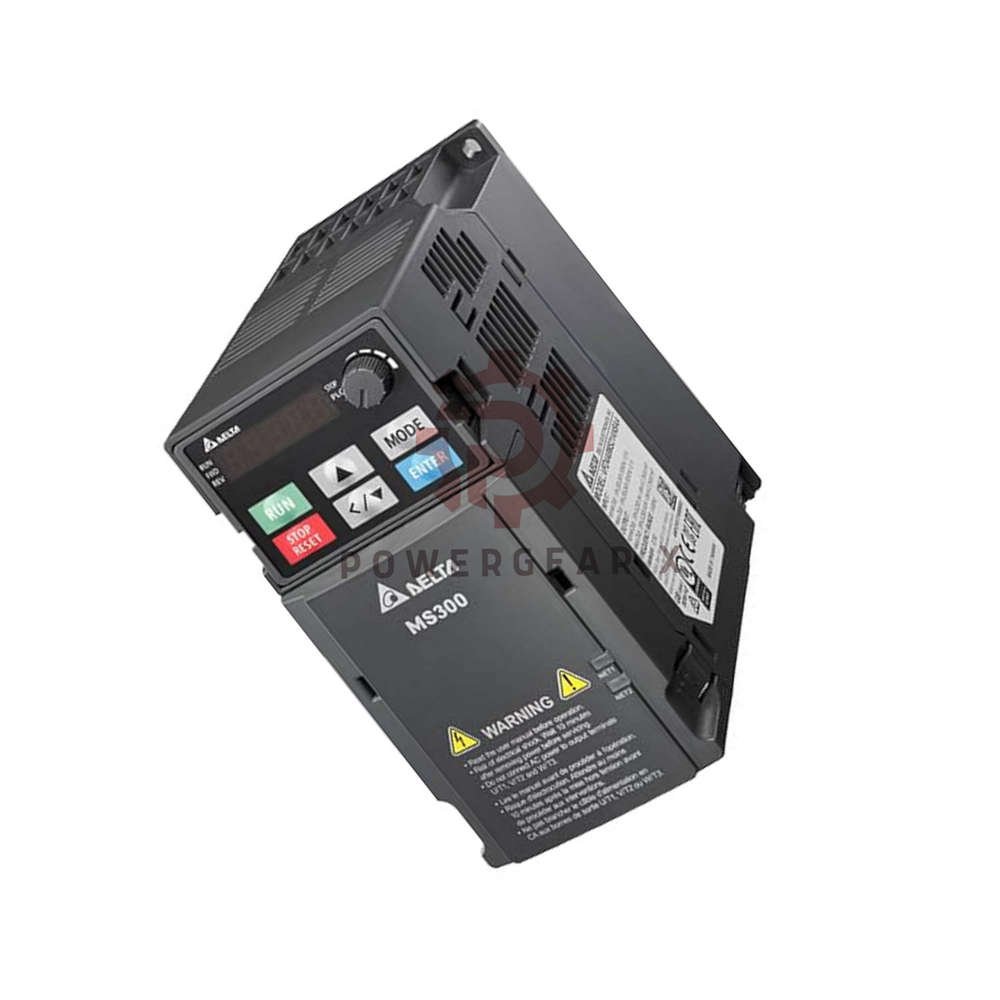

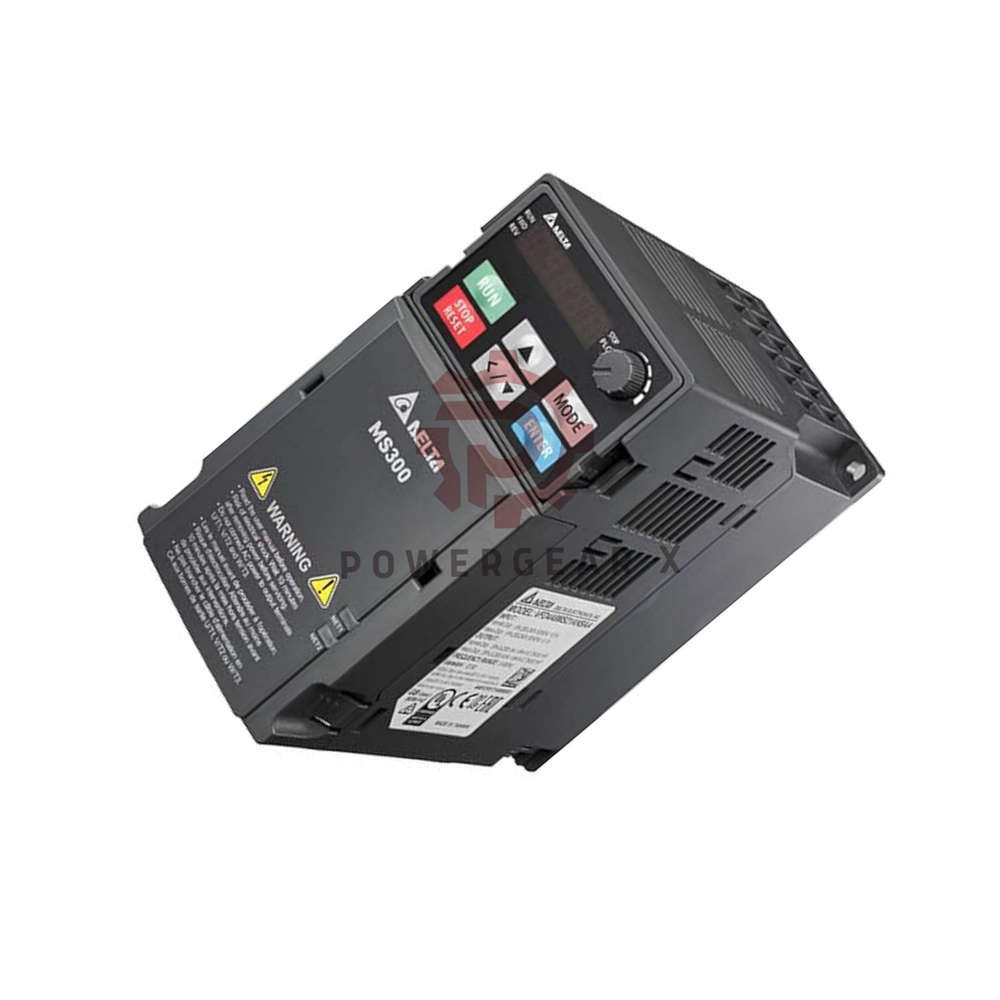

VFD4A8MS21ANSAA MS300 Drive | 1HP 230V Vector Control

Product Introduction

• Delta VFD4A8MS21ANSAA belongs to the MS-300 Series
• Compact vector control drive for industrial automation
• Supports 230 V, 1-phase input, 0.75 KW (1 HP) output
• Frequency range: 0 – 599 Hz, IP20 protection
• Optional EMC filter, built-in brake chopper
• Removable 5-digit LED keypad for remote operation
• Built-in RS-485 (Modbus) and multiple communication cards

Key Features

• Space-saving design – side-by-side mounting allowed
• High starting torque – 150% for 60 s (heavy duty)
• Fast load response – handles impact with DEB function
• Supports IM and PM motors – versatile motor control
• Built-in PLC – reduces external controller needs
• Enhanced braking – built-in chopper for quick stops

Technical Data

• Brand & Model
  • Brand: Delta Electronics
  • Model: VFD4A8MS21ANSAA
  • Series: MS-300 Series
• Electrical Ratings
  • Input: 230 V, 1-phase
  • Motor Power: 1 HP / 0.75 KW
  • Normal Duty Amps: 5 A (120% for 60 s, 150% for 3 s)
  • Heavy Duty Amps: 4.8 A (150% for 60 s, 200% for 3 s)
• Measurement & Frequency
  • Frequency range: 0 – 599 Hz
  • Frequency resolution: 0.01 Hz
  • Linear response: < ±0.5%
• Environmental Tolerance
  • Temperature range: -10°C to +50°C
  • Humidity: < 95% RH (non-condensing)
  • IP20 protection (indoor use)
  • Immunity: built-in EMC filter option
• Physical Dimensions
  • Frame size: B2
  • Weight: 1.8 lbs (0.82 kg)
  • Size: 2.83 x 5.59 x 5.63 inches
• Communication & Compatibility
  • Built-in RS-485 (Modbus)
  • Optional: CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP, EtherCAT, PROFINET
  • Compatible with IM and PM motors

Installation & Maintenance

• Mounting – side-by-side installation for space saving
• Cooling – ensure 10 cm clearance for airflow
• Wiring – use shielded cables for control signals
• Debugging – removable keypad for easy parameter setting
• Maintenance – periodic cleaning of heatsink fins
• Firmware update – via RS-485 or communication card

Certifications & Compliance

• CE, UL, RoHS compliant
• IP20 (IEC 60529)
• Overload capacity per heavy/normal duty

Package Contents

• 1 x VFD4A8MS21ANSAA drive
• 1 x removable keypad
• 1 x quick start guide
• 1 x mounting screws kit
• 1 x EMC filter (optional, if ordered)

Warranty & Shipping

• Warranty: 12 months from delivery
• Shipping: 12–24 hours dispatch
• Carriers: FedEx, UPS, DHL

Expert Review

• “This drive offers excellent torque at low speed. The DEB function saves energy during deceleration. It is reliable for continuous production lines.” – Senior Automation Engineer
• “The built-in PLC and multi-motor control reduce system cost. Easy to integrate with existing Modbus networks.” – Industrial Control Specialist

Manager’s Insight

• “Choosing VFD4A8MS21ANSAA means less downtime. Its compact size fits tight cabinets. The quick delivery and 12-month warranty give peace of mind.” – Product Manager, Powergear X

Applications & Suitable Equipment

• Rewinder machines – precise tension control
• Slitter machines – high dynamic response
• Printing machines – speed regulation
• Drawing machines – constant torque
• Coil winding machines – low-speed accuracy
• Machine tools – spindle drive
• Woodworking & textile machines – variable speed

Frequently Asked Questions

• Can I use this drive with a single-phase 230 V supply?
  • Yes, it is designed for 1-phase 230 V input.
• Is the EMC filter included?
  • No, it is optional. You can order it separately.
• How to set parameters without power?
  • Use the external 24 V DC power option for parameter setting.
• What is the maximum cable length for motor?
  • Keep motor cable under 50 m for best performance.
• Can I control multiple motors with one drive?
  • Yes, it supports multi-motor control with proper settings.
• What happens during power loss?
  • DEB function uses deceleration energy to keep control.

Experience-based Q&A

• How to avoid overcurrent during start?
  • Increase acceleration time or use torque boost.
• Why does the drive trip occasionally?
  • Check for loose wiring or excessive ambient temperature.
• Can I copy parameters to another drive?
  • Yes, use the keypad copy function for quick setup.

Buying Guide

• Confirm input voltage: 230 V 1-phase only.
• Check motor power: up to 0.75 KW (1 HP).
• Select EMC filter if used in sensitive environments.
• Choose communication card for network integration.
• Consider heavy duty rating for high-starting-torque loads.
• Ensure IP20 is suitable for your cabinet.
