Product details

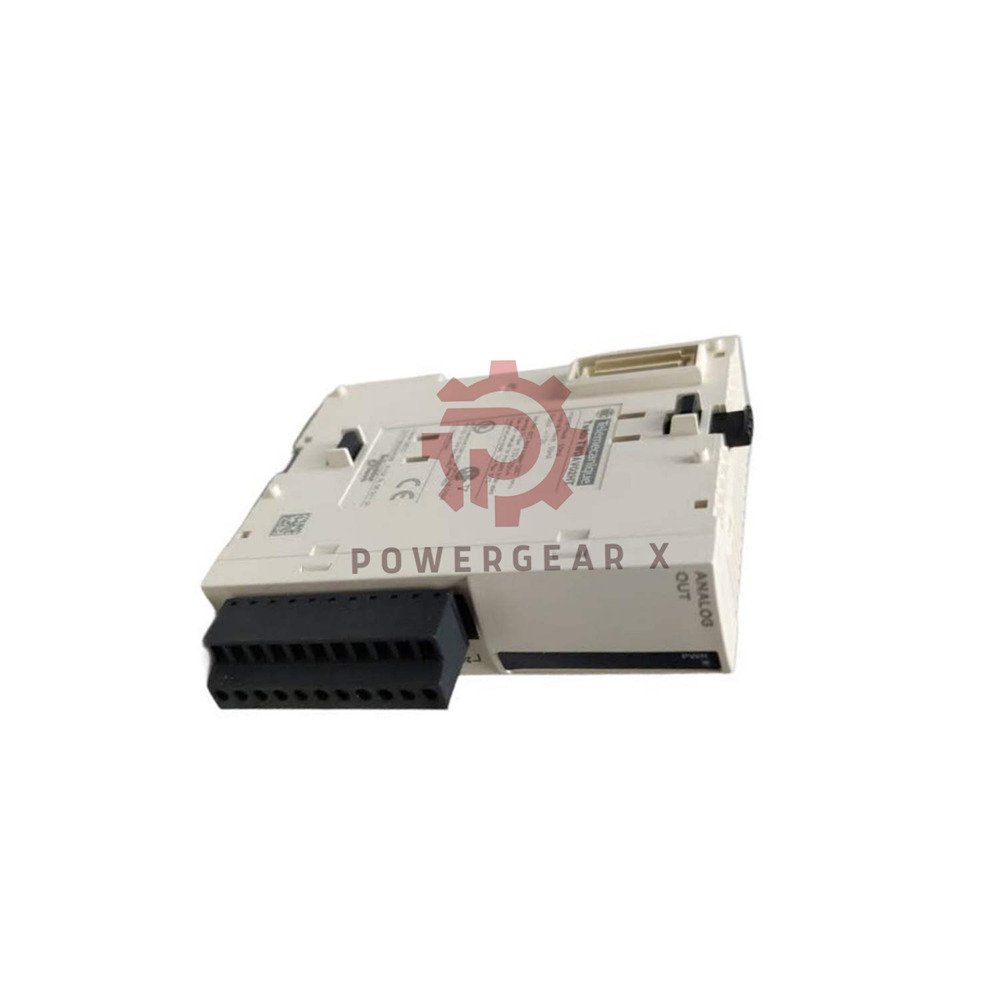

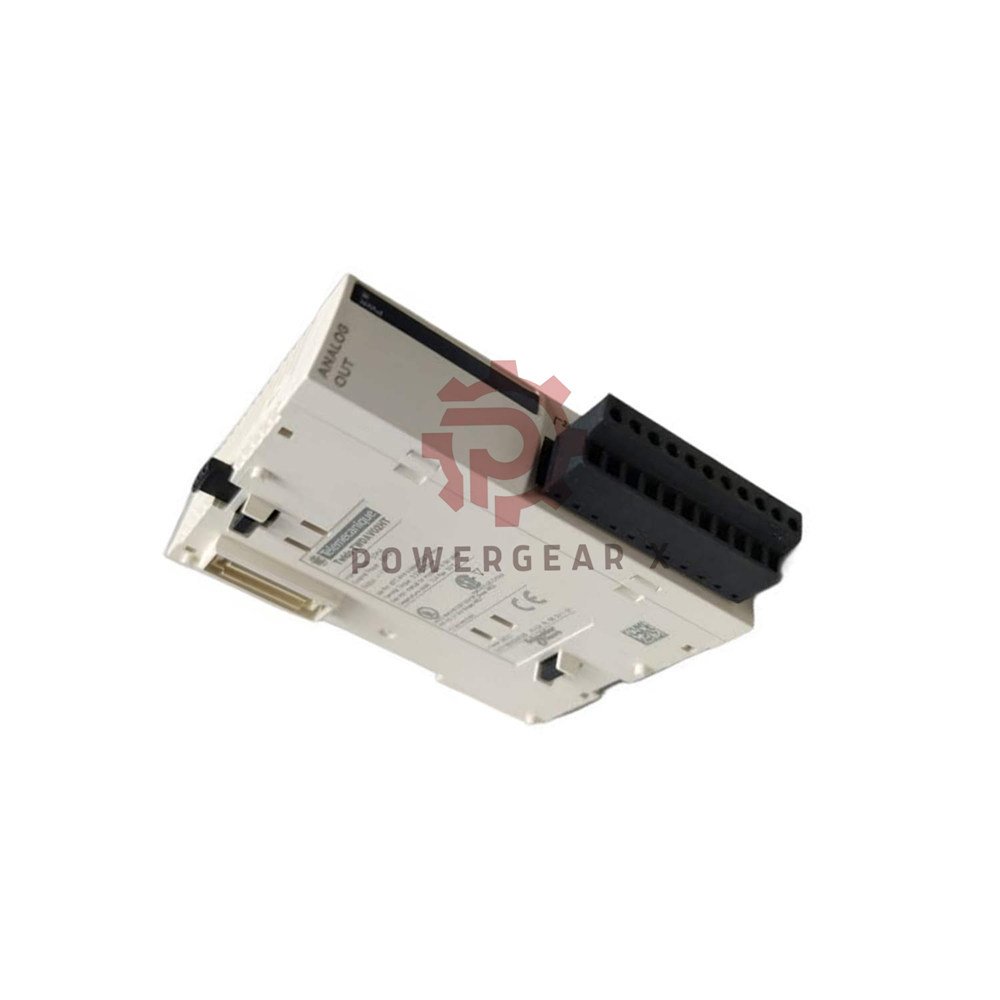

TWDAVO2HT – Analog Output Module
TWDAVO2HT is an analog output module from Schneider Electric. It belongs to the Twido series. This module provides 2 analog outputs with ±10V range. It draws 50 mA maximum per channel. The unit is 24V DC powered and compact.
Key Features
- 2 analog outputs – ±10 VDC range
- 24V DC supply – easy integration
- 50 mA output current capacity
- Expansion module – adds analog capability to Twido PLCs
- Compact design – fits standard Twido rack
Technical Specifications
- Brand: Schneider Electric
- Model: TWDAVO2HT
- Series: Twido
- Type: Analog Output Module
- Number of outputs: 2
- Output range: ±10 VDC
- Output current: 50 mA (max per channel)
- Supply voltage: 24 V DC
- Mounting torque: 0.22-0.25 N·m
- Operating temperature: Up to 55°C
- Compatibility: Twido PLC base controllers
Installation & Mounting
- Mounting: Snap onto Twido expansion bus
- Wiring: Use shielded cables for analog signals
- Torque: Tighten terminals to 0.22-0.25 N·m
- Maintenance: Periodic check of connections
Manager’s Insight
This Twido analog output module adds versatility to small PLC systems. The ±10V range suits most analog actuators. The compact size saves panel space. We recommend it for machine control and HVAC applications. The 12-month warranty and fast shipping give you confidence.
Applications
- Speed control: variable frequency drives (VFDs)
- Position control: servo valves and actuators
- Process control: temperature and pressure regulation
- HVAC: damper and valve positioning
- Machine building: analog signal generation
Comparison with Similar Models
- TWDAVO2HT – 2 outputs, ±10V, 50mA
- TWDAVO1HT – 1 output, ±10V, 50mA
- TWDAVO2MT – 2 outputs, 4-20mA (current loop)
- TM2AMI2HT – newer Modicon M221 analog module
Selection Guide
- Choose TWDAVO2HT if: you need two ±10V analog outputs for Twido.
- Consider this module for: small to medium automation projects.
- Avoid if: you need current output (4-20mA) or more channels.
- Best paired with: Twido base controllers and analog sensors.
- Warranty: 12 months from invoice date.
Shipping & Delivery
- Dispatch: 12-24 hours after order confirmation.
- Carriers: FedEx, UPS, DHL (tracking provided).
- Packaging: Anti-static bag in a sturdy box.
Frequently Asked Questions (FAQ)
- Q: What is the output voltage range?
- A: ±10 VDC (bipolar).
- Q: How many analog outputs does this module have?
- A: Two independent outputs.
- Q: What is the maximum output current?
- A: 50 mA per channel.
- Q: Is this module compatible with Twido base PLCs?
- A: Yes, it expands Twido analog capability.
- Q: What is the operating temperature range?
- A: Up to 55°C ambient.
