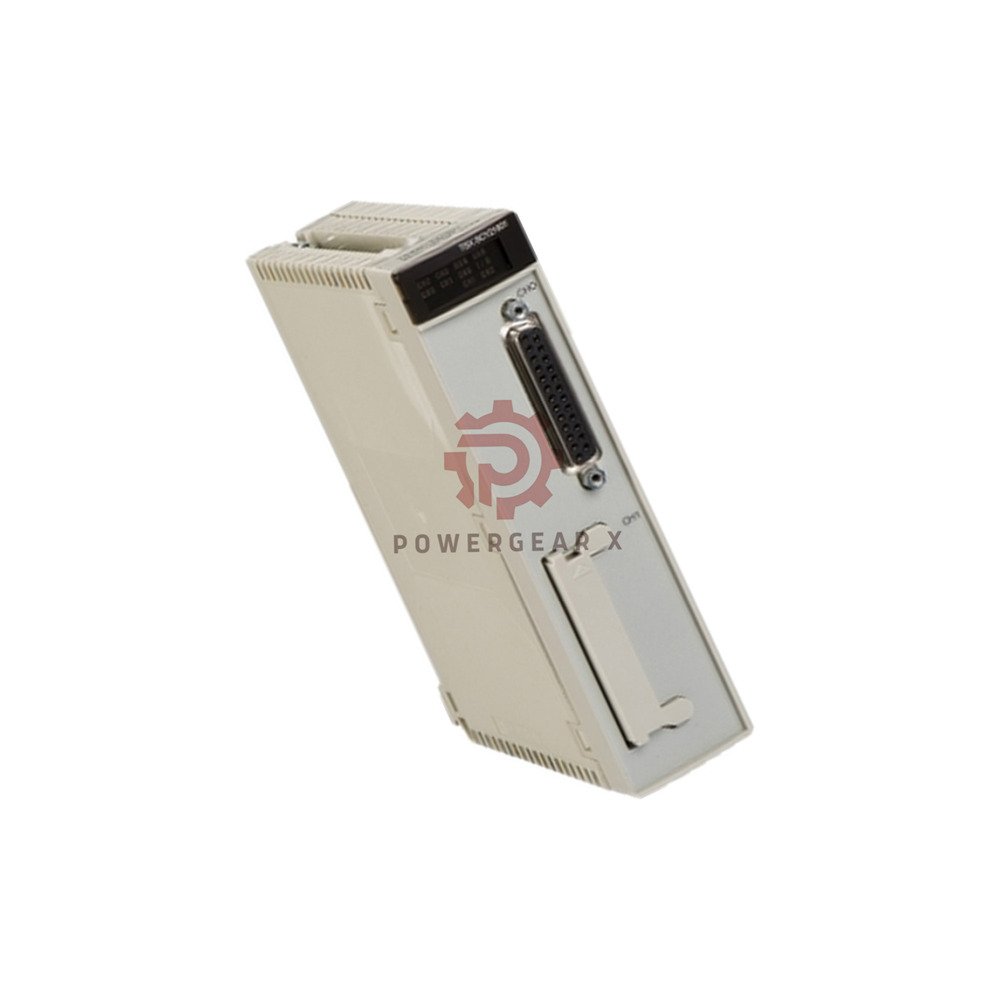

TSXSCY21601 Modicon Premium RS485+PCMCIA Communication Module

TSXSCY21601 – RS485+PCMCIA Communication Module

This module connects 28 devices via a twisted shielded pair cable. It supports Modbus RTU/ASCII and works as a master or slave on a heterogeneous industrial bus. Designed for the Modicon Premium platform, it offers reliable data exchange and diagnostic functions.

• Brand: Schneider Electric
• Model: TSXSCY21601
• Series: Modicon Premium Automation Platform
• Type: Communication Module (RS485 + PCMCIA)

Key Features

• Integrated PCMCIA Type III slot for flexible expansion
• Isolated RS485 serial link (SUB-D 25) – robust in noisy environments
• Master/Slave access – configurable for various network topologies
• Supports up to 28 devices on a 1300 m bus (Modbus)
• Asynchronous baseband transmission – RTU/ASCII frames
• Data rate: 1.2 – 19.2 kbit/s
• Control & monitoring: CRC16 per frame, diagnostic and event counters
• Multiple Modbus functions – read/write words, bits, diagnostics, identification

Technical Specifications

• Measurement & resolution: up to 120 words or 1920 bits per request
• Frequency response: asynchronous, baseband
• Linearity & sensitivity: compliant with Modbus RTU/ASCII standards
• Temperature range (operating): 0 to 60 °C
• Temperature range (storage): -25 to 70 °C
• Environmental tolerance: 5–95% RH (non-condensing), altitude ≤2000 m
• Immunity: isolated RS485, shielded cable, robust against EMI
• Current consumption: 350 mA at 5 V DC
• Weight: 0.36 kg (standard format)
• Bus length: 1300 m (main), tap links ≤15 m
• Address range: 0…97

Installation & Commissioning

• Insert the module into a Premium or Atrium rack (single slot).
• Connect the RS485 cable to the SUB-D 25 port (twisted shielded pairs).
• Set the address (0–97) and configure master/slave mode via Unity Pro.
• LED indicators (RUN, ERR, CH0) simplify startup and troubleshooting.
• No special tools required – standard wiring practices apply.

Maintenance & Debugging

• Diagnostic counters and event counters are accessible via software.
• LEDs show module status, communication activity, and internal faults.
• Hot-swap not supported – power off before removal.
• Regular firmware updates are available through Unity Pro.

Compatibility

• Software: Unity Pro (all versions)
• Compatible with: Modicon Premium, Atrium, and other Premium-family CPUs
• Protocol: Modbus RTU/ASCII (master/slave)
• Physical: 1 x PCMCIA Type III slot, 1 x RS485 isolated SUB-D 25

Certifications & Standards

• CE marked
• UL listed
• RoHS compliant
• Designed for industrial environments (IEC 61131-2)

Package Contents

• TSXSCY21601 communication module (1 unit)
• Quick start guide (printed)
• Warranty card (12 months)

Warranty & Logistics

• Warranty: 12 months from purchase date
• Shipping: 12–24 hours dispatch
• Carriers: FedEx, UPS, DHL (tracking provided)

Expert Review

This module is a reliable choice for Premium users. Its isolated RS485 and PCMCIA slot give flexibility in harsh factory floors. Diagnostic counters and event logs reduce downtime. The 1300 m bus length allows large plant layouts. Recommended for system integrators who value robustness and simplicity.

Manager’s Insight

From a cost-benefit perspective, the TSXSCY21601 delivers stable communication for up to 28 nodes. The master/slave architecture works well with existing Modbus networks. We have seen excellent performance in water treatment and conveyor systems. It is a cost-effective upgrade for legacy Premium installations.

Applications & Suitable Devices

• Ideal for: PLC networks, remote I/O, drives, and sensors
• Industries: Manufacturing, water/wastewater, energy, material handling
• Use with: Modicon Premium CPUs, Atrium controllers, third-party Modbus devices
• Typical applications: Data acquisition, process control, SCADA integration

Frequently Asked Questions

• Can I use this module with other PLC brands?
  It is designed for Modicon Premium. It can communicate with any Modbus RTU device as a master or slave.
• What is the maximum cable length?
  1300 m for the main bus. Tap links are limited to 15 m.
• Is the RS485 port isolated?
  Yes, it provides galvanic isolation to protect against ground loops.
• Can I use ASCII mode?
  Yes, the module supports both RTU and ASCII transmission frames.
• How many devices can I connect?
  Up to 28 devices, with address range 0–97.
• Is Unity Pro mandatory?
  Yes, configuration and diagnostics require Unity Pro software.
• What is the typical current draw?
  350 mA at 5 V DC, ensure your power supply supports it.

Selection Guide

• If you need a cost-effective RS485 master for Premium, choose this module.
• For high node counts (up to 28), this module fits perfectly.
• When long distance is required (1300 m), this is the right option.
• If you already use Unity Pro, integration is seamless.
• For legacy systems with PCMCIA expansion, this is the direct replacement.
