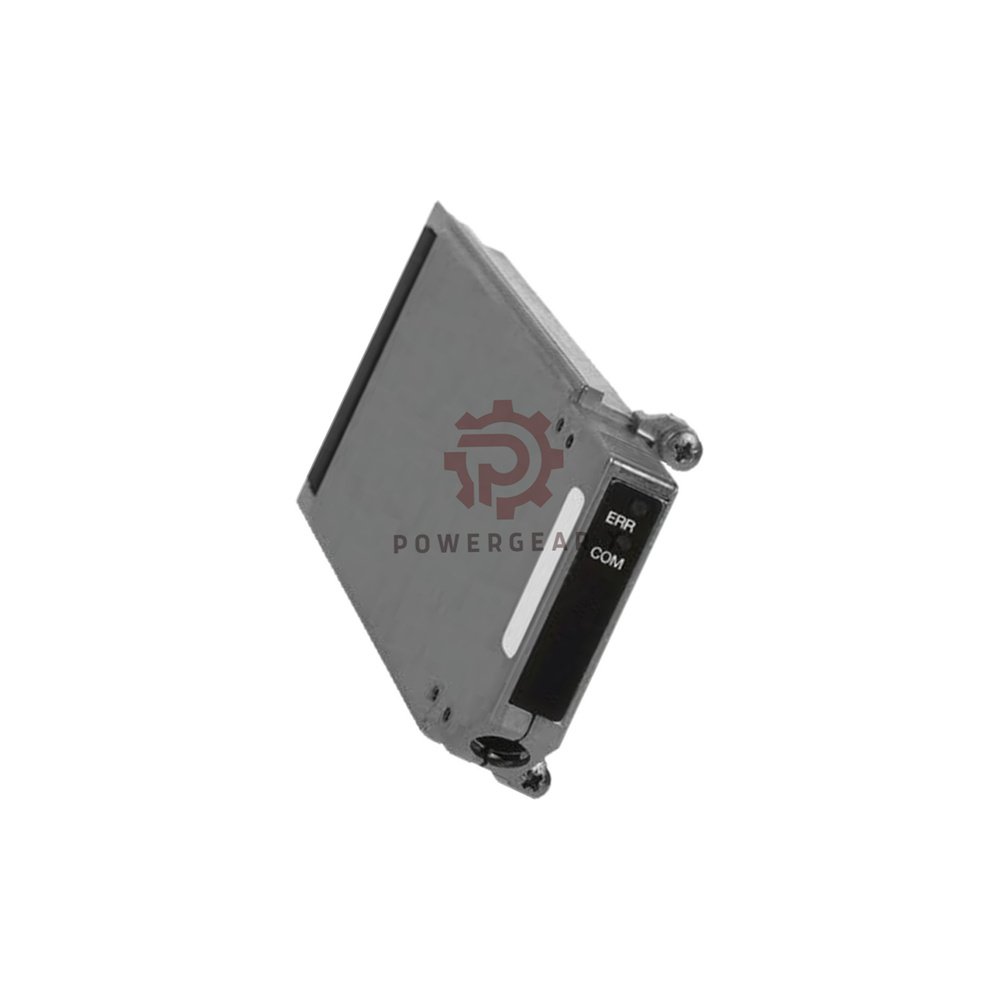

TSXSCP111 Modicon Premium PCMCIA Modbus Comm Card

Product Introduction

TSXSCP111 is a PCMCIA card for Modicon Premium. It supports Modbus, UNI-TELWAY, and character mode. This accessory draws 140mA at 5V DC. It ensures reliable serial communication via RS232 D.

Key Features & Benefits

• Multi-Protocol Support – Modbus, Uni-Telway, and character mode.
• Low Power Draw – Consumes only 140mA at 5V DC.
• Compact PCMCIA Type III – Fits Premium processors and Atrium co-processors.
• RS232 D Interface – Standard physical connection.

Technical Specifications

• Brand – Schneider Electric (Modicon)
• Model – TSXSCP111
• Series – Modicon Premium Automation Platform
• Module Type – Communication accessory (PCMCIA card)
• Communication Protocols – Uni-Telway, character mode, Modbus
• Physical Interface – RS232 D
• Current Consumption – 140mA at 5V DC
• Weight – 0.105 kg (0.231 lb)
• Compatibility – TSXSCY21601, TSX37-21/22, Premium processors, Atrium co-processors
• Operating Temperature – 0°C to +60°C (ambient)
• Storage Temperature – -25°C to +85°C
• Relative Humidity – 5% to 95% (non-condensing)
• EMC Immunity – Industrial environment (EN 61000-6-2)
• ESD Protection – 8 kV (air), 4 kV (contact)

Installation & Setup

• Insert the card into the PCMCIA Type III slot of the processor.
• Connect the RS232 D cable to the target device.
• Configure protocol via PL7 software or web interface.
• No external power supply is needed – powered by the backplane.

Commissioning & Maintenance

• LED status indicators for quick diagnostics.
• Hot-swappable – replace without powering down the PLC.
• Firmware updates via standard serial link.
• Clear labeling for easy identification.

Compatibility

• Processors – Premium TSX P57, Atrium co-processors.
• Communication Modules – TSXSCY21601, TSX37-21/22.
• Software – PL7 Pro, Unity Pro (with appropriate drivers).
• Works with Modbus RTU and Uni-Telway networks.

Certifications

• CE Marking – complies with EU directives.
• UL Listed (File E145150).
• RoHS compliant.
• REACH compliant.

Package Contents

• 1 × TSXSCP111 PCMCIA card
• Quick start guide (paper)
• Warranty card

Warranty & Shipping

• Warranty – 12 months from date of invoice.
• Shipping – 12-24 hours dispatch (business days).
• Couriers – FedEx, UPS, DHL (worldwide).
• Tracking number provided upon shipment.

Expert Review

Manager’s Insight: The TSXSCP111 offers a reliable, low-cost communication upgrade for legacy Premium systems. Its multi-protocol support simplifies integration with existing Modbus and Uni-Telway networks. The 140mA draw is efficient, and the PCMCIA form factor makes installation effortless. Highly recommended for field upgrades.

Applications & Suitable Devices

• Ideal for: PLC expansions, SCADA connectivity, remote I/O links.
• Devices: Modicon Premium TSX P57, Atrium co-processors, TSXSCY21601, TSX37-21/22.
• Industries: Automotive, packaging, material handling, water treatment.
• Use cases: Data logging, machine-to-machine communication, legacy system upgrades.

Frequently Asked Questions (FAQ)

• Q: Does this card work with Modicon M340?
• A: No. This card is specific to Premium and Atrium platforms.
• Q: Can I use it with Unity Pro?
• A: Yes, with appropriate driver and configuration.
• Q: Is it hot-swappable?
• A: Yes, the Premium backplane supports hot swap.
• Q: What cable is needed for RS232 D?
• A: A standard male-to-female DB9 cable.
• Q: How do I select protocol?
• A: Via PL7 software or the embedded web server.
• Q: My card is not detected. What should I check?
• A: Verify insertion, backplane power, and driver installation.
• Q: Does it support 485?
• A: No, the physical interface is RS232 D only.
• Q: Can I use this with a PC as a gateway?
• A: Not directly; it is for PLC-to-device communication.
• Q: What is the maximum cable length?
• A: For RS232, max recommended length is 15 meters (50 ft).
• Q: Is this a new or refurbished item?
• A: This is brand new, from original stock.

Selection Guide & Tips

• Check compatibility – confirm your processor is TSX P57 or Atrium.
• Protocol match – verify your network uses Modbus or Uni-Telway.
• Power budget – ensure backplane can supply 140mA at 5V.
• Physical space – one PCMCIA slot required (Type III).
• Software version – PL7 or Unity with correct drivers.
• For new installations – consider future expansion ports.
• For upgrades – this card replaces older TSX SCP 111 variants.
