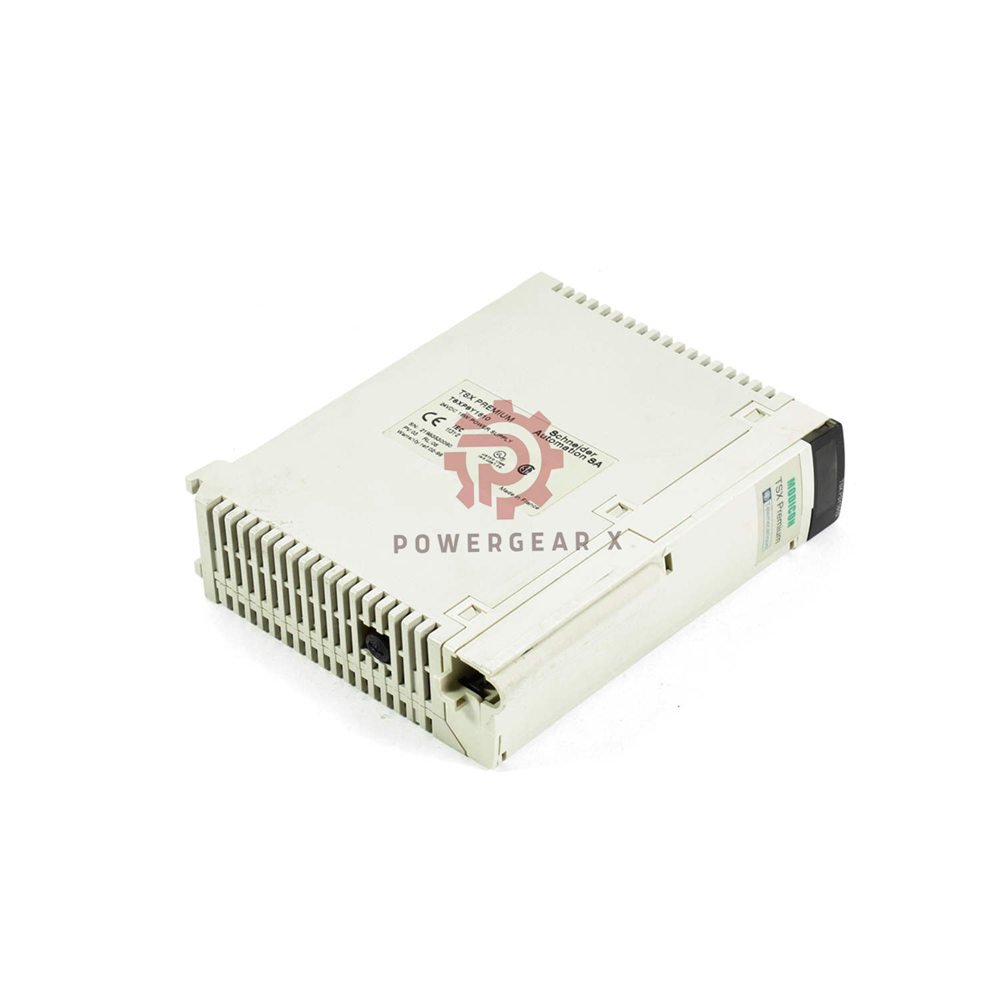

TSXPSY1610M Schneider Modicon Premium Power Supply Module

TSXPSY1610M Schneider Electric Modicon Premium Power Supply Module

The TSXPSY1610M is a Schneider Electric power supply module from the Modicon Premium series. It converts 24 V DC input into stable 5 V DC and 24 V DC outputs. This module suits industrial control systems that need reliable DC power. It occupies only one slot. The product is now discontinued. Last verification: 2026-09.

Technical Data

• Brand: Schneider Electric
• Model: TSXPSY1610M
• Series: Modicon Premium
• Module Type: Power Supply Module
• Supply Voltage: 24 V DC
• Input Voltage Range: 19.2 to 30 V DC
• Input Current: ≤ 1500 mA at 24 V DC
• Output Voltage and Current:
  • 5 V DC at 3 A
  • 24 V DC at 0.6 A
• Power Consumption: 30 W total secondary
• Slots Required: 1
• Protection Rating: IP20
• Dimensions: 140 × 35 × 80 mm (H × W × D)
• Weight: 0.54 kg
• Operating Temperature: Not available
• Storage Temperature: Not available
• Relative Humidity: Not available

Installation Guide

• Mount the module in a Modicon Premium rack.
• Use one slot only.
• Connect a 24 V DC supply within 19.2 to 30 V DC.
• Keep input current below 1500 mA.
• Check 5 V DC and 24 V DC output loads.
• Install inside an IP20 protected cabinet.
• Avoid dust, moisture, and direct contact.

Commissioning and Maintenance Convenience

• Front access helps fast wiring and checks.
• One-slot design saves rack space.
• Clear voltage labels reduce setup errors.
• Routine checks include input voltage and output load.
• Replace damaged units with the same model.
• Keep spare fuses and terminals ready.

Compatibility Notes

• Designed for Schneider Electric Modicon Premium racks.
• Works with modules that need 5 V DC and 24 V DC.
• Not compatible with other PLC families without an adapter.
• Check rack power budget before installation.
• Use original Schneider terminals for best fit.

Certifications and Compliance

• CE marking applies to standard Schneider Electric industrial products.
• RoHS compliance is typical for this product family.
• UL and cUL ratings may apply by region.
• Confirm local rules before final installation.

Packing List

• 1 × TSXPSY1610M power supply module
• 1 × protective packing box
• 1 × quick start or handling note

Warranty and Shipping

• 12-month warranty covers manufacturing defects.
• Orders ship in 12 to 24 hours after payment.
• Carriers include FedEx, UPS, and DHL.
• Tracking details go out after dispatch.

Expert Review

The TSXPSY1610M is a solid choice for legacy Modicon Premium systems. Its 24 V DC input and dual outputs meet common control needs. The 5 V DC at 3 A rail supports logic circuits. The 24 V DC at 0.6 A rail powers sensors and relays. The 30 W total secondary power fits many small to medium racks. The IP20 rating limits use to clean cabinets. Since the line is discontinued, buyers should stock spares. Overall, it remains a practical replacement for existing setups.

Manager’s Insight

Buy this module when you maintain Modicon Premium systems. It solves power loss issues fast. It also keeps one-slot space free. Check your rack voltage and current needs first. Confirm that 5 V DC and 24 V DC outputs match your loads. If not, choose a different power module. For urgent repairs, ask about stock before ordering. For bulk needs, contact sales@powergearx.com or +86 18030005825.

Best Suited Devices and Applications

• Modicon Premium PLC racks
• Industrial control panels
• Factory automation cabinets
• Process control systems
• Legacy machine retrofits
• Small to medium I/O networks

FAQ

• Q: What input voltage does this module need?
  A: It needs 24 V DC, with a range of 19.2 to 30 V DC.
• Q: How many slots does it use?
  A: It uses one slot in a Modicon Premium rack.
• Q: What outputs does it provide?
  A: It gives 5 V DC at 3 A and 24 V DC at 0.6 A.
• Q: Is this product still active?
  A: No. It is discontinued. Last verification was 2026-09.
• Q: What is the protection rating?
  A: The rating is IP20. Use it in a clean cabinet.
• Q: How fast do orders ship?
  A: Orders ship in 12 to 24 hours.
• Q: Which couriers do you use?
  A: We use FedEx, UPS, and DHL.
• Q: What warranty comes with it?
  A: It includes a 12-month warranty.
• Q: Can I use it in another PLC family?
  A: No. It is made for Modicon Premium racks.
• Q: What should I check before buying?
  A: Check rack voltage, current load, slot space, and stock status.
• Q: Do you offer help with model selection?
  A: Yes. Email sales@powergearx.com or message +86 18030005825.
• Q: What if the module arrives damaged?
  A: Contact us fast. We will review the case under warranty.

Buying Guide

• Confirm your rack is Modicon Premium.
• Match input voltage to your 24 V DC supply.
• Add up all 5 V DC and 24 V DC loads.
• Keep total load within 3 A and 0.6 A.
• Check that one free slot is available.
• Ask for stock before you order.
• Buy spare units for critical lines.
• Contact sales@powergearx.com for bulk pricing.
