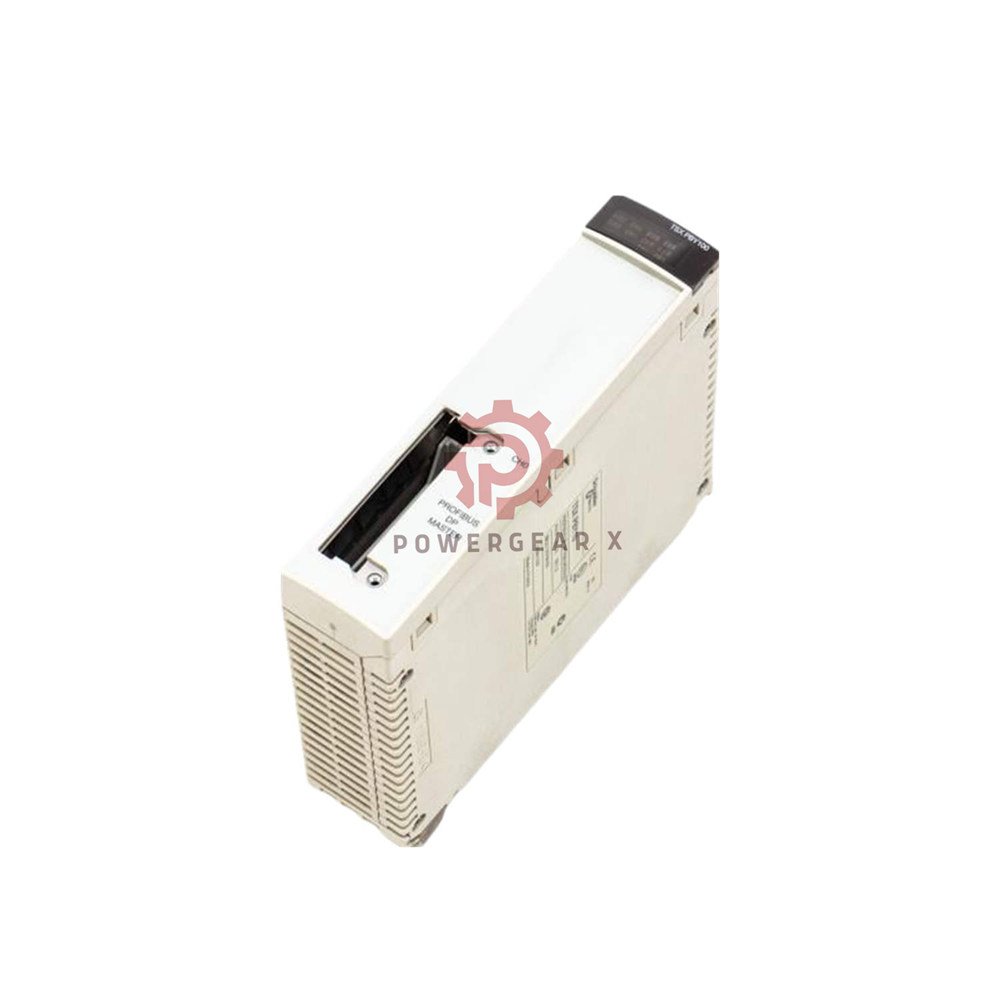

TSXPBY10 Schneider Electric Profibus-DP Module for Modicon Premium PLC

TSXPBY10 Schneider Electric Profibus-DP Option Module for Modicon Premium PLC

The TSXPBY10 is a Profibus-DP option module from Schneider Electric. It works with Modicon Premium PLCs. This module connects your PLC to a Profibus network. It handles fast data exchange. The module supports speeds from 9.6 Kbit/s to 12 Mbit/s. It fits demanding automation tasks. You get smooth communication across your system.

This module comes from the TSX Micro PLCs product line. It weighs 0.45 kg. It draws 400 mA at 5 V DC. The rack power supply provides this power. The TSXPBY10 supports up to 124 slaves with repeaters. It offers 4096 inputs and 4096 outputs. This makes it ideal for large control systems. It works in temperatures from 0 °C to +60 °C. It stores safely from -25 °C to +70 °C. Humidity from 30% to 95% is fine, as long as there is no condensation. It operates at altitudes up to 2000 meters.

Technical Data

• Brand: Schneider Electric
• Model: TSXPBY10
• Series: TSX Micro PLCs
• Module Type: Profibus-DP Option Module
• Compatibility: Modicon Premium PLCs
• Transmission Rate: 9.6 Kbit/s to 12 Mbit/s
• Maximum Segment Length: Up to 1200 meters at 9.6 Kbit/s
• Number of Slaves: Up to 124 with repeaters
• Input/Output Data Size: 4096 inputs / 4096 outputs
• Operating Temperature: 0 °C to +60 °C
• Storage Temperature: -25 °C to +70 °C
• Humidity: 30% to 95% (non-condensing)
• Altitude: 0 to 2000 meters
• Vibration Immunity: IEC 68-2-6
• Shock Immunity: IEC 68-2-27
• Electrostatic Discharge Immunity: IEC 1000-4-2
• Power Supply: 5 V DC from rack power supply
• Current Consumption: 400 mA on 5 V DC
• Weight: 0.45 kg

Installation Guide

• Mount the TSXPBY10 in a Modicon Premium PLC rack.
• Connect the Profibus-DP cable to the module port.
• Set the transmission rate on your network.
• Use repeaters for more than 32 slaves.
• Keep segment length under 1200 meters at 9.6 Kbit/s.
• Check that the rack supplies 5 V DC.
• Do not exceed 400 mA current draw.

Commissioning and Maintenance

• Configure the module in your PLC software.
• Assign slave addresses before power up.
• Monitor network traffic with standard Profibus tools.
• Clean the module with dry air only.
• Check cable connections every six months.
• Replace the module if error LEDs stay on.

Compatibility Notes

• Works only with Modicon Premium PLCs.
• Not for TSX Micro PLCs despite the product line name.
• Use standard Profibus-DP cables and connectors.
• Repeaters extend the number of slaves to 124.
• No extra power supply needed beyond the rack.

Certifications

• Vibration: IEC 68-2-6
• Shock: IEC 68-2-27
• Electrostatic Discharge: IEC 1000-4-2

Package Contents

• One TSXPBY10 module
• User manual
• Original packaging

Warranty and Shipping

• Warranty: 12 months
• Dispatch: 12 to 24 hours
• Couriers: FedEx, UPS, DHL

Expert Review

The TSXPBY10 is a solid choice for Modicon Premium users. It brings Profibus-DP to your PLC without fuss. The wide speed range covers most factory networks. The high slave count with repeaters suits large lines. The 4096 I/O size handles heavy data. The module survives tough conditions. It meets key IEC standards for vibration, shock, and ESD. Install is simple. Maintenance is low. For system integrators, this module saves time and wiring. It is not the fastest Profibus module on the market, but it is reliable. The power draw is modest. The 0.45 kg weight keeps rack load light.

Manager’s Insight

We see strong demand for the TSXPBY10 in retrofits. Many plants still run Modicon Premium PLCs. This module lets them join a Profibus network without replacing the whole rack. The 12 Mbit/s top speed is enough for most sensor and actuator data. The 1200 meter segment length at 9.6 Kbit/s helps in long conveyor systems. The 124 slave limit with repeaters covers most assembly lines. The 12-month warranty and 12-24 hour dispatch make it easy to stock. FedEx, UPS, and DHL give fast global delivery. If you need a proven Profibus-DP option for Premium, this is a safe pick.

Ideal Equipment and Applications

• Modicon Premium PLC racks
• Factory automation lines
• Conveyor control systems
• Packaging machines
• Material handling equipment
• Process control networks
• Remote I/O expansion
• Legacy system upgrades

FAQ

Q: What is the main use of the TSXPBY10?

A: It adds Profibus-DP communication to Modicon Premium PLCs.

Q: Can I use it with a TSX Micro PLC?

A: No. It only works with Modicon Premium PLCs.

Q: How many slaves can I connect?

A: Up to 124 slaves when you use repeaters.

Q: What is the longest cable segment?

A: 1200 meters at 9.6 Kbit/s.

Q: What power does it need?

A: 5 V DC from the rack. It draws 400 mA.

Q: Does it work in hot places?

A: Yes, from 0 °C to +60 °C.

Q: How fast can I get it?

A: We ship in 12 to 24 hours via FedEx, UPS, or DHL.

Q: What is the warranty?

A: 12 months.

Q: How do I buy the right Profibus module?

A: Check your PLC family first. Confirm the network speed you need. Count your slaves. Then match the I/O size. The TSXPBY10 fits Modicon Premium. If you use another PLC, look for a different module.

Q: What if my network needs more than 124 slaves?

A: You need a different network design. Profibus-DP supports up to 126 addresses per segment. Repeaters extend the physical length and device count. But 124 is the practical limit for this module with repeaters.

Q: Can I install it myself?

A: Yes, if you know Modicon Premium racks. Follow the installation guide above. No special tools are needed.
