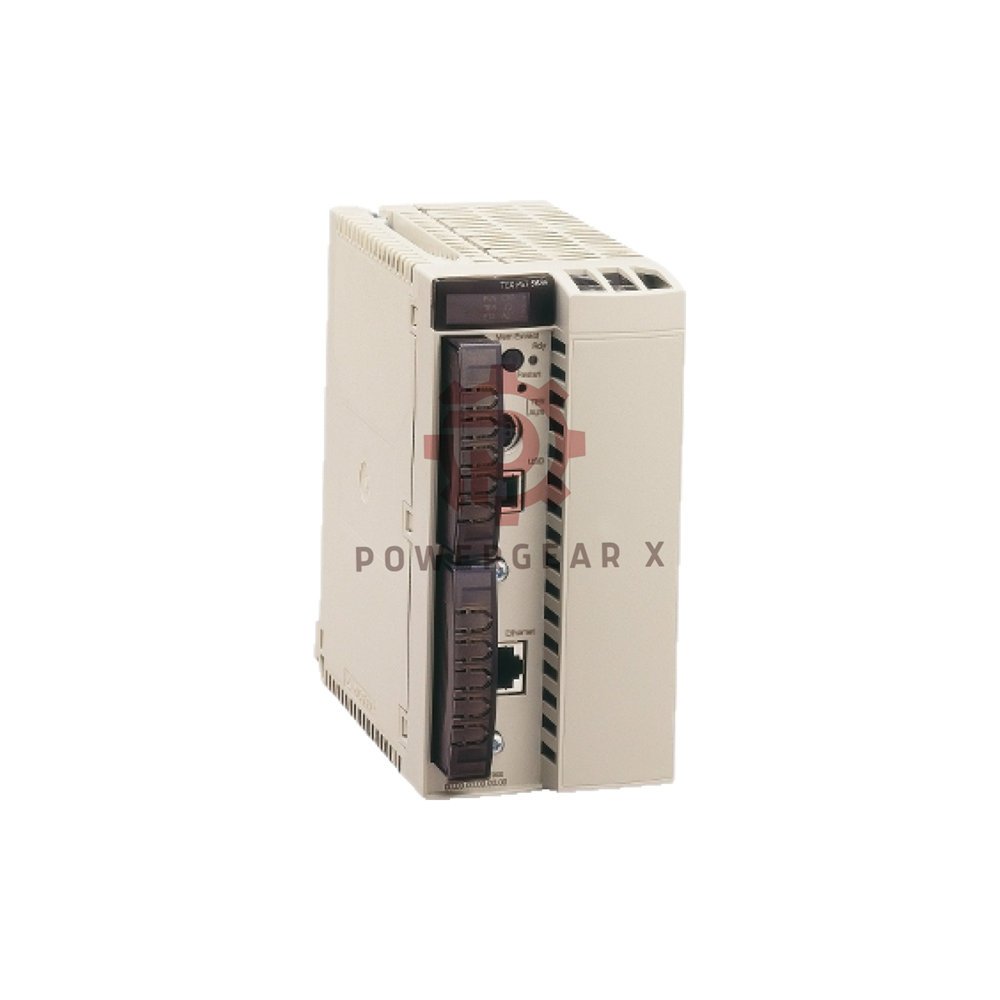

TSXP574634M | Schneider Electric Modicon Premium Unity Processor
TSXP574634M is a Unity processor for the Modicon Premium platform. It runs on a PowerPC core at 100 MHz. The unit offers 2 MB program memory and 440 KB data memory. It supports Unity Pro and EcoStruxure Control Expert. This module fits 4, 6, 8, and 12-slot backplanes. It is a solid choice for legacy Premium systems that need reliable control and fast boolean scan times.
Need a quote or stock check? Email sales@powergearx.com or chat on +86 18030005825. We reply fast and ship in 12–24 hours.
Why It Stands Out
- Fast logic execution: 0.1 µs per boolean instruction.
- Strong memory: 2 MB program plus 440 KB data.
- Built-in communications: 1 Ethernet 10/100 port and 2 RS-485 ports.
- Flexible I/O: up to 1024 discrete points and 128 analog points.
- Rack support: 16 local racks for 4/6/8-slot backplanes, or 8 racks for 12-slot backplanes.
- Expansion ready: accepts Premium backplane communication modules.
- Low power draw: 7 W, 1880 mA at 5 V DC.
- Compact build: 140 × 35 × 80 mm and 0.5 kg.
Technical Data
- Brand: Schneider Electric
- Model: TSXP574634M
- Series: Modicon Premium
- Module type: Unity processor
- Processor: Unity, PowerPC-based
- Clock speed: 100 MHz
- Math coprocessor: Integrated PowerPC FPU
- Program memory: 2048 KB (2 MB)
- Data memory: 440 KB
- Internal RAM: 440 KB (data)
- Software: Unity Pro / EcoStruxure Control Expert
- Scan speed: 0.1 µs per boolean instruction
I/O Capacity
- Discrete I/O max: 1024 points
- Analog I/O max: 128 points
- Backplane slots: 4, 6, 8, 12
- Local racks: 16 racks for 4/6/8-slot; 8 racks for 12-slot
- Expansion racks: Not available
Communication
- Built-in ports: 1 Ethernet 10/100 RJ45, 2 RS-485 serial
- Protocols: Modbus TCP/IP, Modbus RTU
- Expansion modules: Fipio, Fipway, Modbus Plus, Ethernet, PROFIBUS DP
Electrical
- Supply voltage: 5 V DC from backplane
- Power consumption: 7 W
- Bus current: 1880 mA at 5 V DC
Physical
- Dimensions: 140 × 35 × 80 mm
- Weight: 0.5 kg
- Protection rating: IP20
Environment and Durability
- Operating temperature: Not available
- Storage temperature: Not available
- Relative humidity: Not available
- Protection rating: IP20
- Noise immunity: Designed for industrial control cabinets
Installation Guide
- Mount the processor in a Premium backplane slot.
- Use 4, 6, 8, or 12-slot racks as needed.
- Keep the module in a dry, clean cabinet.
- Respect IP20 limits. Do not expose to water or dust.
- Connect Ethernet and RS-485 cables with care.
- Check 5 V DC backplane power before startup.
- Use Unity Pro or EcoStruxure Control Expert for setup.
Setup and Maintenance
- Upload and save the program before changes.
- Monitor scan time and memory use.
- Check port LEDs for link and activity.
- Clean the cabinet area on a regular schedule.
- Replace only with a compatible Premium module.
- Keep spare parts for critical lines.
Compatibility
- Works with Modicon Premium backplanes.
- Supports Unity Pro and EcoStruxure Control Expert.
- Accepts Premium communication modules.
- Replacement path: Modicon M580 BMEP58xxx.
- Not for expansion racks.
Certifications
- CE and UL information: check the label and manual.
- RoHS and WEEE: follow local rules.
- Confirm site standards before installation.
Packing List
- 1 × TSXP574634M processor
- Protective packaging
- Order and test records
Warranty and Shipping
- Warranty: 12 months
- Dispatch: 12–24 hours
- Couriers: FedEx, UPS, DHL
- Support: sales@powergearx.com or +86 18030005825
Expert Review
The TSXP574634M is a mature Premium processor. It pairs strong memory with fast boolean scans. Engineers like it for legacy upgrades and spare-part programs. It is not the newest platform, but it is stable and well understood. For plants that already run Modicon Premium, this module lowers risk. It keeps existing racks, wiring, and software intact. If you need new long-term support, the M580 is the modern path. If you need a proven drop-in processor, this model remains a smart pick.
Manager’s Insight
Stock this module for maintenance teams. Demand stays steady because many Premium systems still run in the field. Lead time and condition matter more than price alone. Buy tested units with clear warranty terms. Offer fast shipping and clear replacement advice. That mix wins repeat orders from system integrators and plant engineers.
Best Fit Applications
- Legacy Modicon Premium control systems
- Factory automation lines
- Process control cabinets
- Water and wastewater plants
- Material handling systems
- Spare-part programs for critical assets
- System integrator retrofit projects
FAQ
Q: What software does the TSXP574634M use?
A: It uses Unity Pro or EcoStruxure Control Expert. Check your project version before you buy.
Q: How many I/O points can it handle?
A: Up to 1024 discrete points and 128 analog points. Actual limits depend on your rack and modules.
Q: Does it support Ethernet?
A: Yes. It has one Ethernet 10/100 RJ45 port and two RS-485 ports.
Q: Can I use it in a 12-slot rack?
A: Yes. It supports 12-slot racks, but local rack count drops to 8.
Q: Is expansion rack support included?
A: No. Expansion racks are not available for this model.
Q: What is the replacement model?
A: Schneider Electric points to the Modicon M580 series, such as BMEP58xxx processors.
Q: How fast is the scan time?
A: It runs at 0.1 µs per boolean instruction. That is fast for most legacy logic tasks.
Q: What is the warranty?
A: We offer a 12-month warranty. Ask us for full terms before order.
Q: How fast do you ship?
A: We dispatch in 12–24 hours. We use FedEx, UPS, and DHL.
Q: Can you help me choose the right processor?
A: Yes. Send your rack type, I/O count, and software version. We will guide you. Contact sales@powergearx.com or +86 18030005825.
Buying Guide
- Confirm your backplane slot count first.
- Check your Unity Pro or Control Expert version.
- Count discrete and analog I/O needs.
- Decide if you need Modbus TCP/IP or serial links.
- Plan for M580 migration if long-term support matters.
- Ask for tested stock and a 12-month warranty.
- Order early if the line cannot stop.
Lifecycle
- Status: Discontinued
- Last verified: 2026-09
- Replacement: Modicon M580 BMEP58xxx
