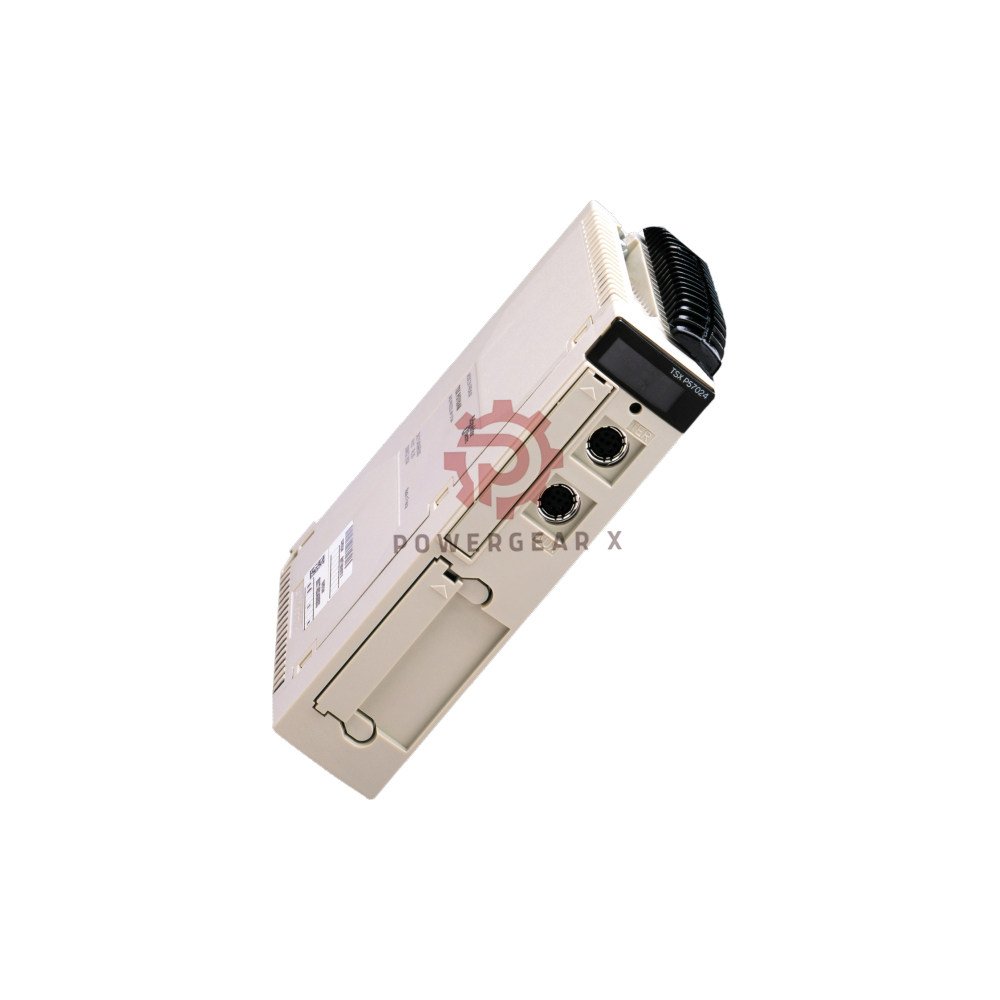

Name: TSXP57104M Schneider Electric TSX Micro PLC Controller Module
SKU: TSXP57104M
Price: 234.00 USD
Availability: InStock

Product details

TSXP57104M Schneider Electric TSX Micro Unity Processor

The TSXP57104M is a compact controller module from Schneider Electric. Moreover, it belongs to the TSX Micro PLCs series. This unit runs on the Modicon Premium Automation platform. In addition, it uses Unity Pro software. As a result, it fits many automation tasks.

Brand: Schneider Electric
- Series: TSX Micro PLCs
- Platform: Modicon Premium Automation
- Model: TSXP57104M
- UPC: 785901573869
- GTIN: 3595863808629
Type: Unity processor
- Software: Unity Pro
- Module format: Standard
- Weight: 0.38 kg

Memory And Data Storage

Internal RAM without PCMCIA: 96 KB program and data
Internal RAM with PCMCIA: 224 KB program
- Data memory: 96 KB
- PCMCIA card: 256 KB extra data
Object areas: 32 kB unlocated data
- Located bits: 4096 %Mi
- Constant words: 64 %KWi
- Internal words: 64 %MWi
- Function blocks: 64 kB DFB and EFB

Speed And Processing Power

Boolean time without card: 0.19 µs
Boolean time with card: 0.25 µs
- Word or fixed point without card: 0.25 µs
- Word or fixed point with card: 0.5 µs
- Floating point: 1.75 to 2.6 µs
Throughput without card: 3.71 Kinst/ms
- Pure Boolean: 4.76 Kinst/ms
Throughput with card: 2.1 Kinst/ms
- Pure Boolean: 3.1 Kinst/ms
System overhead: 0.3 ms fast task, 1 ms master task

Racks, Slots And I/O Capacity

Rack options: 2 racks with 12 slots
- Or: 4 racks with 4, 6, or 8 slots
- Slot count: 16, 24, or 32
Discrete I/O: 512 points
Analog I/O: 24 points
Specific channels: 8
Communication modules: 2

Tasks And Structure

Event tasks: 32
Master task: 1
Fast task: 1

Connection And Signalling

Integrated link: Non-isolated serial link
- Ports: 2 female mini DIN
- Rate: 19.2 kbit/s
LED RUN: Green, processor running
LED I/O: Red, module or config fault
LED ERR: Red, processor or system fault
LED TER: Yellow, terminal port activity
Current draw: 850 mA at 5 V DC

Environment And Protection

Operating temperature: 0 to 60°C
Storage temperature: -25 to 70°C
Relative humidity: 10 to 95% without condensation
Storage humidity: 5 to 95% without condensation
Operating altitude: 0 to 2000 m
Protective treatment: TC
IP degree: IP20
Pollution degree: 2
Marking: CE

Standards And Certifications

Standards: IEC 61131-2, UL 508, CSA C22.2
- Directives: 73/23/EEC, 89/336/EEC, 92/31/EEC, 93/68/EEC
- Hazardous areas: Class I Division 2 Groups A, B, C, D
Certifications: RMRS, GL, LR, ABS, BV, DNV, RINA

Weight And Packing

Net weight: 0.38 kg
- US net weight: 0.84 lb
Package 1 height: 5.5 cm
Package 1 width: 18 cm
Package 1 length: 26 cm
Package weight: 566 g
Packing units: 1 PCE

Expert Review

This processor suits plants that need fast logic and clear growth paths. Because the 0.19 µs Boolean time is quick, small tasks finish fast. In addition, the 96 KB base memory helps simple jobs. When a PCMCIA card is added, program space grows to 224 KB. As a result, larger code fits without a rack swap. The 512 discrete I/O and 24 analog I/O handle mixed signals. Therefore, the TSXP57104M works well in long-life panels.

Manager’s Insight

Buyers often want one CPU for many machine sizes. The TSXP57104M covers that need. For example, it supports 2 racks with 12 slots. Besides that, it supports 4 racks with 4, 6, or 8 slots. The 850 mA draw at 5 V DC is easy to plan. Since the unit uses Unity Pro, code reuse saves time. With CE marking and many marine certs, it fits global projects. For teams standardizing on TSX Micro PLCs, this CPU is a strong choice.

Best Fit Equipment And Applications

Installation Guide

Mount the unit in a Modicon Premium Automation rack.
Keep the cabinet clean and dry.
Use a 5 V DC supply with 850 mA headroom.
Fit the PCMCIA card before power-up.
Check the RUN, I/O, ERR, and TER LEDs.
Load code with Unity Pro.
Keep the IP20 unit inside a protected panel.
Review wiring before startup.

Setup And Maintenance Ease

Compatibility Notes

FAQ

Q: How much program space does this CPU give?
A: It gives 96 KB alone and 224 KB with a card.
Q: Can I add data storage later?
A: Yes, a PCMCIA card adds 256 KB.
Q: How fast is one Boolean step?
A: It runs in 0.19 µs without a card.
Q: Which software do I need?
A: You need Unity Pro.
Q: What do the front LEDs show?
A: They show RUN, I/O, ERR, and TER states.
Q: How many racks can it drive?
A: It drives 2 racks with 12 slots or 4 smaller racks.
Q: How fast do you ship this processor?
A: Orders ship in 12-24 hours.
Q: Which couriers do you use?
A: We use Fedex, UPS, and DHL.
Q: What warranty comes with it?
A: It includes a 12-month warranty.
Q: How do I pick the right CPU?
A: Match memory, I/O count, rack size, and software first.
