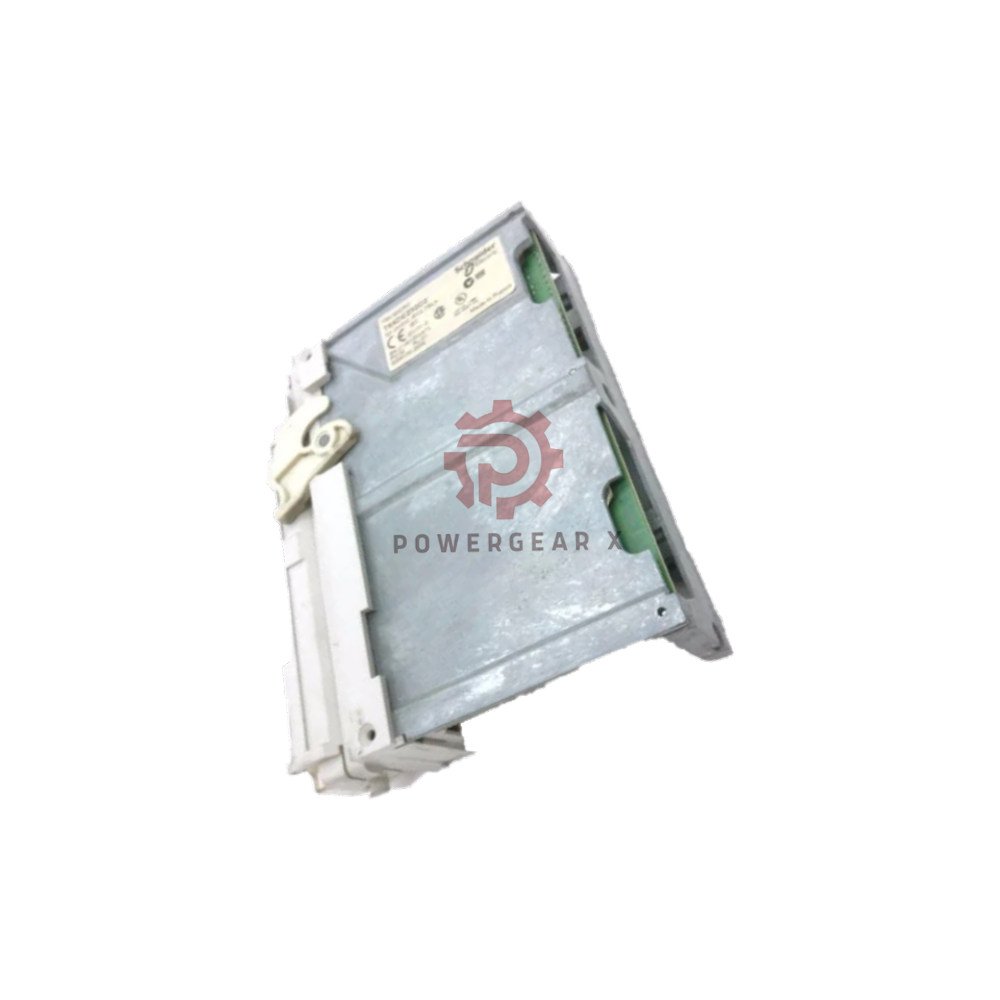

Name: TSXDEZ32D2 Schneider Electric 32 Discrete Input DC Module | Modicon TSX Micro
SKU: TSXDEZ32D2
Price: 234.00 USD
Availability: InStock

Product details

TSXDEZ32D2 | Schneider Electric | 32 Discrete Input DC Module

TSXDEZ32D2 is a high-density discrete input module from the Modicon TSX Micro automation platform. It brings 32 DC input points into one compact screw terminal block. The module reads 24 V DC signals from positive or negative logic. It suits machine control, packaging, material handling, and small process panels. This module is a practical choice for users who need many inputs in limited cabinet space.

Expert Review

The TSXDEZ32D2 earns respect for one simple reason. It packs 32 discrete inputs into a narrow module. The 7 mA input current is gentle on field devices. The 0.1 to 7.5 ms response time covers most factory tasks. The 1500 V AC isolation adds safety. This is not a flashy module. It is a reliable workhorse for TSX Micro users. The screw terminals save wiring time. The wide 19 to 30 V DC range tolerates real-world voltage drop. For legacy TSX Micro systems, this module remains a smart spare part.

Manager’s Insight

Stock this module if you support TSX Micro systems. Downtime costs more than the part. The TSXDEZ32D2 fits many existing panels. It accepts 2-wire and 3-wire sensors. It works with PNP and NPN devices. Keep one on the shelf. When a line stops, you replace the module in minutes. That speed protects your production schedule. The 12-month warranty and fast shipping make it an easy inventory item. Orders ship in 12 to 24 hours via FedEx, UPS, or DHL.

Technical Specifications

Brand: Schneider Electric
Model: TSXDEZ32D2
Series: Modicon TSX Micro
Module Type: Discrete input module
Input Count: 32 screw terminal block
Input Voltage: 24 V DC positive or negative
Voltage Range: 19 to 30 V DC
Input Current: 7 mA
State 1 Threshold: ≥ 11 V
State 0 Threshold: < 5 V
State 0 Current: ≤ 2 mA guaranteed
State 1 Current: ≥ 6 mA guaranteed
Input Impedance: 3.4 Ohm
Response Time: 0.1 to 7.5 ms (state 0 to 1)
Response Time: 0.1 to 7.5 ms (state 1 to 0)
Input Type: Current sink
Compatibility: 2/3-wire proximity sensors PNP/NPN
Isolation Voltage: 1500 V AC for 1 second
Current Consumption: 254 mA positive
Standards: IEC 1131-2 Type 2
Measurement Range: 19 to 30 V DC
Frequency Response: Not specified for this DC input module
Sensitivity: Responds to ≥ 11 V at state 1
Linearity: Not applicable for discrete input
Resolution: 1 bit per input point
Temperature Range: Refer to Schneider Electric datasheet
Environmental Tolerance: Designed for industrial control cabinets
Anti-interference: 1500 V AC isolation improves noise immunity

Installation Guide

Mount the module on a TSX Micro rack or panel.
Use the screw terminal block for field wiring.
Keep input wires away from high-voltage cables.
Check 24 V DC polarity before power-up.
Tighten screws to the torque in the manual.
Label each input for faster troubleshooting.

Commissioning and Maintenance

Verify 19 to 30 V DC at the field terminals.
Confirm state 0 is below 5 V.
Confirm state 1 is above 11 V.
Use the 0.1 to 7.5 ms response for timing checks.
Replace the module if an input stays stuck.
Keep spare terminals for quick swaps.

Compatibility Notes

Works with Modicon TSX Micro automation platform.
Accepts 2-wire and 3-wire proximity sensors.
Supports PNP and NPN sensor types.
Uses current sink input design.
Meets IEC 1131-2 Type 2 standard.

Certifications and Compliance

Standard: IEC 1131-2 Type 2
Isolation: 1500 V AC for 1 second
Product Range: Modicon TSX Micro
Category: 22556 – TSX MICRO, PL7 MICRO & ACCESS
GTIN: 00785901871095

Package Contents

1 x TSXDEZ32D2 discrete input module
1 x screw terminal block
1 x product documentation
Package weight: 2.21 lbs
Units per package: 1

Warranty and Shipping

12-month warranty included.
Ships in 12 to 24 hours.
Carriers: FedEx, UPS, DHL.
Tracking number provided after dispatch.
Contact sales@powergearx.com for stock checks.
Call or message +86 18030005825 for urgent orders.

Best Suited Devices and Applications

Machine control panels with many sensors.
Packaging lines using PNP or NPN sensors.
Material handling systems with 24 V DC signals.
Small process skids with TSX Micro PLCs.
Retrofit projects that need 32 inputs in one slot.
Factory automation cabinets with limited space.

FAQ

Q: What is the input voltage for this module?

A: It uses 24 V DC and accepts 19 to 30 V DC.

Q: How many inputs does the TSXDEZ32D2 have?

A: It has 32 discrete inputs on a screw terminal block.

Q: Does it work with NPN sensors?

A: Yes. It supports PNP and NPN proximity sensors.

Q: What is the response time?

A: The response time is 0.1 to 7.5 ms for both state changes.

Q: Is isolation included?

A: Yes. It provides 1500 V AC isolation for 1 second.

Q: Can I use it with a TSX Micro PLC?

A: Yes. It belongs to the Modicon TSX Micro platform.

Q: What is the input current?

A: Each input draws about 7 mA.

Q: How fast do you ship?

A: We ship in 12 to 24 hours with FedEx, UPS, or DHL.

Q: What warranty do you offer?

A: We offer a 12-month warranty.

Q: My old module failed. How do I choose a replacement?

A: Match the model TSXDEZ32D2, input count, and voltage. Check the connector type. Confirm your sensor type. Then order the same model for a direct swap.

Q: Can I mix PNP and NPN sensors on one module?

A: Yes. The module accepts both types. But keep wiring consistent per group. Follow your panel drawing.

Q: What should I check if an input does not turn on?

A: Measure voltage at the terminal. State 1 needs at least 11 V. Check sensor power. Check wiring polarity. Then test another input point.
