TSXAEY1614 Schneider Analog Input Module | TSX Micro PLC

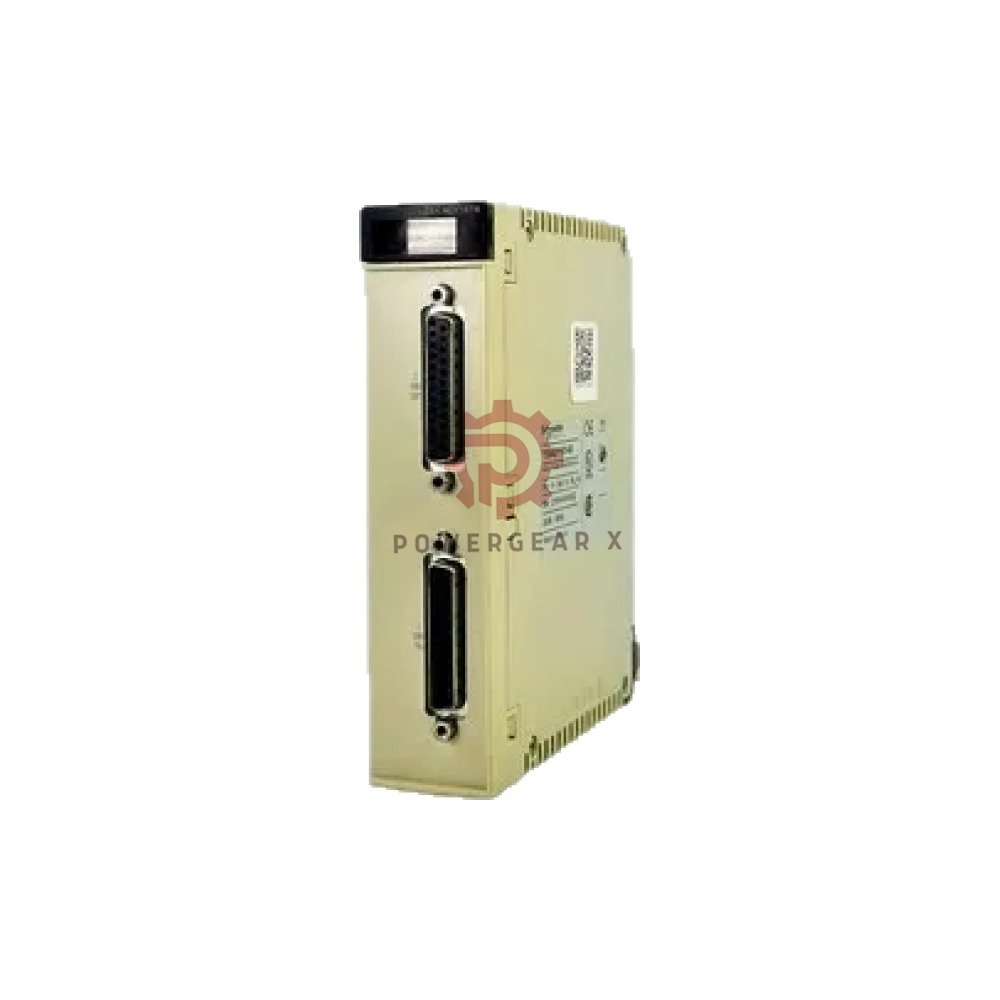

TSXAEY1614 Schneider Electric TSX Micro Analog Input Module

The TSXAEY1614 is an analog input module from Schneider Electric. Moreover, it belongs to the TSX Micro PLCs series. This unit offers 16 analog input channels. In addition, it reads thermocouples and small voltage signals. With 16-bit conversion, it fits precise industrial measurement tasks.

• Brand: Schneider Electric
  • Series: TSX Micro PLCs
  • Platform: Modicon Premium Automation
  • Model: TSXAEY1614
  • EAN: 3389110876321
• Type: Analog input module
  • Channels: 16 high-level inputs
  • Conversion: 16 bits
  • Read cycle: 70 ms per channel

Input Types And Measurement Range

• Thermocouple types: B, E, J, K, L, N, R, S, T, U
  • Thermocouple E error: 0.8°C at 25°C
  • Thermocouple J error: 0.9°C at 25°C
  • Thermocouple K error: 1°C at 25°C
  • Thermocouple T error: 1°C at 25°C
  • Thermocouple N error: 1.1°C at 25°C
  • Thermocouple R error: 2.1°C at 25°C
  • Thermocouple S error: 2.2°C at 25°C
  • Thermocouple B error: 2.5°C at 25°C
• Voltage input: +/- 80 mV

Isolation, Protection And Electrical Data

• Isolation: 1000 Vrms
  • Between channels and bus: 1000 Vrms
  • Between channels and ground: 1000 Vrms
• Common mode: 250 V AC or 280 V AC
  • Between channels and earth: 250 V DC
• Overvoltage protection: -15 to 15 V at state 0
  • At state 1: -30 to 30 V
• Electrical connection: 2 connectors SUB-D 25
• Current consumption: 300 mA at 5 V DC
• Module format: Standard

Environment And Protection

• Operating temperature: 0 to 60°C
• Storage temperature: -25 to 70°C
• Relative humidity: 10 to 95% without condensation
• Storage humidity: 5 to 95% without condensation
• Operating altitude: 0 to 2000 m
• Protective treatment: TC
• IP degree: IP20
• Pollution degree: 2
• Marking: CE

Standards And Certifications

• Standards: NFC 42-330, IEC 1131, DIN 43710, IEC 751, DIN 43760, IEC 584
• Certifications: DNV, RMRS, LR, ABS, RINA, BV, GL
• Country of origin: FR
• GTIN: 3389110876321

Weight, Size And Packing

• Net weight: 0.35 kg
  • US net weight: 0.77 lb
• Package 1 height: 5.5 cm
• Package 1 width: 18.0 cm
• Package 1 length: 26.0 cm
• Package weight: 447.0 g
• Packing units: 1 PCE

Expert Review

Plants that need stable analog reads often choose the TSXAEY1614. It handles many thermocouple types. Also, it reads small voltage signals. The 16-bit design helps catch small changes. Because of the 70 ms cycle, data stays fresh. The 1000 Vrms isolation adds safety. Since the body is IP20, it suits clean cabinets. The SUB-D 25 ports make wiring clear. As a result, this module works well in long-term monitoring jobs.

Manager’s Insight

Buyers often need one module for mixed sensors. The TSXAEY1614 meets that need. For example, it supports 10 thermocouple types. Besides that, it reads +/- 80 mV signals. The 16 channels save rack space. In addition, the 16-bit output helps cut noise issues. The 0 to 60°C range fits most rooms. Therefore, for teams using TSX Micro PLCs, this unit is a smart pick.

Best Fit Equipment And Applications

• Temperature monitoring skids
• Heat treatment furnaces
• Food processing lines
• Pharmaceutical cabinets
• Boiler control panels
• Plastic molding machines
• Test benches
• OEM analog panels

Installation Guide

• Mount the module in a TSX Micro PLCs rack.
• Keep the cabinet clean and dry.
• Use the 2 SUB-D 25 ports for wiring.
• Match each channel to its sensor type.
• Check 5 V DC supply current.
• Confirm 300 mA draw per module.
• Keep the IP20 unit inside a protected panel.
• Review wiring before power-up.

Setup And Maintenance Ease

• 16 channels cut module count.
• 16-bit reads reduce setup time.
• SUB-D 25 ports speed wiring.
• 70 ms cycle helps quick checks.
• 1000 Vrms isolation lowers risk.
• CE marking eases system review.
• IP20 body fits standard panels.
• Routine checks help keep data stable.

Compatibility Notes

• Works with TSX Micro PLCs.
• Fits Modicon Premium Automation.
• Reads B, E, J, K, L, N, R, S, T, U thermocouples.
• Reads +/- 80 mV voltage signals.
• Uses 2 SUB-D 25 connectors.
• Follows IEC 584 and IEC 751.
• Carries DNV, ABS, LR, BV, GL marks.
• Fits standard module slots.

FAQ

• Q: How many sensors can this module read?
  A: It reads up to 16 sensors at once.
• Q: Does it need a special power line?
  A: It needs 300 mA at 5 V DC from the rack.
• Q: Can it read a type B thermocouple?
  A: Yes, it supports type B and many others.
• Q: What is the smallest voltage it reads?
  A: It reads down to +/- 80 mV.
• Q: How do I know it fits my rack?
  A: Check that your rack uses TSX Micro PLCs and standard slots.
• Q: What if my panel gets damp?
  A: Keep it dry. The unit has an IP20 rating.
• Q: How fast do you ship this module?
  A: Orders ship in 12-24 hours.
• Q: Which couriers do you use?
  A: We use Fedex, UPS, and DHL.
• Q: What warranty comes with it?
  A: It includes a 12-month warranty.
• Q: How do I pick the right analog module?
  A: Match sensor type, channel count, and rack series first.

Buying Guide

• List your sensor types. This unit covers 10 thermocouple types.
• Count your channels. It gives 16 inputs.
• Check your rack. It fits TSX Micro PLCs.
• Review panel space. It uses a standard module format.
• Confirm your power. It needs 5 V DC.
• Check room heat. It runs from 0 to 60°C.
• Plan for noise. The 16-bit design helps.
• Choose this model for mixed thermocouple and mV jobs.

Warranty And Shipping

• 12-month warranty included.
• Ships in 12-24 hours.
• Courier options: Fedex, UPS, DHL.
• Tracking details shared after dispatch.
• Packing aims to protect the unit in transit.
